12V Steam Solenoid Valve High Temp Durable Shutoff Structure B Class Isulation Grade

Price Negotiable
Price: Negotiable
MOQ: 1 Set/Sets
Delivery Time: Negotiable
Brand: AFK
Product Description

12V Steam Solenoid Valve High Temperature Shut Off 26W B Class Isulation Grade



Technical Parameters



Maximum working pressure 1.6Mpa
Operating pressure range 0.2-1.6Mpa
Media temperature <20cst liquid gas steam
Operation Pilot type
Voltage AC:380V 220V 36V/50Hz DC:24V
Isulation grade B class
The power supply range -15%~+10%
Power  26W
Response time open <=2 second close<=3 second
Install way Media flow direction and the no the arrow consistent.The coil vertically upward, the working media clean and no particle impurities

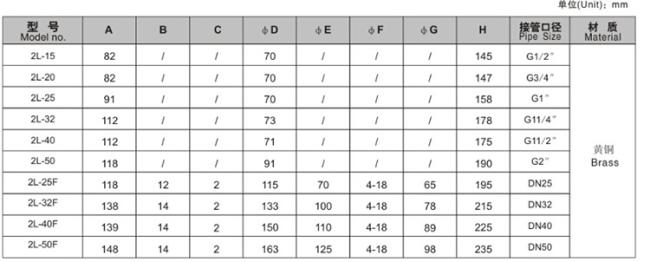

Structure Parameter

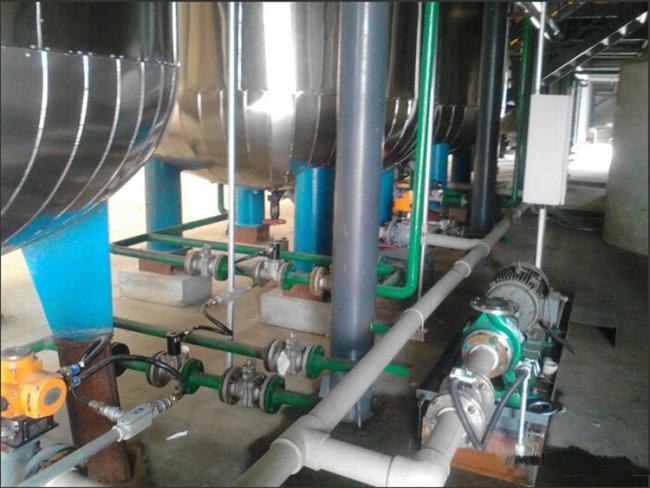

Usage
