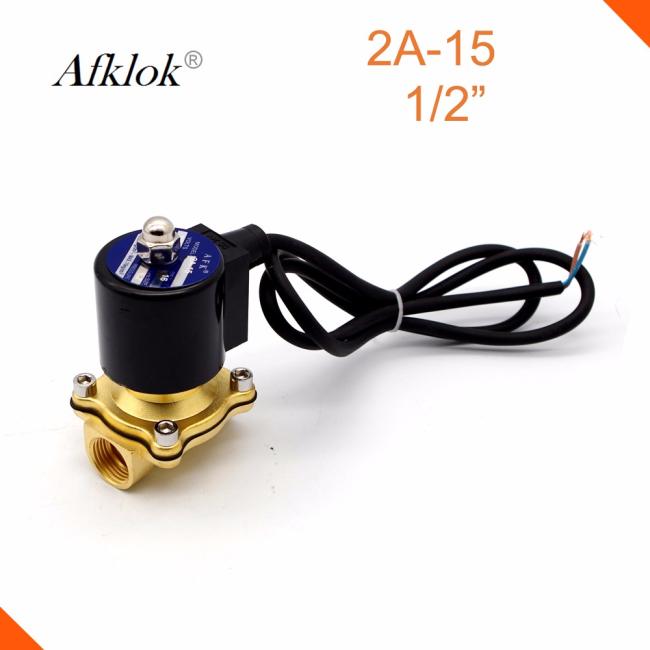

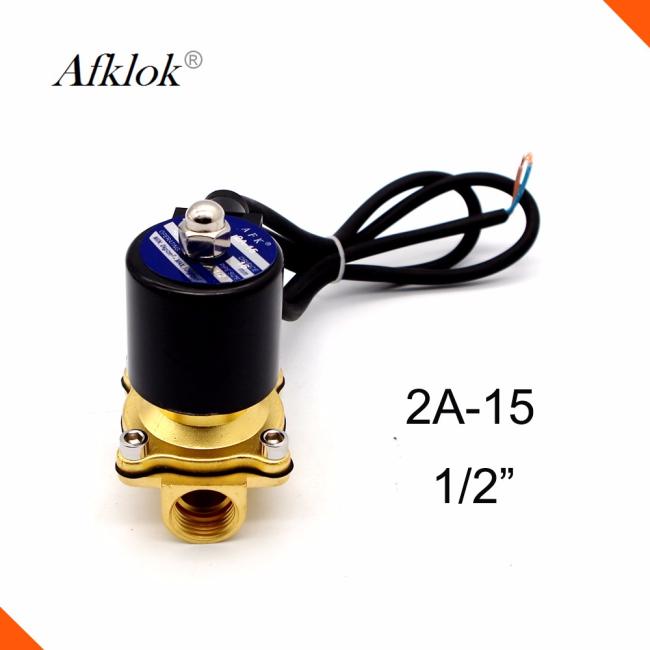

Electric Water Valve Waterproof , Stainless Steel Solenoid Valves For Water
Product Specification
1.Model: 2A-15
2.Size: 1/2 inch
3.Media: Water
4.Connection: G thread
5.Working pressure: 1Mpa
6.Voltage: AC220V, AC110V, AC24V, DC24V, DC12V
7.Ambient temperature: -10℃~50℃
8.Media temperature: 0℃~60℃
9.Insulation class: IP68
Purpose
2A series solenoid valve is the automatic control system of common switch element, as the core of the musical fountain control equipment. Especially suitable for running spring, spring of water control.
Principles
2A series direct acting solenoid valve with a media pressure working. It adopts diaphragm structure with the opening and closing speed.stable performance, convenient application, high reliability, long service life. This valve anti-pollution ability, can be used in river and various artificial water area for a long period. It excellent performance in the domestic leading level.
|
Model
|
A
|
B
|
C
|
Size
|
Material
|
|
2A-15
|
62
|
55
|
102
|
G1/2"
|
Brass
|
|
2A-20
|
67
|
55
|
113
|
G3/4"
|
|
|
2A-25
|
86
|
73
|
117
|
G1"
|
|
|
2A-32
|
90
|
77
|
130
|
G1 1/4"
|
|
|
2A-40
|
106
|
67
|
164
|
G1 1/2"
|
|
|
2A-50
|
123
|
93
|
176
|
G2"
|
|
|
2A-15B
|
69
|
57
|
107
|
G1/2"
|
Stainless steel
|
|
2A-20B
|
73
|
57
|
115
|
G3/4"
|
|
|
2A-25B
|
98
|
57
|
125
|
G1"
|
|
|
2A-32B
|
115
|
87
|
153
|
G1 1/4"
|
|
|
2A-40B
|
121
|
94
|
162
|
G1 1/2"
|
|
|
2A-50B
|
168
|
123
|
187
|
G2"
|
|
Packaging
|
|
|
Size
|
17cm*17cm*17cm
|
|
Weight
|
Different size has different weight
|
|
Packaging Details
|
The normal package is wooden box(Size: L*W*H). Or according to customers special request.
|
