Irrigation 220VAC 12VDC 24VDC 24VAC 110VAC DC Latching 2 inch Water Solenoid Valve
Price:
Negotiable
MOQ:
10-49 Pieces
Delivery Time:
Negotiable
Brand:
AFK
Product Description
Irrigation 220VAC 12VDC 24VDC 24VAC 110VAC DC Latching 2 inch Water Solenoid Valve
it's currently one of the most widely used solenoid valve in garden irrigation
Applied in large area of lawn, Gym, agriculture, industrial dedusting and water treatment equipment
|
TECHNICAL PARAMETERS
|
|
|
material
|
nylon plastic body, NBR seal
|
|
Fluid
|
water
|
|
Fluid temperature
|
≤43°C
|
|

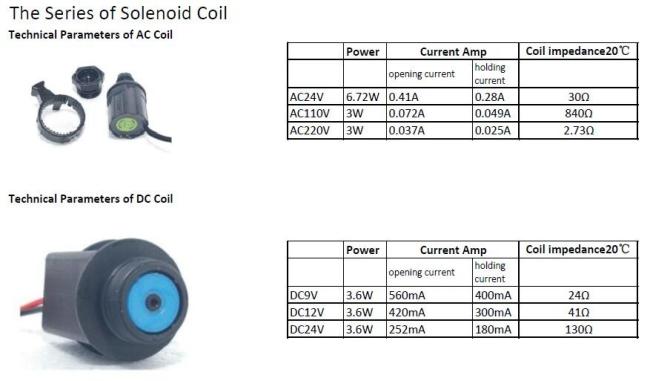

Service voltage
|
6-20VDC(latching type coil), 24VAC, 24VDC, 110VAC, 220VAC
|
|
Pulse width
|
20-500mSec (only for latching type)
|
|
Coil resistance
|
6 Ω
|
|
Capacitance
|
4700uF
|
|
Coil inductance
|
12mH
|
|
Connection
|
G(BSP) female thread is regular, special order for NPT(3/4" and 1")
|
|
|
075D: 3/4", 20mm (BSP or NPT female)
100D:1", 25mm (BSP or NPT female ) 100P:1", 25mm (BSP female) 150P:1-1/2"(1.5"), 40mm (BSP female) 200P:2", 50mm (BSP female) 300P:3", 80mm (BSP female, male, flange) 400P:4", 100mm (BSP female, male, flange) |
|
|
3/4" and 1": 1-10bar
1.5"and 2": 1-10.4bar 3"and 4": 0.7-14bar |
|
|
3/4": 5 m³/h
1": 9 m³/h 1.5"-2": 0.45-34.05 m³/h 3"-4": 1.1-70 m³/h |
|
Operation mode
|
valve element lock position,valve open, release position, valve close.
|
Detailed Images

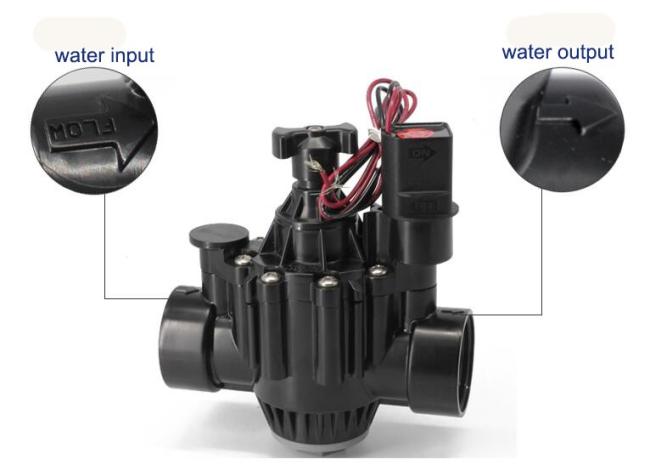

200P solenoid valve
1. Pilot operating construction, valve body in nylon material
2. double filter prevent Blocking electromagnetic iron core
3.Totally Closed electromagnetic coil, waterproof
4.having slow closed function, preveting water hammer, damaging system

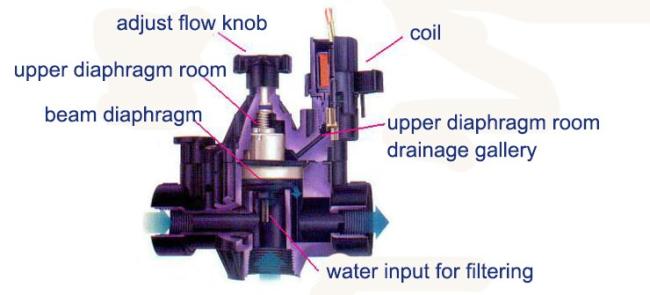

200P solenoid valve
1.Straight valve and Angle valves to be in harmony an organic whole
2.with adjusting knob (adjusting pressure)
3.Dimesion:235 X 127 X 254mm

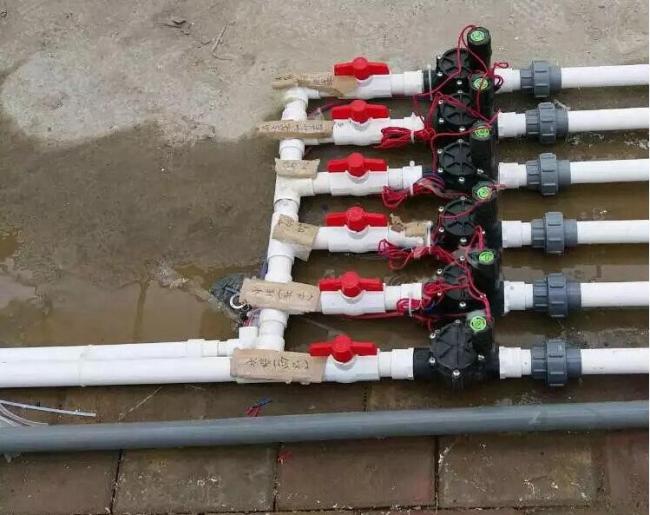

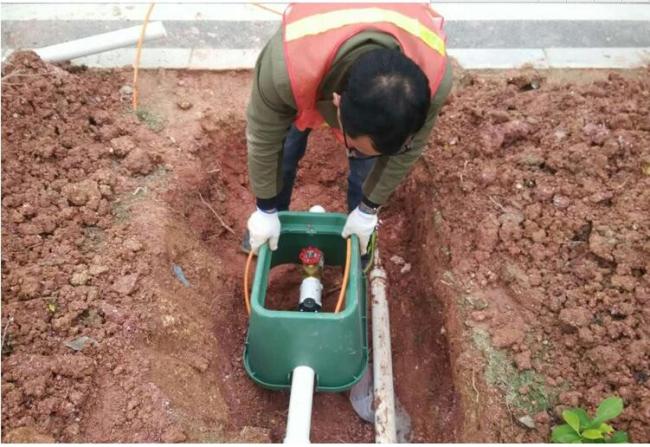

Application
