Nylon 1 inch Plastic Irrigation 9v Water Control Valves DC Latching
Price:
Negotiable
MOQ:
10-49 Pieces
Delivery Time:
Negotiable
Brand:
AFK
Product Description
Nylon 1 inch Plastic Irrigation 9v Water Control Valves DC Latching
it's currently one of the most widely used solenoid valve in garden irrigation
Applied in large area of lawn, Gym, agriculture, industrial dedusting and water treatment equipment
|
TECHNICAL PARAMETERS
|
|
|
material
|
nylon plastic body, NBR seal
|
|
Fluid
|
water
|
|
Fluid temperature
|
≤43°C
|
|
Service voltage
|
6-20VDC(latching type coil), 24VAC, 24VDC, 110VAC, 220VAC
|
|
Pulse width
|
20-500mSec (only for latching type)
|
|
Coil resistance
|
6 Ω
|
|
Capacitance
|
4700uF
|
|
Coil inductance
|
12mH
|
|
Connection
|
G(BSP) female thread is regular, special order for NPT(3/4" and 1")
|
|
|
075D: 3/4", 20mm (BSP or NPT female)
100D:1", 25mm (BSP or NPT female ) 100P:1", 25mm (BSP female) 150P:1-1/2"(1.5"), 40mm (BSP female) 200P:2", 50mm (BSP female) 300P:3", 80mm (BSP female, male, flange) 400P:4", 100mm (BSP female, male, flange) |
|
|
3/4" and 1": 1-10bar
1.5"and 2": 1-10.4bar 3"and 4": 0.7-14bar |
|
|
3/4": 5 m³/h
1": 9 m³/h 1.5"-2": 0.45-34.05 m³/h 3"-4": 1.1-70 m³/h |
|
Operation mode
|
valve element lock position,valve open, release position, valve close.
|

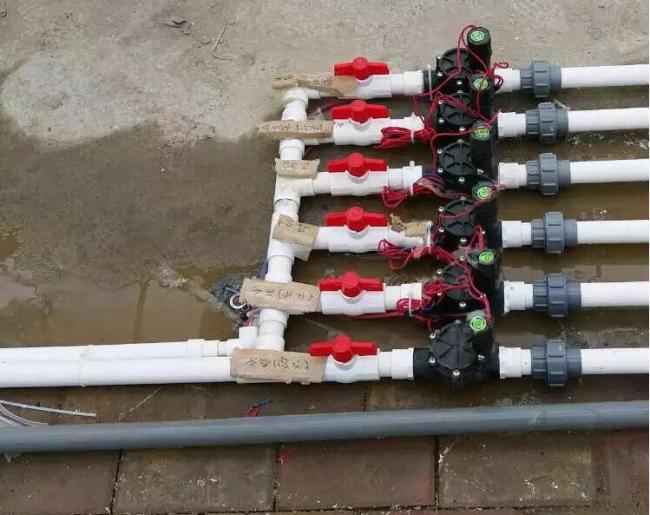

Application
