Flange Connect 4 inch Irrigation Water Solenoid Valve 24V AC
Characteristic
2. Double filter to prevent clogging eletromagnetic core.
3.Fully enclosed eletromagnrtic coil, waterproof.
4.A slow off function to prevent water harmmer, damage the system.
Products Feature:

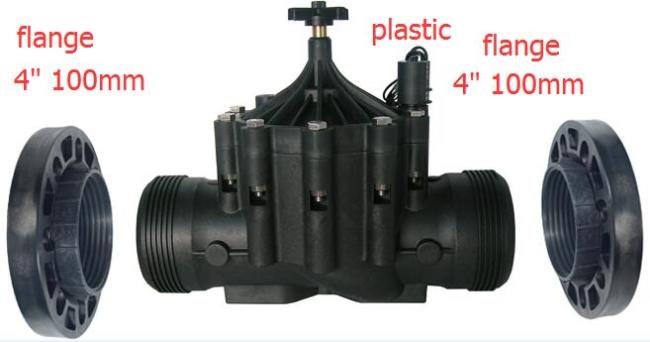

1.Connection : 4" Flange
2.Water Pressure: 9-150 psi
3.Water Flow: 60 m³/h 700gpm
4.Voltage: 24VAC NO (Normal) NO.NC,Latch,Other Voltages we can supply
Application:
1. Irrigation Systems (Field Valves)
2. Anti-Frost Irrigation Systems With Underground Valves.
3. Sewage Systems
4. Water Supply Systems
5. Municipal Water Systems
6. Corrosive Water Systems For Industry And Agriculture
7. Landscaping
8. Green Houses
9. Filtration
Features:
1.The unique valve construction and smooth interior allows for
excellent hydraulic performance.
2.The valve are designed to withstand various pressures whether
they are installed above ground or underground.
3.Valve installation is simple that no expertise or special tools are
required.
4.Cost-saving operation based on low inrush current solenoids
5.The Valve are not pained so are suitable for drinking water use.
|
DESIGN FEATURES
|
|
|
1. Irrigation solenoid valve
|
|
|
2. Fit for stadium, farm, industrial dust and water treatment equipment.
|
|
|
3. Normally closed.
|
|
|
4.Pipe size 4".
|
|
|
5. Service voltage : DC latching/AC110V/AC220V
/AC24V/DC12V/DC24V/DC9V
|
|
|
6.Thread connnector : G . Flange
|
|
|
7.Material-body valve -nylon
|
