800Kpa Irrigation Solenoid Valve AC220 AC110V AC24V With Flange Connector
|
DESIGN FEATURES
|
|
|
1. Irrigation solenoid valve
|
|
|
2. Fit for stadium, farm, industrial dust and water treatment equipment.
|
|
|
3. Normally closed.
|
|
|
4.Pipe size 3".
|
|
|
5. Service voltage : AC220, AC110V, AC24V
|
|
|
6.Thread connnector :G, male, flange
|
|
|
7.Material-body valve -nylon
|

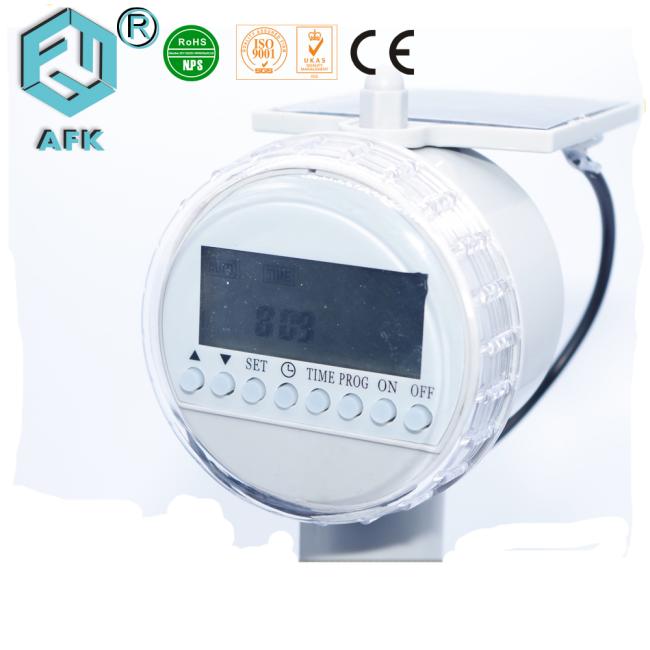

Timer parameter
* Model: P9
* Power: AAA dry battery rechargeable
1.5 V rechargeable battery+solar powered
* Irrigation time: Min: one minute
Max. 9 hours and 59 mins
* Irrigation frequency: Min:1 time/day
Max: 16 times/day
Max: 1 time/30 days ( Arbitrarily set )
* Working pressure: 0-800 KPA
* Working temperature: 0-40℃
* Programs: Automatic/ Manual ( Arbitrarily set )
Model: 300PH-1
Pressure: 0.1~1.04Mpa
connect size: 3"
Thread: G
Coil: AC220, AC110V, AC24V, 50/60HZ, 10VA
Orifice size: 50mm
Self-holding type coil: DC6-20V, Pulse Width (20-500mSec)
working model(+red&-black valve open)
(-red&-black valve closed)
