Filled Oil Dry Type Back Entry Bottom Connection High Gas Pressure est Gauge
Price:
Negotiable
MOQ:
>=10 Pieces
Delivery Time:
Negotiable
Brand:
AFK
Product Description
Filled Oil Dry Type Back Entry Bottom Connection High Gas Pressure est Gauge
Product Description
|
Case Size (dial)
|
40, 50, 63, 100, 150 (mm)
|
|
Accuracy
|
±1%, ±1.5%,
|
|
Case Material
|
SS304
|
|
|
0~0.1Mpa~100Mpa
|
|
-0.1~0Mpa (Vacuum)
|
|
|
-0.1- (Compound)
|
|
|
Bourdon Material
|
SS316
|
|
Movement Material
|
SS316
|
|
Connection Material
|
SS304, option ss316
|
|
End Connection
|
M20*1.5, 1/2NPT
|
|
Dial
|
Aluminium (white with black font)
|
|
Ambient temperature
|
-40-70℃
|
|
Ring Material
|
Stainless Steel
|
|
Mounting
|
Bottom mounting
|
|
Back entry mounting
|
|
|
Back connection flush mounting
|
Products Show

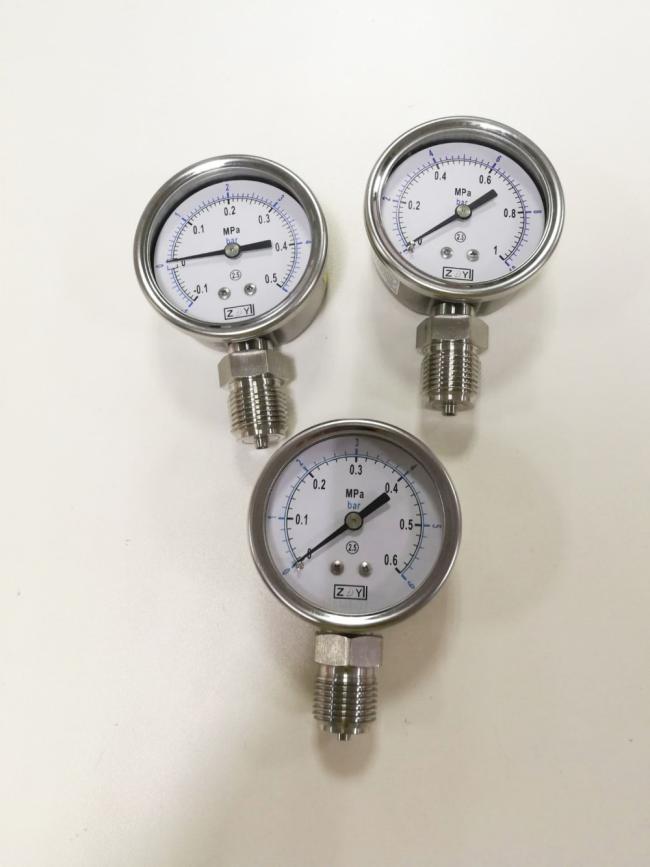

1.Bottom Connection.
End connection:PF1/2" (other connections are also available)
Scale unit: PSI/bar

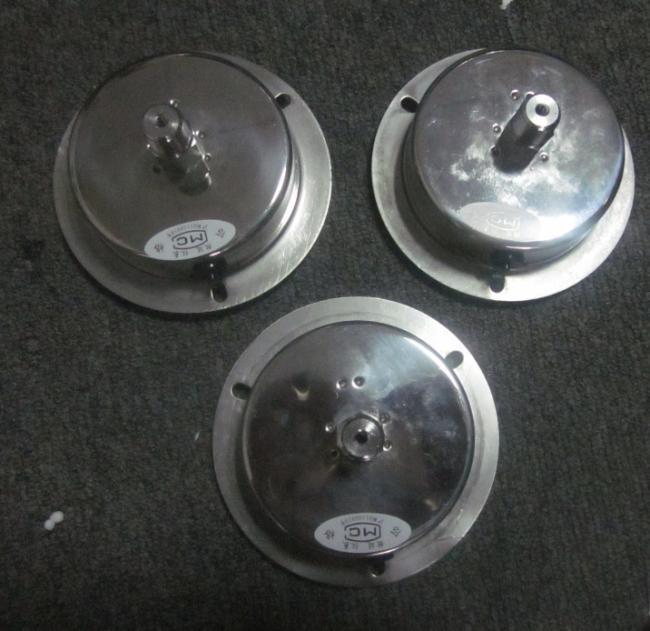

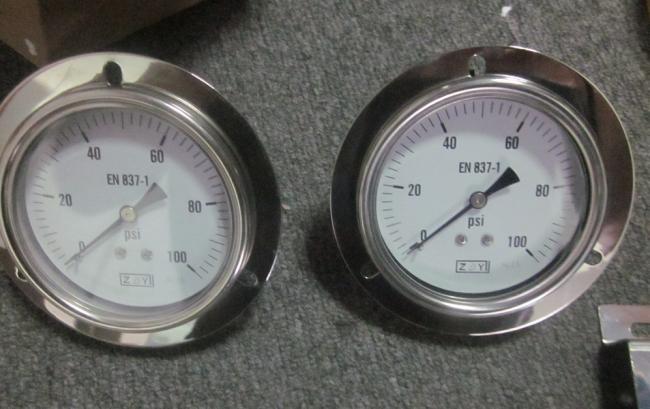

2. Back connection flush mounting
End connection:1/2NPT M (other connections are also available)
Scale unit: PSI (other units are also available)
3. Back Entry Mounting
End connection:1/2NPT M (other connections are also available)
Scale unit: Mbar/imH2O(other units are also available)
