Water 1/4 High Pressure Gas Hose Connector , PH Stainless Steel Weld Fittings
Price:
Negotiable
MOQ:
10 Set/Sets
Delivery Time:
Negotiable
Brand:
AFK
Product Description
stainless steel water 1/4 high pressure gas hose connector
Technical Parameter:
| Model | Screw size | Dimensions(mm) | Weight(g) | ||||
| L | Dmax | d | Steel | Brass | Stainless Steel | ||
| PH-21 | 1/4"hose | 58 | Φ16 | Φ4 | 25 | 27 | 25 |
| PH-22 | 5/16"hose | 58 | Φ16 | Φ5 | 27 | 29 | 26 |
| PH-23 | 3/8"hose | 62 | Φ16 | Φ7.5 | 35 | 38 | 31 |
| PH-24 | 1/2''hose | 64 | Φ18 | Φ9 | 50 | 55 | 48 |
| PH-44 | 1/2"hose | 69 | Φ22 | Φ9 | 70 | 80 | 75 |
| PH-46 | 3/4"hose | 74 | Φ23 | Φ12.5 | 122 | 132 | 235 |
| PH-48 | 1"hose | 78 | Φ30 | Φ7 | 145 | 165 | 148 |
Main Features:
- Robust in Construction
- High flow capacity
- Positive valve stop
- Captive wall seal ensures leak free sealing, minimize the seal washout or damage from high velocity fluid acceleration.
- Seal with PTFE back-up rings designed to ensure reliable and leak free sealing even in high pressure applications.
- Ball Locking mechanism provides safe and reliable connections.

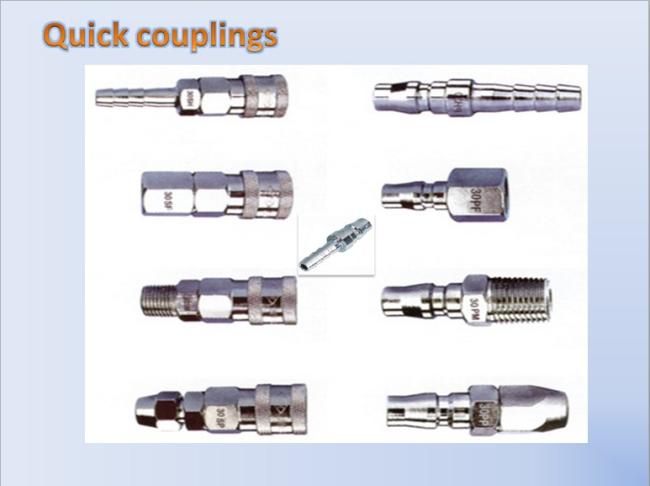

Picture Shows
