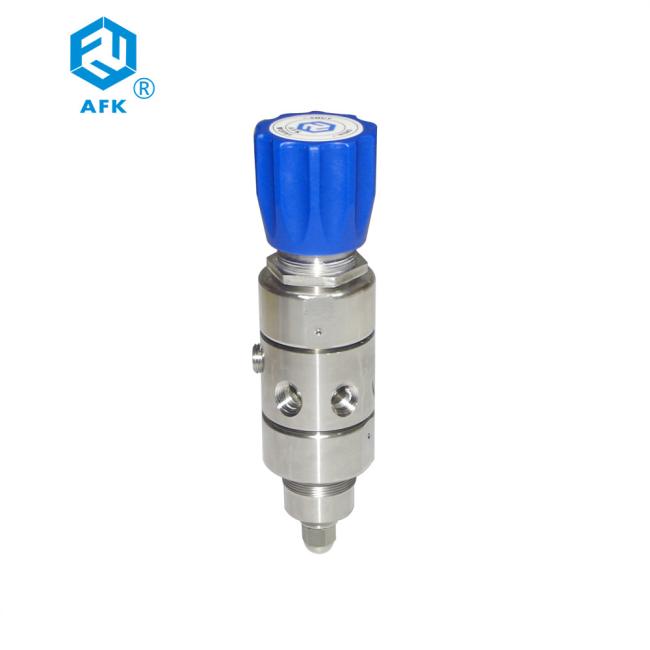

Double Stage Stainless Steel Pressure Regulator 1/4" NPT Inlet 3000 Psi Outlet 25 Psi
Price:
Negotiable
MOQ:
1
Delivery Time:
5-8days
Brand:
AFK
Product Description
Feature:
- five hole design of the body
- double-stage pressure-reducing structure
- Metal-to-metal diaphragm seal
- body thread: input and output connection 1/4” NPT(F)
- easy to clean internal structure
- filter element installed internally
- panel mounting and wall mounting available
- optional outlet: needle valve, diaphragm valve
Specification:
- Maximum inlet pressure: 3000, 500psig
- output pressure:0~25, 0~50, 0~100, 0~250psig
- safety testing pressure: 1.5 times of maximum inlet pressure
- working temperature: -40~+165 deg F(-40~+74 deg C)
- leakage rate: 2×10-8 atm cc/sec He
- CV value=0.06
Application:
- laboratory
- gas chromatography
- gas lasers
- gas bus-bar
- petrochemical industry
- testing equipment
Ordering Information
| R31 | L | B | G | G | 00 | 00 | 02 | P |
| Item | Body Materia | Body Hole | Inlet pressure | Outlet pressure | Pressure gauge | Inlet size | Outlet size | Options |
| R31 | L:316 | M | D:3000psi | G:0-250psig | G:MPa gauge | 00:1/4 NPT(F) | 00:1/4 NPT(F) | P:panel mounting |
| B:Brass | Q | F:500psi | I:0_100psig | P:Psig/bar gauge | 01:1/4 NPT(M) | 01:1/4 NPT(M) | R:With relief valve | |
| K:0-50psig | W:No gauge | 23:CGA330 | 10:1/8 OD | N:With needle valve | ||||
| L:0-25psig | 24:CGA350 | 11:1/4 OD | D:With diaphragm valve | |||||
| Q:30 Hg Vac-30psig | 27:CGA580 | 12:3/8OD | ||||||
| S:30 Hg Vac-60psig | 28:CGA660 | 15:6mm OD | ||||||
| T:30 Hg Vac-100psig | 30:CGA590 | 16:8mm OD | ||||||
| U:30 Hg Vac-200psig | 52:G5/8-RH(F) | 74:M8X1-RH(M) | ||||||
| 63:W21.8-14H(F) | ||||||||
| 64:W21.8-14LH(F) |
Company profile

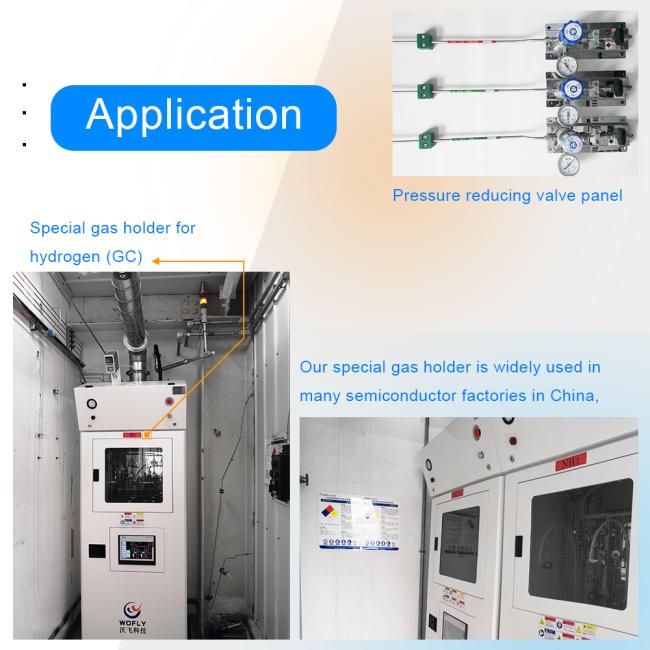

Application Area
