Single Stage Stainless Steel Pressure Regulator , High Pressure Air Regulator Valve
Product Description:
Main Features

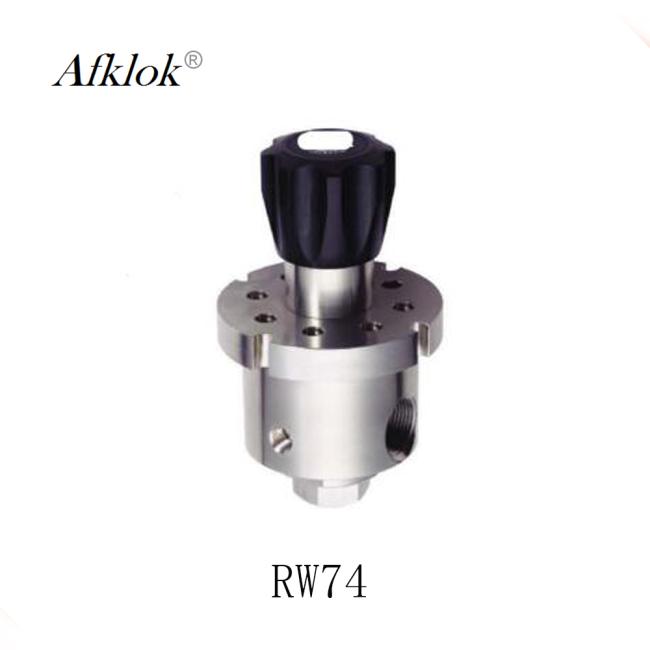

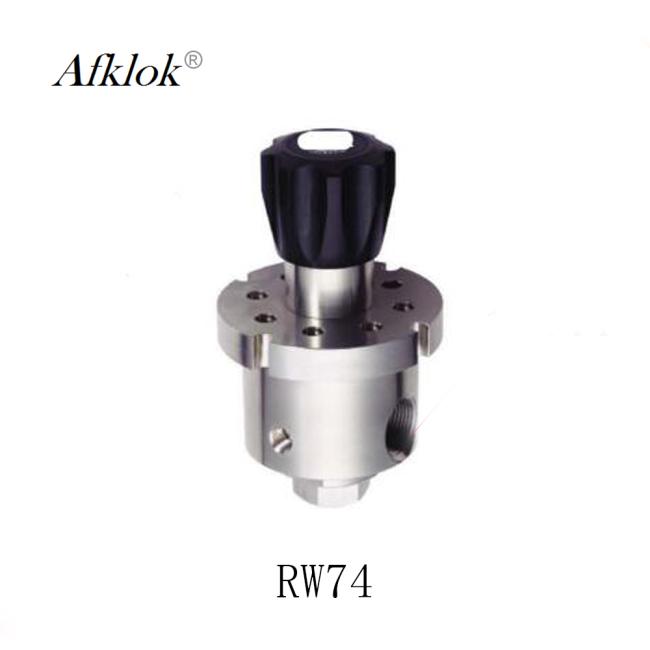

Name: RW74 Back pressure regulator
Brand: AFK
Original: China
RW74 Series Back pressure Regulator is a diaphragm-sensed single-stage "Industrial-style" regulator,
designed for gas or liquid application where ultra high flow is desired.
Available in nickel-plated brass and stainless steel.
Material
*Body: Brass, 316L
*Seat: Neoprene
*Diaphragm: Neoprene
Typical applications
*Chromatography
*Laboratories
*Petrochemical industry
*Power plant equipments
Features
*Single stage Configuration
*Pressure gauge/Safety valve port size: 1/4" NPT (F)
*Inlet/outlet port size: 1" NPT (F)
*2" Pressure gauge
*Proof pressure: 1.5 times maximum inlet pressure
*Temperature Range: -40℉ to 160℉ (-40℃ to 74℃)
*Leak Rate: 2 X 10-8 atm. cc/sec He
*Maximum CV: 5.2
eoDetailed Images
Certifications

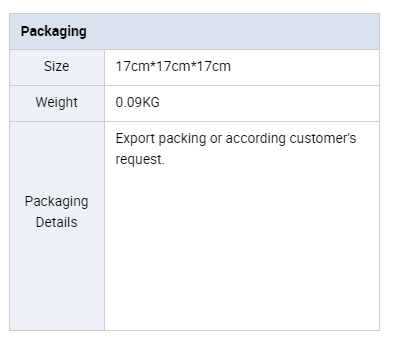

Packing & Delivery
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: No, we not offer the sample for free charge and also not pay the cost of freight.
Q: What is your payment ?
A: T/T , PayPal , Western Union
