High Pressure Air Compressor Check Valve Stainless Steel One Way Fuel Check Valve 6mm OD
Place of Origin:Guangdong, China Brand Name:AFK
Model Number:CV Application:General
Material:Stainless Steel, SS316 Temperature of Media:Normal Temperature
Pressure:High Pressure, 3000psi Power:Manual
Media:Gas Port Size:Standard
Structure:Check Standard or Nonstandard:Standard
Connection:Ferrule OD Supply Ability:10000 Set/Sets per Week
Packaging Details
Export packing
Port:Shenzhen
Lead Time :
| Quantity(Sets) | 1 - 10 | >10 |
| Est. Time(days) | 5 | To be negotiated |
Stainless Steel 316 Air Compressor One Way Check Valve
High Pressure No Return Valve
*Product Specification
*Name: Check valve
*Size: 6mm 8mm 10mm 1/8" 1/4" 3/8" 1/2"
*Connection: Ferrule OD
*Pressure: 1000 Psi, 3000psi
*Material: Stainless steel 316
|

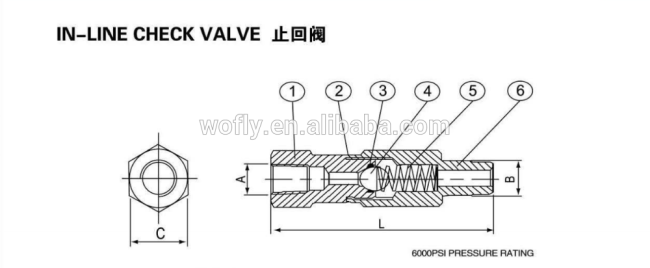

Specification
|
|||
|
Number
|
Part
|
SS316 VALVE
|
Brass valve
|
|
1
|
Valve body(Inlet)
|
SS316
|
Brass
|
|
2
|
Packing
|
SS316
|
Brass
|
|
3
|
O-Ring
|
fluororubber/BUNA
|
fluororubber/BUNA
|
|
4
|
Ball
|
SS316
|
Brass
|
|
5
|
Spring
|
SS316
|
Brass
|
|
6
|
Valve Body(Outlet)
|
SS316
|
Brass
|
|
Dimensions(inch)
|
|||||
|
Name
|
Size
|
A-PT/NPT/G
|
B-PT/NPT/G
|
C-(mm)
|
D(mm)
|
|
CV-01
|
1/8"
|
1/8"
|
1/8"
|
19
|
74
|
|
CV-02
|
1/4"
|
1/4"
|
1/4"
|
19
|
74
|
|
CV-03
|
3/8"
|
3/8"
|
3/8"
|
22
|
74
|
|
CV-04
|
1/2"
|
1/2"
|
1/2"
|
27
|
75.5
|
|
CV-06
|
3/4"
|
3/4"
|
3/4"
|
35
|
83.5
|
|
CV-8
|
1"
|
1"
|
1"
|
41
|
87.5
|
|
Can be customized according to customer's' requirements
|
|||||

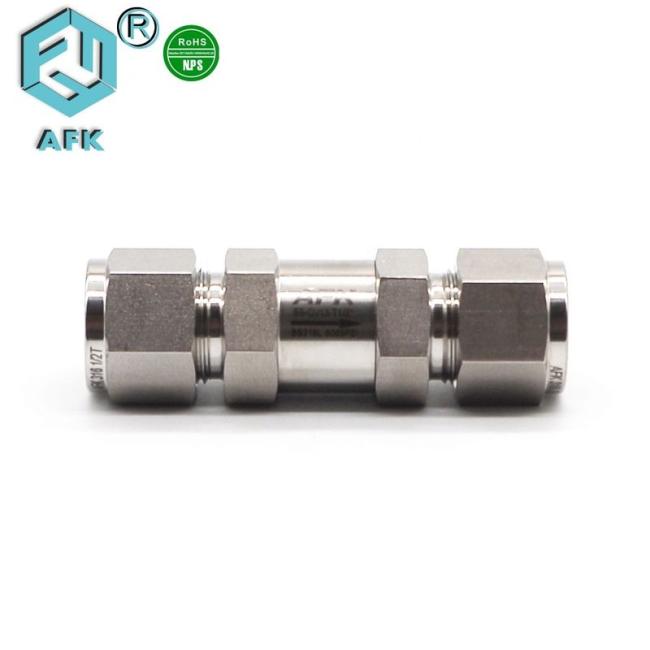

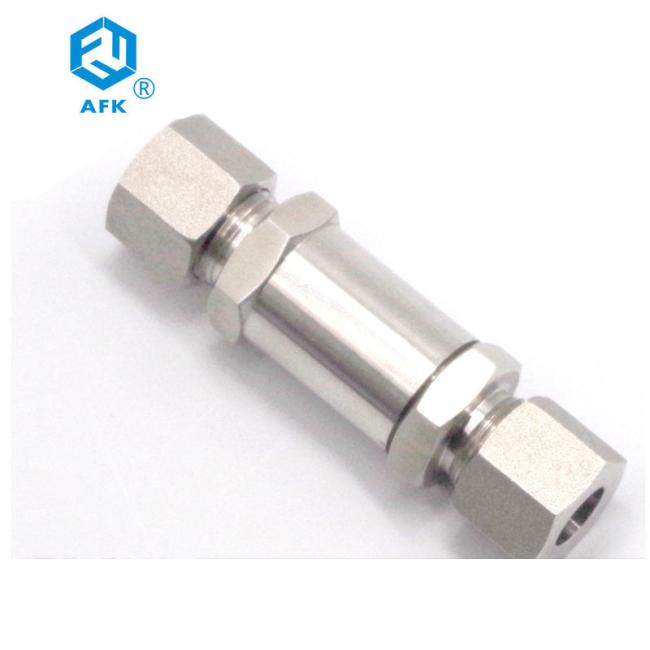

Product Show

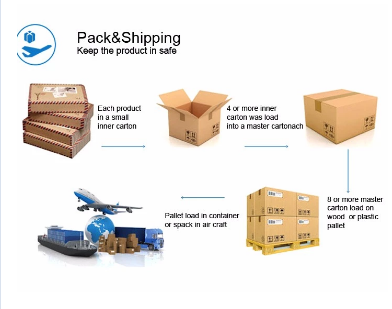

Packing & Delivery
Packing
Export packing
Delivery
Within 7 days in stock

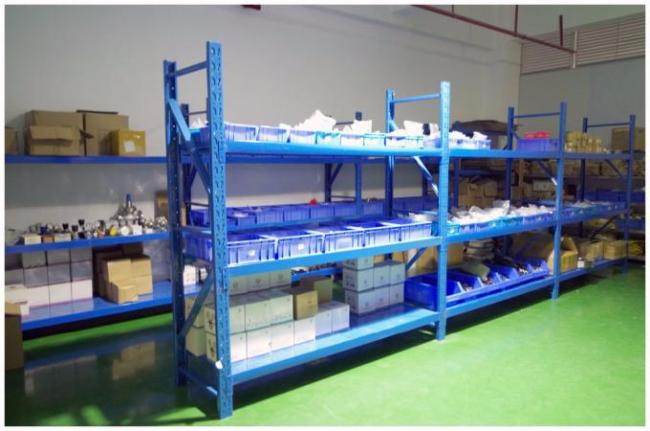

Our Company
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: No, we not offer the sample for free charge and also not pay the cost of freight.
Q: What is your payment ?
A: T/T , PayPal , Western Union
