Forged 316 Stainless Steel Tube Fittings T Shape For Water Oil Gas 3000psi
Tube fittings Stainless steel 316 T shape pipe fitting for water oil gas 3000psi
Product Detail:
Product Name:Union Tee
Material:stainless steel 316
Connection:Ferrule Fitting OD
Type:3 way
Brade:AFK
Medium:Gas
Used:Chemical and Petrochemical
Place of Origin: Guangdong, China (Mainland)
Brand Name: AFK
| Metric | |||||||||
| Tube O.D | Catalog number | A | D | E | F | G | H | J | K |
| 3 | UT-3-0 | 22.3 | 12.9 | 2 | 12 | 10 | 15.7 | 31.5 | 44.7 |
| 4 | UT-4-0 | 25.4 | 13.7 | 3 | 12 | 12 | 18.8 | 37.6 | 50.8 |
| 6 | UT-6-0 | 27.0 | 15.3 | 5 | 12 | 14 | 19.6 | 39.1 | 53.9 |
| 8 | UT-8-0 | 29.9 | 16.2 | 6 | 14 | 17 | 22.4 | 44.7 | 59.7 |
| 10 | UT-10-0 | 31.5 | 17.2 | 8 | 17 | 19 | 23.9 | 47.8 | 63.0 |
| 12 | UT-12-0 | 36.0 | 22.8 | 10 | 22 | 22 | 25.9 | 51.8 | 72.0 |
| 14 | UT-14-0 | 38.8 | 24.4 | 10 | 24 | 27 | 28.7 | 57.4 | 77.6 |
| 15 | UT-15-0 | 38.8 | 24.4 | 11 | 24 | 27 | 28.7 | 57.4 | 77.6 |
| 16 | UT-16-0 | 38.8 | 24.4 | 12 | 24 | 27 | 28.7 | 57.4 | 77.6 |
| 18 | UT-18-0 | 38.8 | 24.4 | 14 | 27 | 30 | 29.7 | 59.4 | 79.5 |
| 20 | UT-20-0 | 44.6 | 26.0 | 16 | 30 | 32 | 34.5 | 69.1 | 89.3 |
| 22 | UT-22-0 | 44.6 | 26.0 | 18 | 30 | 32 | 34.5 | 69.1 | 89.3 |
| 25 | UT-25-0 | 49.1 | 31.3 | 21 | 35 | 38 | 36.8 | 73.7 | 98.3 |
| Fractional | |||||||||
| 1/16 | UT-005-0 | 17.8 | 8.6 | 1 | 12 | 10 | 14.0 | 28.0 | 35.6 |
| 1/8 | UT-01-0 | 22.4 | 12.7 | 2 | 12 | 10 | 15.8 | 31.4 | 44.8 |
| 3/16 | UT-015-0 | 25.4 | 13.7 | 3 | 12 | 12 | 19.6 | 39.1 | 50.8 |
| 1/4 | UT-02-0 | 27.0 | 15.2 | 5 | 12 | 14 | 22.4 | 44.8 | 54.0 |
| 3/8 | UT-03-0 | 30.5 | 16.8 | 8 | 17 | 19 | 23.1 | 46.2 | 61.0 |
| 1/2 | UT-04-0 | 36.0 | 22.8 | 10 | 22 | 22 | 26.0 | 52.0 | 72.0 |
| 5/8 | UT-05-0 | 38.9 | 24.4 | 12 | 24 | 27 | 28.7 | 57.4 | 77.8 |
| 3/4 | UT-06-0 | 40.0 | 26.0 | 15 | 27 | 30 | 29.7 | 59.4 | 80.0 |
| 1 | UT-08-0 | 49.0 | 31.2 | 21 | 35 | 38 | 36.8 | 73.6 | 98.0 |
Packaging & Delivery
Selling Units:Single item
Single package size:10X8X9 cm
Single gross weight:0.2 kg
Package Type:Export packing
Lead Time :
| Quantity(Piece) | 1 - 500 | >500 |
| Est. Time(days) | 10 | To be negotiate |

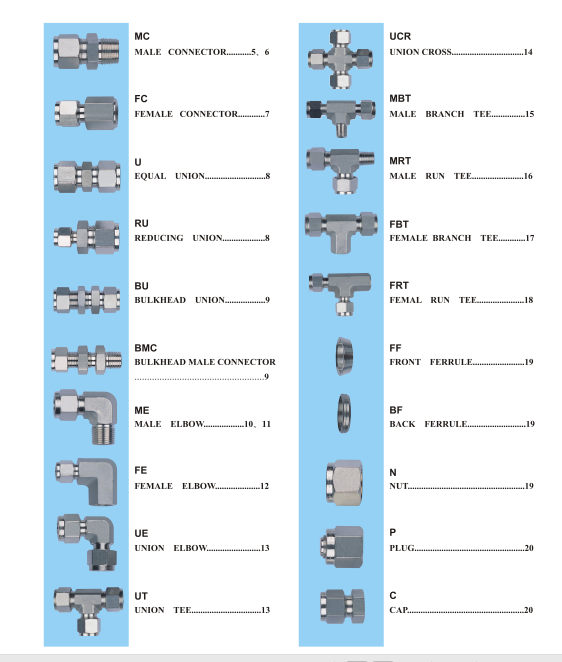

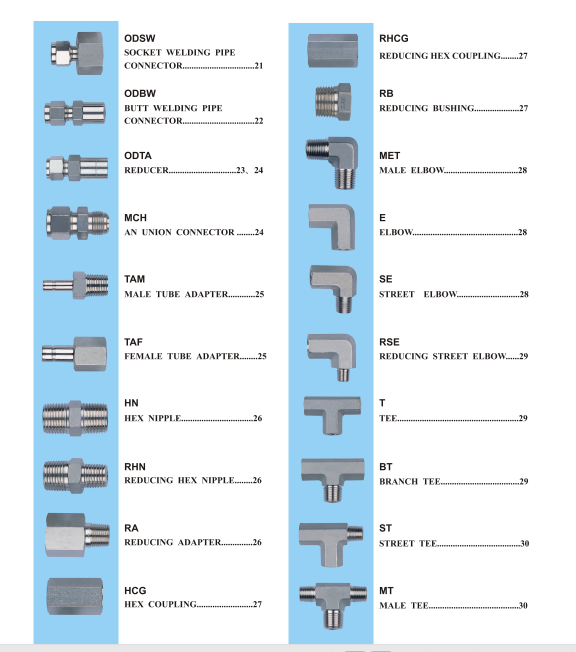

Related Product
