Desing features:

1. Irrigation solenoid valve

2. Fit for stadium, farm, industrial dust and water treatment equipment.

3. Normally closed.

4.Pipe size 4".

5. Service voltage : DC latching/AC110V/AC220V

/AC24V/DC12V/DC24V/DC9V

6.Thread connnector : G . Flange

7.Material-body valve -nylon

Structure Parameters:

Temperature: Suitable

water≤42℃, surroundings≤82℃

Model: 400P

Pressure: 0.1-1.0Mpa

Flow rate: 1.14-70㎥/h

Thread: G, Flange

Orifice size: 80mm

Self-holding type coil: DC6-20V,

Pulse Width (20-500mSec)

working model(+red&-black valve open)

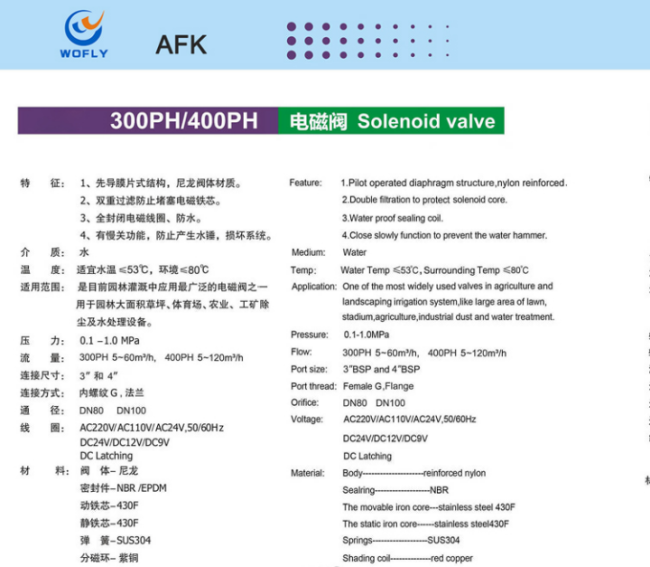

Detail Image

FAQ

Q1. What is your terms of packing?
A: Export standard.

Q2. What is your terms of payment?
A: T/T ,PayPal, Western Union.

Q3. What is your terms of delivery?
A: EXW.

Q4. How about your delivery time?
A: Generally, it will take 5 to 7 days after receiving your full payment. The specific delivery time depends
on the items and the quantity of your order.

Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.

Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
