ISO High Purity Gas Nitrogen Pressure Regulator 1/4NPT Body Port 316L Filter Mesh

Price Negotiable
Price: Negotiable
MOQ: 2-99 pieces per week
Delivery Time: 5-8 days
Brand: AFK
Product Description

AFK Brand ISO high purity gas nitrogen pressure regulator



Typical applications

1) Laboratory

2) Gas analysis

3) Process contral

4) Gas bus-bar

5) Testing equipment



Main Features

Body Thread: 1/4" NPT ( F )

Body/Bonnet/Stem/Spring loaded: 316L

Filter mesh: 316L (10μm)

Piston pressure- reducing Structure.

Body Thread : 1/4" NPT ( F )

Filter element installed internally

Panel mountable or wall mounted



Technical Parameter



Maximum Inlet Pressure 3000,6000psig
Outlet Pressure Ranges 0~250, 0~500, 0~1500,0~3000psig
Safety test pressure 1.5 times maximum inlet pressure
Operating Temperature -40°F to +165°F / -40°c to 74°c
Leak rate foam test
Cv value 0.06

Material



Body 316L.Brass
Bonnet 316L. Brass
Diafragm 316L
Strainer 316L(10 μm)
Seat PCTFE
Spring 316L
Plunger valve core 316L
o-ring viton



Packaging & Delivery
Packaging Details
Export packing
Port
SHENZHEN
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 7 To be negotiated

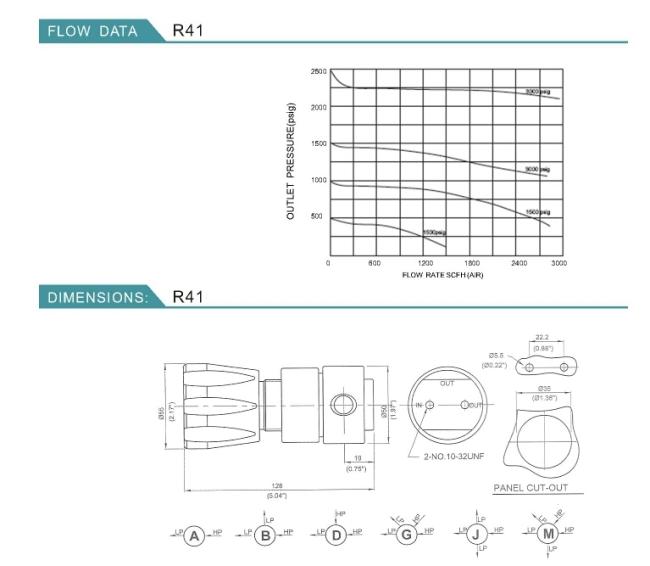

Detail Image

Please provide the following parameters in your inquiry as many as possible:



1. Inlet actual working pressure



2. Outlet actual working pressure



3. Inlet conenction and size



4. Outlet conenction and size



5. Material: brass, nickel plated brass, stainless steel



6. If you have special flow rate requirements and a panel, please indicate it.



7. Quantity
