Single Stage Brass Pressure Regulator Max Inlet Pressure 2.5Mpa R57L Middle Flow
R57L Middle Flow Single Stage Brass Pressure Regulator Max Inlet Pressure 2.5Mpa
Application
R57 Series brass single stage type pressure regulator, widely suitable for middle flow gas demand occasions,
including Gas welding cutting, industrial manufacturing, agricultural maintenance, laboratory testing and other occasions.
Structure Features
Single-stage decompression structure
2" Diaphragm
2‘pressure gauge
Max inlet pressure 2.5Mpa
Implementation of UL safety standards
1) Model: R57 Gas Pressure Regulator
2) Outlet pressure: 15 Mpa
3) Gauge: Two
4) Inlet connection: G5/8"-RH(F)
5) Outlet connection: M16-1.5RH(M)
Detail Data
|
Feature highlight |
|
|
1 |
Single stage type pressure regulator |
|
2 |
Max. inlet pressure 15 Mpa |
|
3 |
2" pressure gauge and diaphragm |
|
5 |
Weight: 1.25 KG |
|
Main component material |
|
|
Body |
Brass |
|
Bonnet |
Brass |
|
Diaphragm |
Neoprene |
|
Filter |
Brass |
|
Medium |
CO2, Argon, Nitrogen, Oxygen, Air |
Product Selection
| Model | Application Gas | Max.Inlet Pressure(MPa) | Outlet Pressure(MPa) | Inlet Gauge(Mpa) | Outlet Gauge(Mpa) | Inlet thread | Outlet thread |
| R57LX-15 | O2 | 2.5 | 0.03~0.85 | N/A | 1.6 | 1/4"NPT(F) | 1/4"NPT(F) |
| R57LX-15-N | 2.5 | 0.03~0.85 | N/A | 1.6 | M16-1.5RH(M) | M16-1.5RH(M) | |
| R57LX-17-N | 2.5 | 0.03~1.7 | N/A | 2.5 | 1/4"NPT(F) | 1/4"NPT(F) | |
| R57LY-15 | acetylene | 2.5 | 0.01~0.1 | N/A | 0.25 | 1/4"NPT(F) | 1/4"NPT(F) |
| R57LY-15-N | 2.5 | 0.01~0.1 | N/A | 0.25 | M16-1.5RH(M) | M16-1.5RH(M) | |
| R57LF-80 | Propane, natural gas | 2.5 | 0.02~0.56 | N/A | 1 | 1/4"NPT(F) | 1/4"NPT(F) |
| R57LF-80-N | 2.5 | 0.02~0.56 | N/A | 1 | M16-1.5RH(M) | M16-1.5RH(M) | |
| R57LIN-15 | Argon, helium, nitrogen | 2.5 | 0.03~0.85 | N/A | 1.6 | 1/4"NPT(F) | 1/4"NPT(F) |
| R57LIN-17 | 2.5 | 0.03~1.7 | N/A | 2.5 | 1/4"NPT(F) | 1/4"NPT(F) | |
| R57LQ-15 | Air | 2.5 | 0.03~0.85 | N/A | 1.6 | 1/4"NPT(F) | 1/4"NPT(F) |
| R57-LQ-17 | 2.5 | 0.03~1.7 | N/A | 2.5 | 1/4"NPT(F) | 1/4"NPT(F) | |
| R57LH-08 | H2 | 2.5 | 0.02~0.85 | N/A | 1 | 1/4"NPT(F) | 1/4"NPT(F) |
| R57-LH-15 | 2.5 | 0.03~0.85 | N/A | 1.6 | 1/4"NPT(F) | 1/4"NPT(F) | |
| R57-LH-17 | 2.5 | 0.03~1.7 | N/A | 2.5 | 1/4"NPT(F) | 1/4"NPT(F) | |
| R57-LC-15 | CO2 | 2.5 | 0.03~0.85 | N/A | 1.6 | 1/4"NPT(F) | 1/4"NPT(F) |
| R57-LC-17 | 2.5 | 0.03~1.7 | N/A | 2.5 | 1/4"NPT(F) | 1/4"NPT(F) |

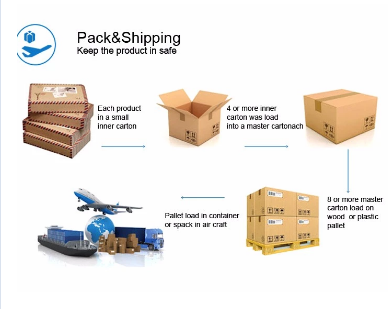

Packing &Delivery
|
Packaging |
|
|
17cm*17cm*17cm |
|
|
0.09KG |
|
|
Export packing or according customer's request. |
|
Our Service
1. R&Q (Design according to client's requirements )
2. Professional mold manufacturer .
3. Competitive price with high quality
4. We will keep online every work day .
5. We will reply your email and fox within 24 hours .
6. You may call and make touch with us anytime , if you have question on our products .
