Stainless Steel 316L 3000psi Nitrogen Gas Pressure Regulator 1/4" NPT
Price:
Negotiable
MOQ:
1 Piece
Delivery Time:
5-8 work days
Brand:
AFK
Product Description
Product Description

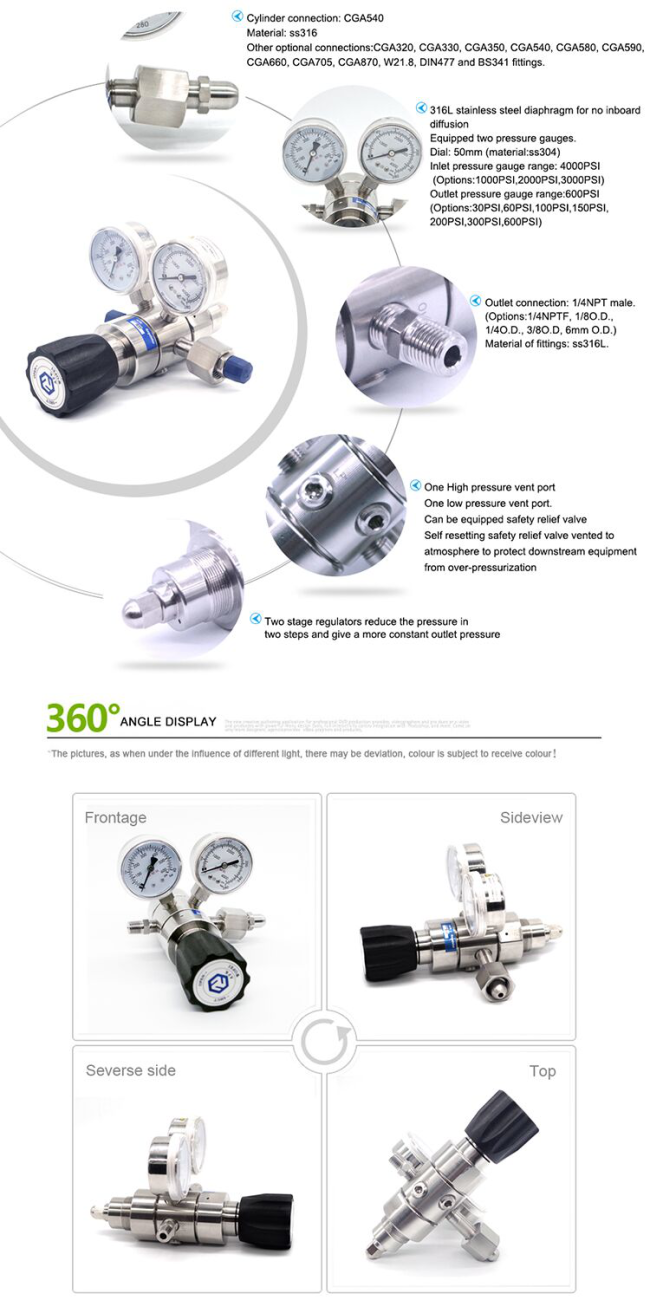

R31 series stainless steel pressure regulator, double stage diaphragm reducing structure, stable input pressure, suitable for high purity gas, standard gas, corrosive gas etc.
Design Features:
- Five hole designof the body
- Double-stage pressure-reducing structure
- Metal-to-metal diaphragm seal
- Body thread:input and output connection
- 1/4" NPT(F)
- Easy to clean internal structure
- Filter element installed internally
- Panel mounting and wall mounting available
- Optional outlet: needle valve, diaphragm valve
![]()
![]()
Technical Data:
- Maximum inlet pressure: 3000, 500psig
- output pressure:0~25, 0~50, 0~100, 0~250psig
- safety testing pressure: 1.5 times of maximum inlet pressure
- working temperature: -40~+165 deg F(-40~+74 deg C)
- leakage rate: 2×10-8 atm cc/sec He
- CV value=0.06
Application:
- laboratory
- gas chromatography
- gas lasers
- gas bus-bar
- petrochemical industry
- testing equipment
Material:
- body: 316L, Brass
- bonnet: 316L, Brass
- diaphragm: 316L
- strainer: 316L(10μm)
- seat: PCTFE, PTFE, Vespel
- spring: 316L
- stem: 316L
Certifications:
