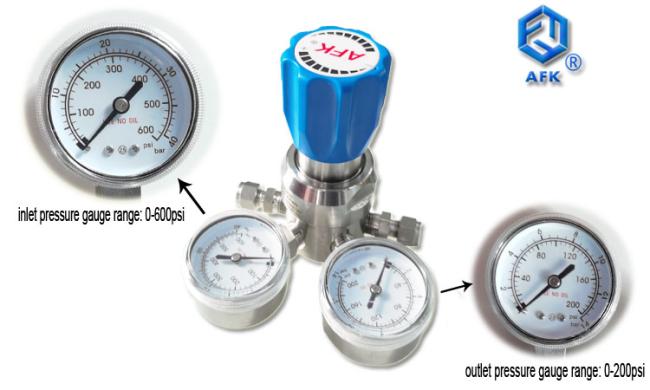

316L 600Psi Stainless Steel Pressure Regulator 1/4 Inch CE PTFE Valve
Price:
Negotiable
MOQ:
1
Delivery Time:
1WEEK
Brand:
AFK
Product Description

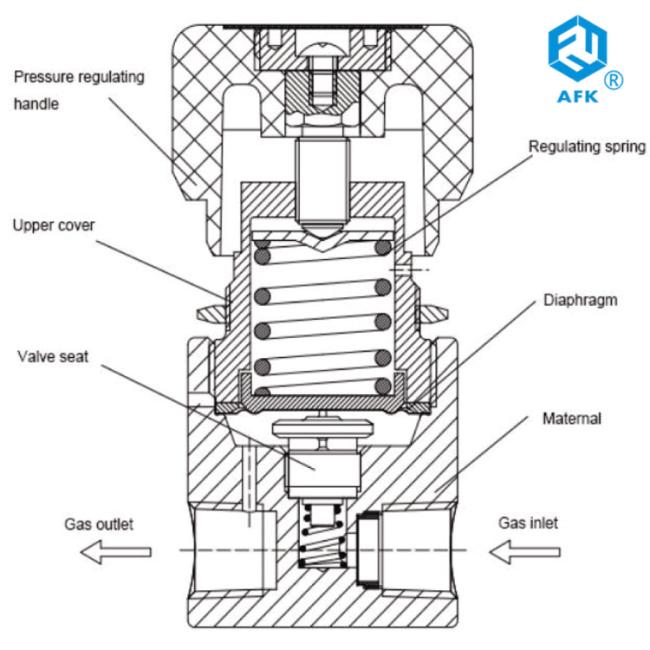

R11 Series stainless steel pressure regulator is Single-stage diaphragm ,vacuum structure Stainless diaphragm output.It has piston pressure reducing structure,constant outlet pressure,mainly used for high input pressure,suitable for purified gas,corrosive gas etc.
| DESIGN FEATURES | TYPICAL APPLICATIONS |
| SIngle-stage reduce structure | Laboratory |
| Use hard-seal between body and Diaphragm | Gas Chromatograph |

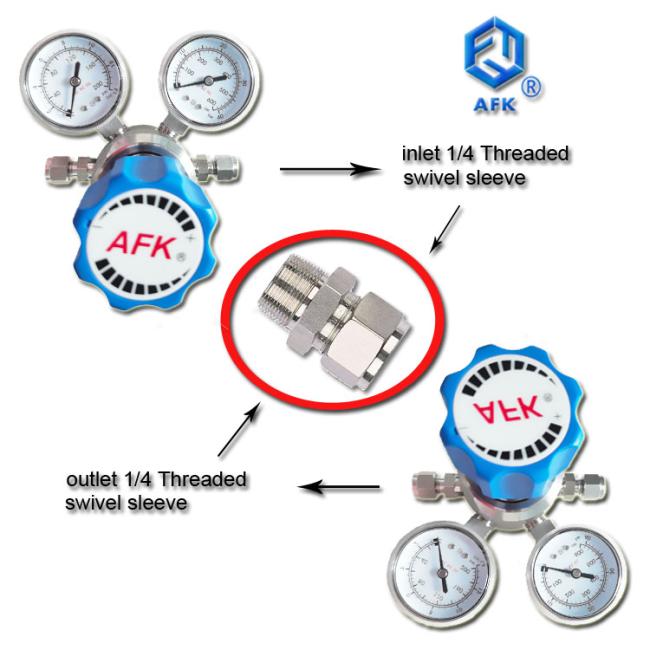

| Body Thread:1/4"NPT(F) | Gas Laser |
| Easy to sweep inside body | Gas bus |
| Filter mesh inside | Oil and chemical undustry |

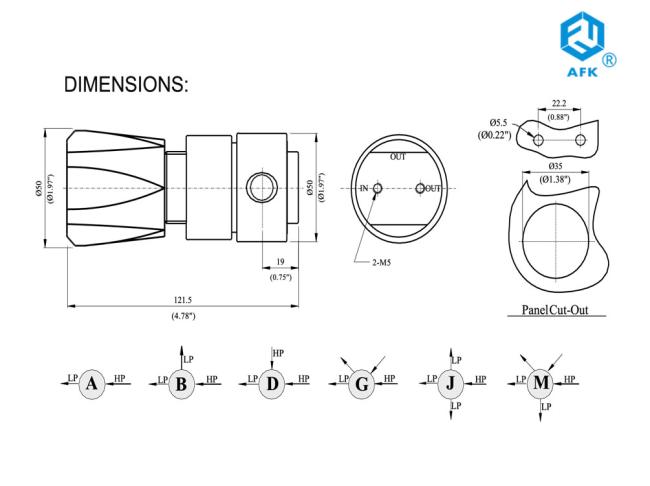

| Panel mountable or wall mounted | Tested instrumentation |
| R11 | L | B | B | D | G | 00 | 02 | P |
| Item | Body Material | Body Hole | Inlet Pressure |
Outlet Pressure |
Pressure Guage |
Inlet size |
Outlet size |
Mark |
| R11 | L:316 | A | D:3000 psi | F:0-500psig | G:Mpa guage | 00:1/4″NPT(F) | 00:1/4″NPT(F) | P:Panel mounting |
| B:Brass | B | E:2200 psi | G:0-250psig | P:Psig/Bar Guage | 01:1/4″NPT(M) | 01:1/4″NPT(M) | R:With relief valve | |
| D | F:500 psi | K:0-50pisg | W:No guage | 23:CGGA330 | 10:1/8″ OD | N:Needle calve | ||
| G | L:0-25psig | 24:CGGA350 | 11:1/4″ OD | D:Diaphregm valve | ||||
| J | 27:CGGA580 | 12:3/8″ OD | ||||||
| M | 28:CGGA660 | 15:6mm OD | ||||||
| 30:CGGA590 | 16:8mm OD | |||||||
| 52:G5/8″-RH(F) | ||||||||
| 63:W21.8-14H(F) | ||||||||
| 64:W21.8-14LH(F) |
| SPECIFICATION | |
| Max inlet pressure: | 500,3000psi |

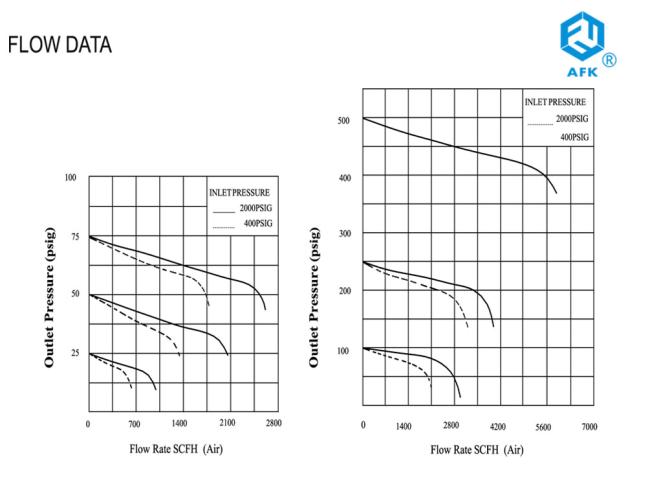

| Outlet pressure: | 0~25,0~50,0~100,0~250,,0~500 psig |
| Proof pressure : | 1.5 times of maximum rated pressure |
| Working tem: | -40℉~+446℉(-40℃~+230℃) |
| Leakage rate: | 2*10-8 atm cc/ sec He |
| Cv: | 0.08 |
| MATERIAL | |

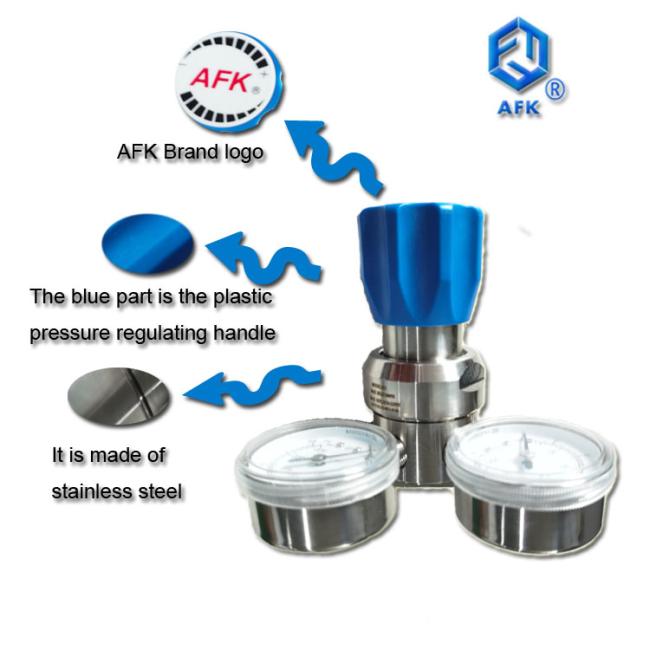

| Body: | 316L,Brass |
| Roof: | 316L,Brass |
| Diaphragm: | 316L |
| Filter mesh: | 316L(10U m) |
| Valve seat: | PCTFE,PTFE,Vespel |
| Spring loaded: | 316L |
| Valve disc regulation pole: | 316L |
