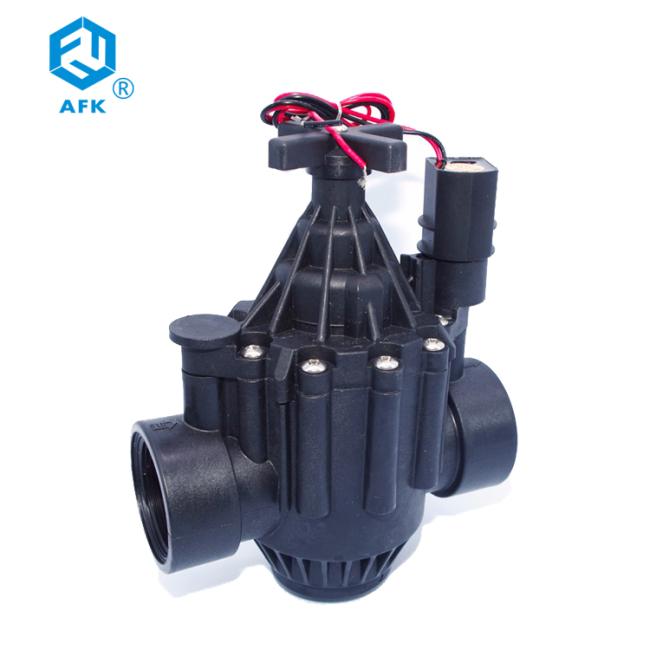

BSP Thread 1.5 Inch Irrigation Water Solenoid Valve 150P Nylon
Characteristic
- The pilot type diaphragm structure , nylon body material.
- Double filter to prevent clogging eletromagnetic core.
- Fully enclosed eletromagnetic coil, waterproof.
- A slow off function to prevent water harmmer, damage the system.
- Irrigation solenoid valve
- Fit for stadium, farm, industrial dust and water treatment equipment.
- Normally clos
- Pipe size : 1.5 "
- Service voltage : DC Latching, AC110V, AC220V, AC24V, DC24V, DC12V, DC9V
- Thread connnector :G
- Thread connnector :G

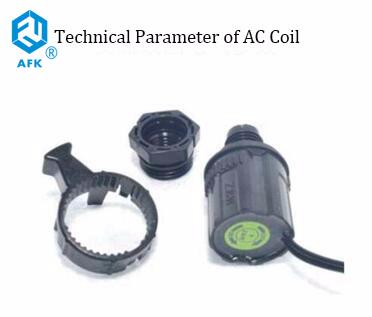

| Power | Cument Amp | Coil impedance 20℃ | ||
| Opening cument | Holding cument | |||
| AC24V | 6.72W | 0.41A | 0.28A | 30Ω |
| AC110V | 3W | 0.072A | 0.049A | 840Ω |
| AC220V | 3W | 0.037A | 0.025A | 2.73Ω |

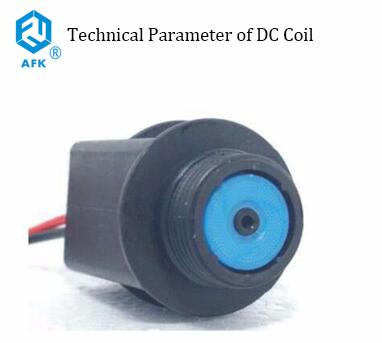

| Power | Cument Amp | Coil impedance 20℃ | ||
| Opening cument | Holding cument | |||
| DC9V | 3.6W | 560mA | 400mA | 24Ω |
| DC12V | 3.6W | 420mA | 300mA | 41Ω |
| DC24V | 3.6W | 252mA | 180mA | 130Ω |
| One | Two | three |
|
Medium:Water Temperature: Suitable water≤42℃, surroundings≤52℃ Application range: It is currently one of the most widely used electromagnetic valve in garden irrigation, large-scale garden lawn, stadium, farm, industrial dust and water treatment equipment. |
Model: 150P Pressure: 0.1~1.04Mpa connect size: 1.5" Thread: G Coil: AC220, AC110V, AC24V, 50/60HZ, 10VA Orifice size: 40mm Self-holding type coil: DC6-20V, Pulse Width (20-500mSec) working model(+red&-black valve open) (-red&-black valve closed) |
Material-body valve -nylon enclosed-NBR Moving iron core-430F Static iron core-430F Spring-SUS304 Sub-magnetic ring-Copper |
