GB SS316 Forged Equal Tee Fitting Ferrule OD Thread Gas Pipe Fittings
Price:
Negotiable
MOQ:
1~10
Delivery Time:
1WEEK
Brand:
AFK
Product Description
*Product Show

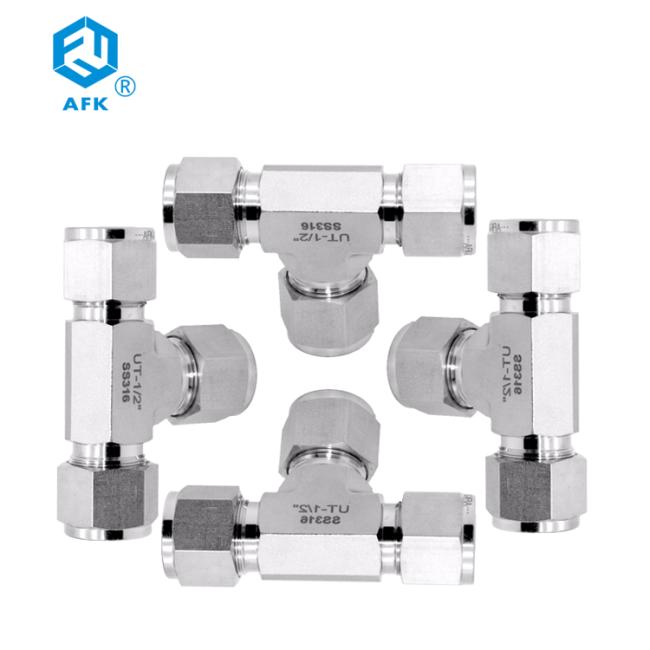

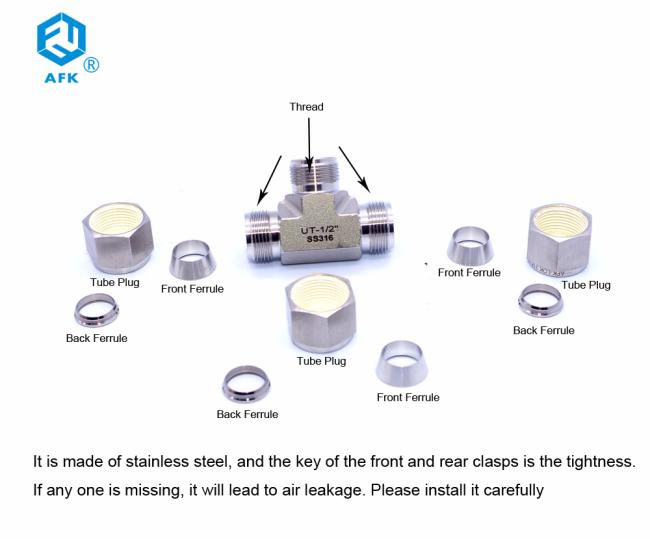

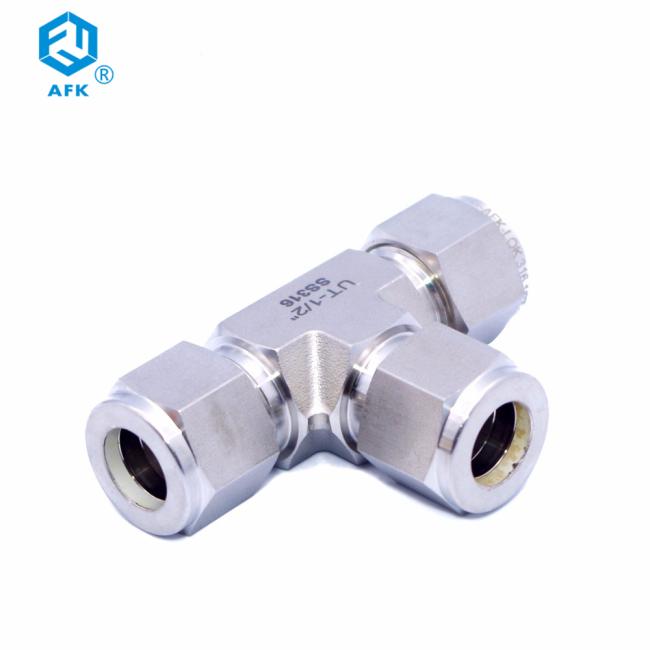

*Name: UT (Union Tee Fitting)
*Size: 1/2 inch
*Connection: Ferrule OD
*Pressure: 3000 Psi
*Material: Stainless Steel 316

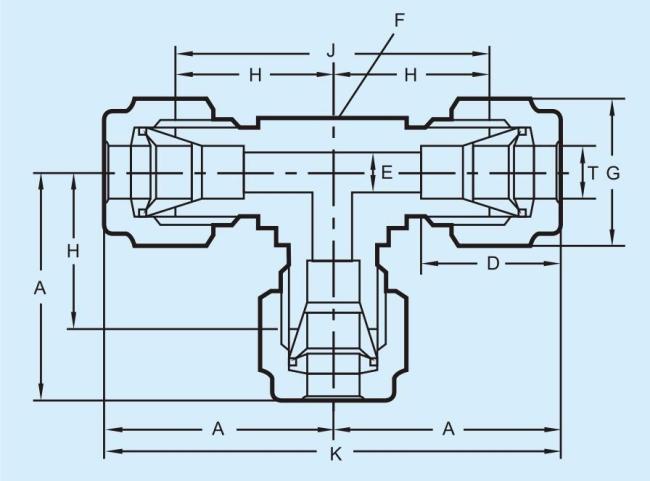

Connects Fractional(Inch)Tube
| Part No. |
Tube OD
T
|
Dimensions (mm) | ||||||||
|
E
Min.
|
h | H | F | I | L | |||||
| inch | mm | inch | mm | inch | mm | |||||
| UT-01 | 1/16 | 1.68 | 1.3 | 3/8 | 9.52 | 5/16 | 7.93 | 8.6 | 14.0 | 17.8 |
| UT-02 | 1/8 | 3.17 | 2.3 | 3/8 | 9.52 | 7/16 | 11.11 | 12.7 | 15.7 | 22.4 |
| UT-03 | 3/16 | 4.76 | 3,0 | 1/2 | 12.70 | 1/2 | 12.70 | 13.7 | 17.8 | 24.4 |
| UT-04 | 1/4 | 6.35 | 4.8 | 1/2 | 12.70 | 9/16 | 14.28 | 15.2 | 19.6 | 26.9 |
| UT-05 | 5/16 | 7.93 | 6.4 | 5/8 | 15.87 | 5/8 | 15.87 | 16.3 | 21.3 | 28.7 |
| UT-06 | 3/8 | 9.52 | 7.1 | 5/8 | 15.87 | 11/16 | 17.46 | 16.8 | 23.1 | 30.5 |
| UT-08 | 1/2 | 12.7 | 10.4 | 13/16 | 20.63 | 7/8 | 22.22 | 22.9 | 25.9 | 36.1 |
| UT-10 | 5/8 | 15.87 | 12.7 | 15/16 | 23.81 | 1 | 25.40 | 24.4 | 28.7 | 38.8 |
| UT-12 | 3/4 | 19.05 | 15.7 | 1-1/16 | 26.98 | 1-1/8 | 28.57 | 24.4 | 29.7 | 39.9 |
| UT-14 | 7/8 | 22.22 | 18.3 | 1-3/16 | 30.16 | 1-1/4 | 31.75 | 25.9 | 34.5 | 44.7 |
| UT-16 | 1 | 25.4 | 22.4 | 1-3/8 | 34.92 | 1-1/2 | 38.10 | 31.2 | 36.8 | 49.0 |
| UT-20 | 1-1/4 | 31.75 | 27.7 | 1-11/16 | 42.86 | 1-7/8 | 47.63 | 41.1 | 44.5 | 66.5 |
| UT-24 | 1-1/2 | 38.1 | 34.0 | 2 | 50.80 | 2-1/4 | 57.15 | 50.0 | 50.8 | 78.0 |
| UT-32 | 2 | 50.8 | 46.0 | 2-3/4 . | 69.85 | 3 | 76.20 | 67.6 | 69.8 | 107.2 |
Connects Metric Tube
| Part No. |
Tube OD
T
|
Dimensions (mm) | |||||
|
E Min. |
h | H | F | I | I1 | ||
| mm | inch | mm | |||||
| UT-M02 | 2 | 1.7 | 9.52 | 12.70 | 12.9 | 15.7 | 22.3 |
| UT-M03 | 3 | 2.4 | 9.52 | 11.11 | 12.9 | 15.7 | 22.3 |
| UT-M04 | 4 | 2.4 | 12.7 | 12.70 | 13.7 | 18.8 | 25.4 |
| UT-M06 | 6 | 4.8 | 12.7 | 14.28 | 15.3 | 19.6 | 27.0 |
| UT-M08 | 8 | 6.4 | 14.28 | 15.87 | 16.2 | 21.3 | 28.8 |
| UT-M10 | 10 | 7.9 | 17.46 | 19.05 | 17.2 | 23.9 | 31.5 |
| UT-M12 | 12 | 9.5 | 20.63 | 22.22 | 22.8 | 25.9 | 36.0 |
| UT-M14 | 14 | 11.1 | 23.81 | 25.40 | 24.4 | 28.7 | 38.8 |
| UT-M15 | 15 | 11.9 | 23.81 | 25.40 | 24.4 | 28.7 | 38.8 |
| UT-M16 | 16 | 12.7 | 23.81 | 25.40 | 24.4 | 28.7 | 38.8 |
| UT-M18 | 18 | 15.1 | 26.98 | 30.16 | 24.4 | 29.7 | 39.8 |
| UT-M20 | 20 | 15.9 | 34.92 | 31.75 | 26.0 | 34.5 | 44.6 |
| UT-M22 | 22 | 18.3 | 34.92 | 31.75 | 26.0 | 34.5 | 44.6 |
| UT-M25 | 25 | 21.8 | 34.92 | 38.10 | 31.3 | 36.8 | 49.1 |
| UT-M28 | 28 | 21.8 | 42.86 | 47.63 | 36.6 | 43.2 | 64.0 |
| UT-M30 | 30 | 26.2 | 47.63 | 50.80 | 39.6 | 48.3 | 69.9 |
| UT-M32 | 32 | 28.6 | 47.63 | 50.80 | 42.0 | 49.3 | 72.3 |
| UT-M38 | 38 | 33.7 | 55.56 | 57.15 | 49.4 | 56.4 | 84.0 |
