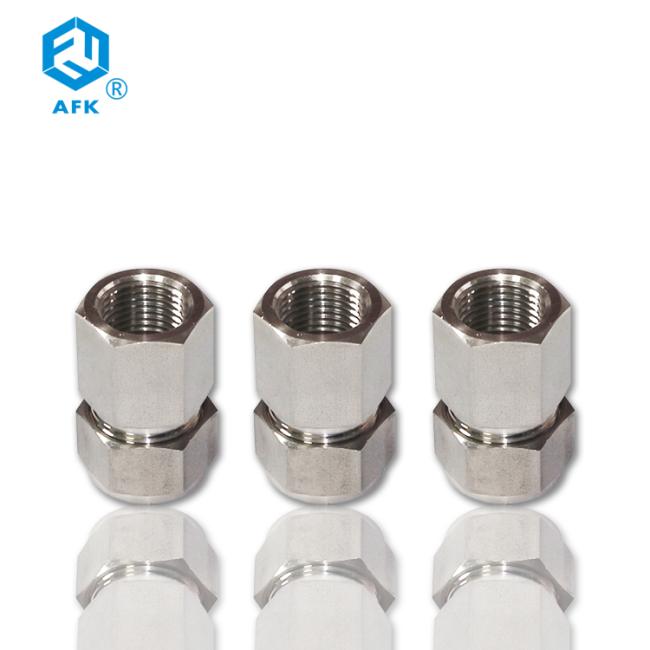

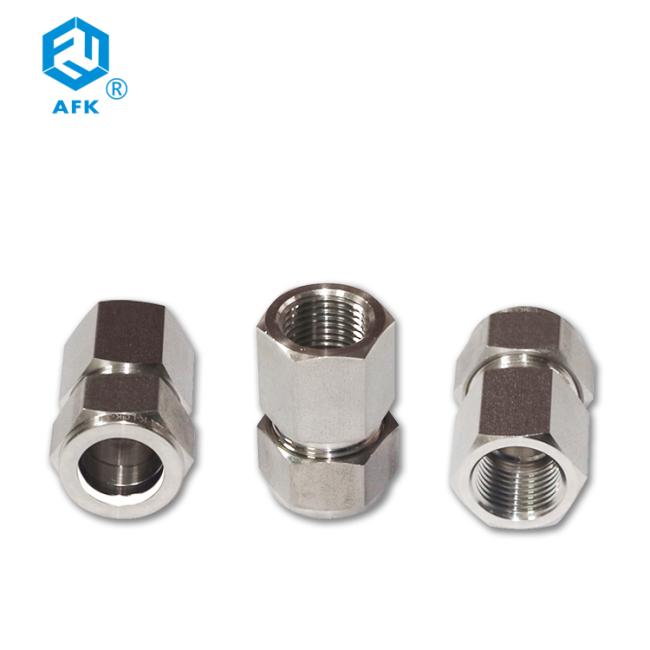

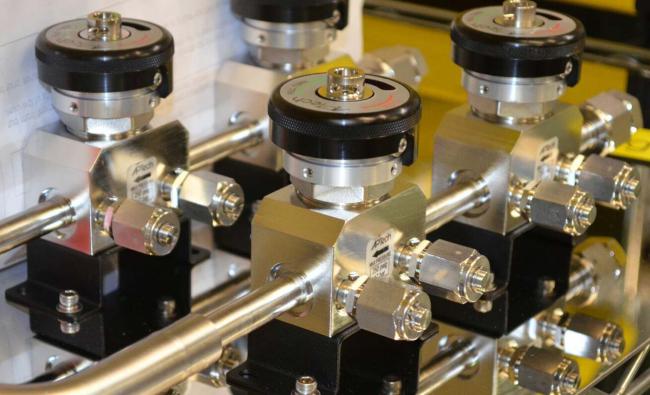

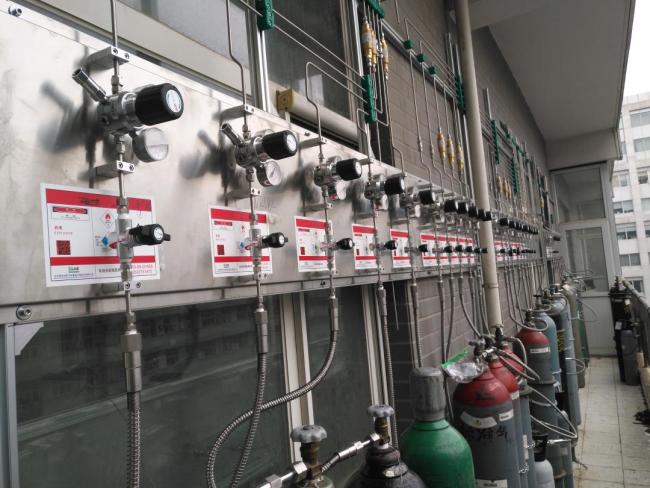

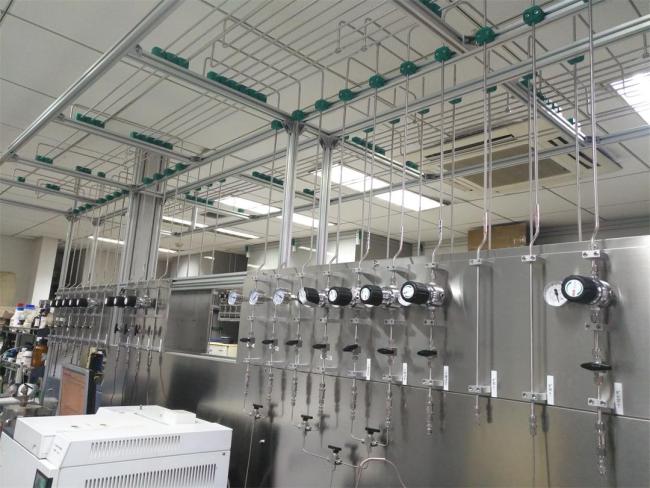

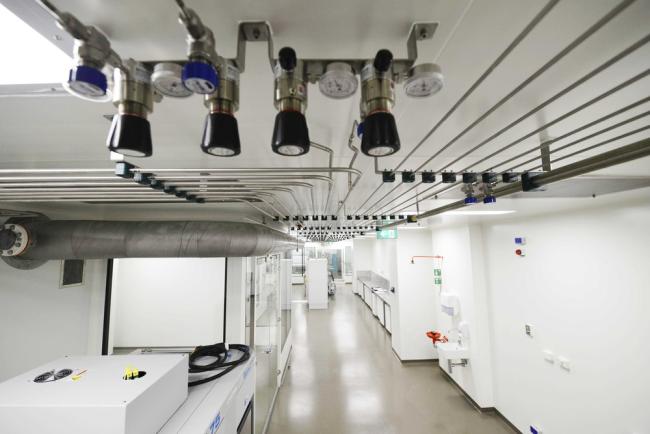

NPT Thread Stainless Steel Connector Custom Ferrule Forged
Price:
Negotiable
MOQ:
1~10
Delivery Time:
1WEEK
Brand:
AFK
Product Description

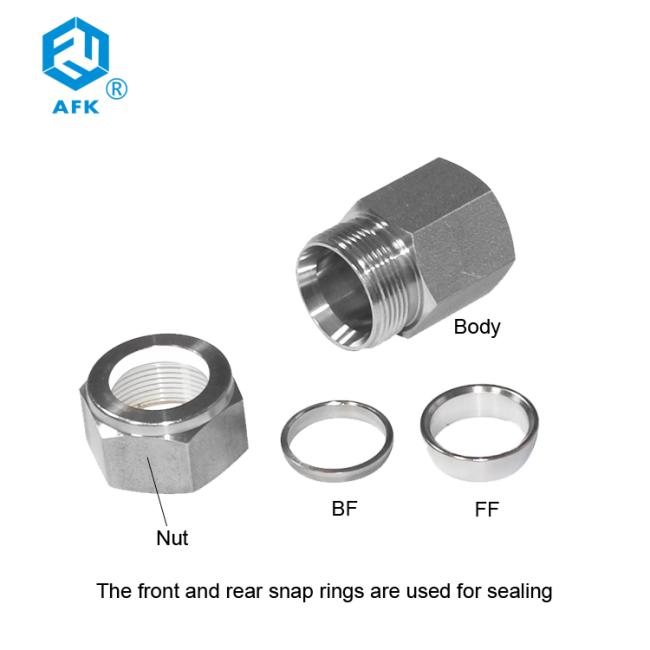

Components Of Ferrule Joint
| AFK ferrule joint is composed of front ferrule, rear ferrule, ferrule nut and joint body. Advanced design and strict quality control ensure that the pipe joint is completely sealed under the correct installation. |
Features of AFK ferrule joint
|
easy to install correctly； installation will not transfer the torsion cabinet to ferrule. |

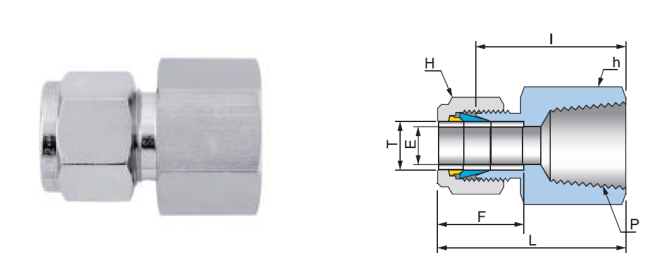

Selection Table
| Part No. |
Tube OD T |
P NPT |
Dimensions(mm) | ||||||||
|
E Min. |
h | H | F | I | L | ||||||
| inch | mm | inch | mm | inch | mm | ||||||
| FC-0202N | 1/8 | 3.17 | 1/8 | 2.3 | 9/16 | 14.28 | 7/16 | 11.11 | 12.7 | 22.1 | 28.7 |
| FC-0204N | 1/8 | 3.17 | 1/4 | 2.3 | 3/4 | 19.05 | 7/16 | 11.11 | 12.7 | 26.9 | 33.5 |
| FC-0302N | 3/16 | 4.76 | 1/8 | 3.0 | 9/16 | 14.28 | 1/2 | 12.70 | 13.7 | 23.1 | 29.7 |
| FC-0402N | 1/4 | 6.35 | 1/8 | 4.8 | 9/16 | 14.28 | 9/16 | 14.28 | 15.2 | 23.9 | 31.2 |
| FC-0404N | 1/4 | 6.35 | 1/4 | 4.8 | 3/4 | 19.05 | 9/16 | 14.28 | 15.2 | 28.4 | 35.8 |
| C-0406N | 1/4 | 6.35 | 3/8 | 4.8 | 7/8 | 22.22 | 9/16 | 14.28 | 15.2 | 30.2 | 37.6 |
| FC-0408N | 1/4 | 6.35 | 1/2 | 4.8 | 1-1/16 | 26.98 | 9/16 | 14.28 | 15.2 | 35.1 | 42.4 |
| FC-0502N | 5/16 | 7.93 | 1/8 | 6.4 | 9/16 | 14.28 | 5/8 | 15.87 | 16.3 | 24.6 | 32.0 |
| FC-0504N | 5/16 | 7.93 | 1/4 | 6.4 | 3/4 | 19.05 | 5/8 | 15.87 | 16.3 | 29.5 | 36.8 |
| FC-0602N | 3/8 | 9.52 | 1/8 | 7.1 | 5/8 | 15.87 | 11/16 | 17.46 | 16.8 | 25.4 | 32.8 |
| FC-0604N | 3/8 | 9.52 | 1/4 | 7.1 | 3/4 | 19.05 | 11/16 | 17.46 | 16.8 | 30.2 | 37.6 |
| FC-0606N | 3/8 | 9.52 | 3/8 | 7.1 | 7/8 | 22.22 | 11/16 | 17.46 | 16.8 | 31.8 | 39.1 |
| FC-0608N | 3/8 | 9.52 | 1/2 | 7.1 | 1-1/16 | 26.98 | 11/16 | 17.46 | 16.8 | 36.6 | 43.9 |
| FC-0612N | 3/8 | 9.52 | 3/4 | 7.1 | 1-5/16 | 33.33 | 11/16 | 17.46 | 16.8 | 40.4 | 47.8 |
| FC-0804N | 1/2 | 12.70 | 1/4 | 10.4 | 13/16 | 20.63 | 7/8 | 22.22 | 22.9 | 30.2 | 40.4 |
| FC-0806N | 1/2 | 12.70 | 3/8 | 10.4 | 7/8 | 22.22 | 7/8 | 22.22 | 22.9 | 31.8 | 41.9 |
| FC-0808N | 1/2 | 12.70 | 1/2 | 10.4 | 1-1/16 | 26.98 | 7/8 | 22.22 | 22.9 | 36.6 | 46.7 |
| FC-0812N | 1/2 | 12.70 | 3/4 | 10.4 | 1-5/16 | 33.33 | 7/8 | 22.22 | 22.9 | 38.1 | 48.3 |
| FC-1006N | 5/8 | 15.87 | 3/8 | 12.7 | 15/16 | 23.81 | 1 | 25.40 | 24.4 | 31.8 | 41.9 |
| FC-1008N | 5/8 | 15.87 | 1/2 | 12.7 | 1-1/16 | 26.98 | 1 | 25.40 | 24.4 | 36.6 | 46.7 |
| FC-1208N | 3/4 | 19.05 | 1/2 | 15.7 | 1-1/16 | 26.98 | 1-1/8 | 28.57 | 24.4 | 36.6 | 46.7 |
| FC-1212N | 3/4 | 19.05 | 3/4 | 15.7 | 1-5/16 | 33.33 | 1-1/8 | 28.57 | 24.4 | 38.1 | 48.3 |
| FC-1412N | 7/8 | 22.22 | 3/4 | 18.3 | 1-5/16 | 33.33 | 1-1/4 | 31.75 | 25.9 | 39.6 | 49.8 |
| FC-1612N | 1 | 25.40 | 3/4 | 22.4 | 1-3/8 | 34.92 | 1-1/2 | 38.10 | 31.2 | 41.1 | 53.3 |
| FC-1616N | 1 | 25.40 | 1 | 22.4 | 1/5-8 | 41.27 | 1-1/2 | 38.10 | 31.2 | 50.0 | 62.2 |
| FC-2020N | 1-1/4 | 31.75 | 1-1/4 | 27.7 | 2-1/8 | 53.98 | 1-7/8 | 47.63 | 41.1 | 52.6 | 74.7 |
| FC-2424N | 1-1/2 | 38.10 | 1-1/2 | 34.0 | 2-3/8 | 60.33 | 2-1/4 | 57.15 | 50.0 | 56.1 | 83.3 |
| FC-3232N | 2 | 50.80 | 2 | 46.0 | 2-7/8 | 73.03 | 3 | 76.20 | 67.6 | 64.3 | 101.6 |
