1000psi Forged Reducing Stainless Steel Weld Fittings Hexagon Head
Price:
Negotiable
MOQ:
1~10
Delivery Time:
1WEEK
Brand:
AFK
Product Description
Short Description:
Model No.: SF+PF
Size: 1/8″, 1/4″, 3/8″, 1/2″, 3/4″ 1″ PT
Working pressure: 1000psi
Material: ss304
Model SF
Socket-Female Thread
| Part No. | Female Thread Size T(pt) | Dimensions (mm) | ||
| L | Damx. | d | ||
| 21SF | 1/8” | 44.5 | Φ25 | Φ5 |
| 22SF | 1/4” | 50.0 | Φ25 | Φ7 |
| 23SF | 3/8” | 51.0 | Φ25 | Φ9 |
| 24SF | 1/2” | 54.5 | Φ25 | Φ9 |
| 44SF | 1/2” | 60.0 | Φ35 | Φ15 |
| 46SF | 3/4” | 60.0 | Φ35 | Φ15 |
| 48SF | 1” | 68.0 | Φ35 | Φ15 |
| 48SF | 1” | 68.0 | Φ35 | Φ15 |
Model PF
Plug-Female Thread
| Part No. | Female Thread Size T(pt) | Dimensions (mm) | ||
| L | IDamx. | d | ||
| 21PF | 1/8″ | 33.0 | H14 | Φ7.5 |
| 22PF | 1/4- | 36,0 | H17 | Φ7.6 |
| 23PF | 3/8″ | 37.0 | H19 | Φ7.5 |
| 24PF | 1/2- | 40.0 | H24 | Φ7.5 |
| 44PF | 1/2- | 45.5 | H24 | Φ12 |
| 46PF | 3/4″ | 46.0 | H30 | Φ12 |
| 48PF | 1” | 51.5 | H38 | Φ12 |

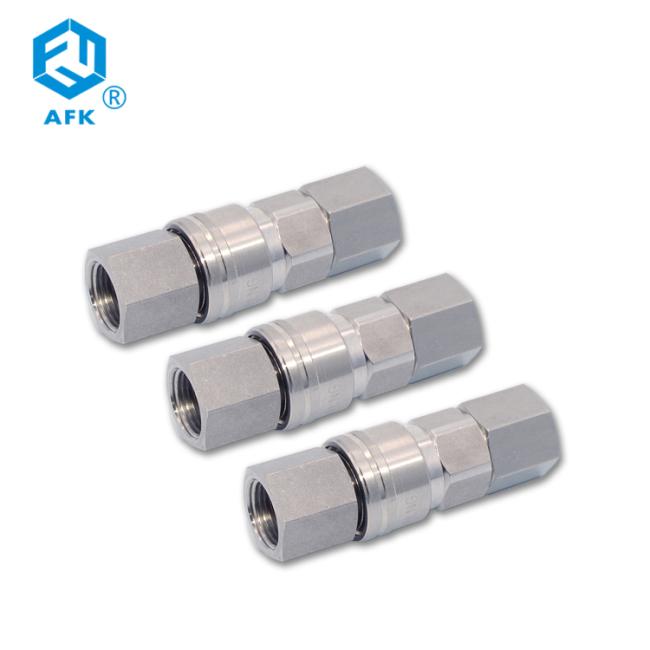

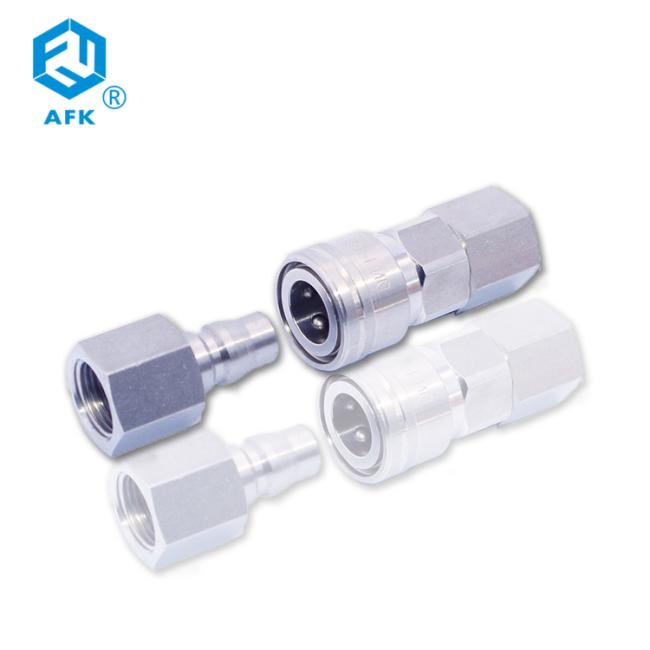

Prodcut Display
Corporate Style
 |
 |
 |
 |
Projcet
|

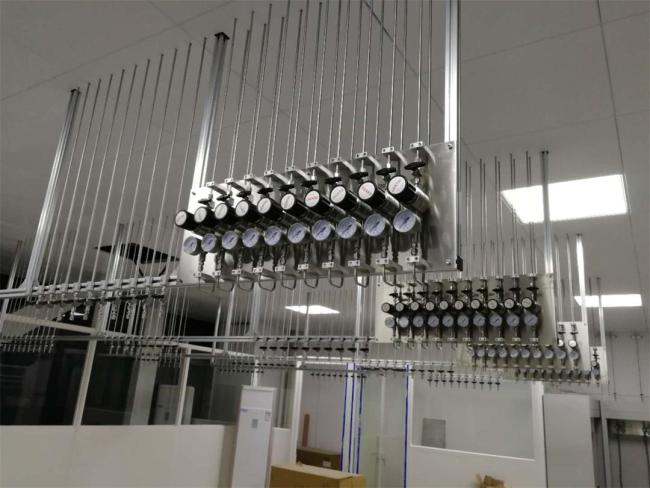

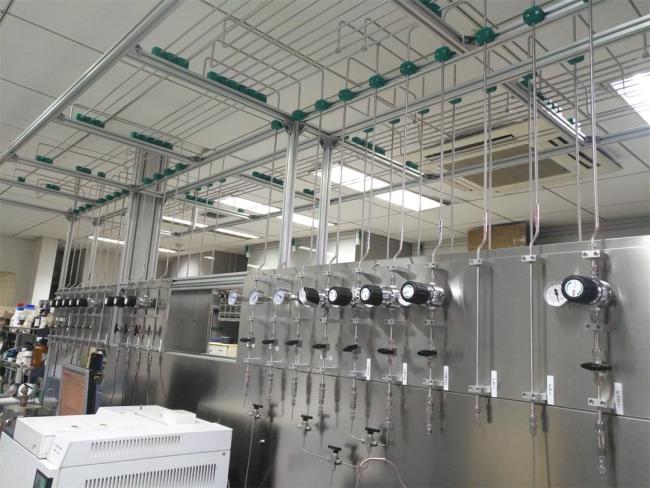

Installation items of pressure reducer |
Installation items of pressure reducer |
|

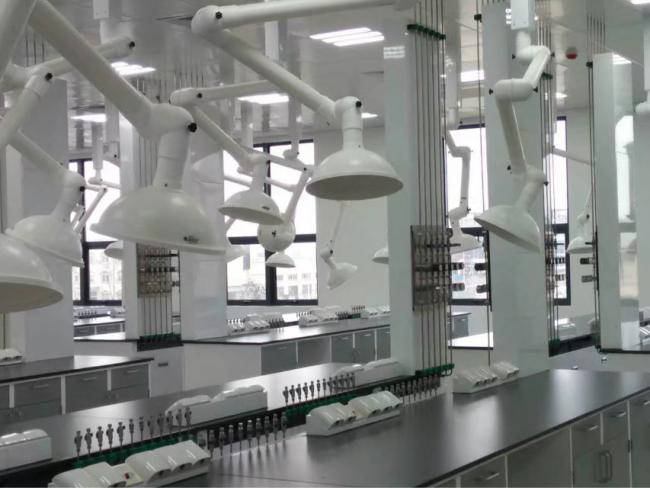

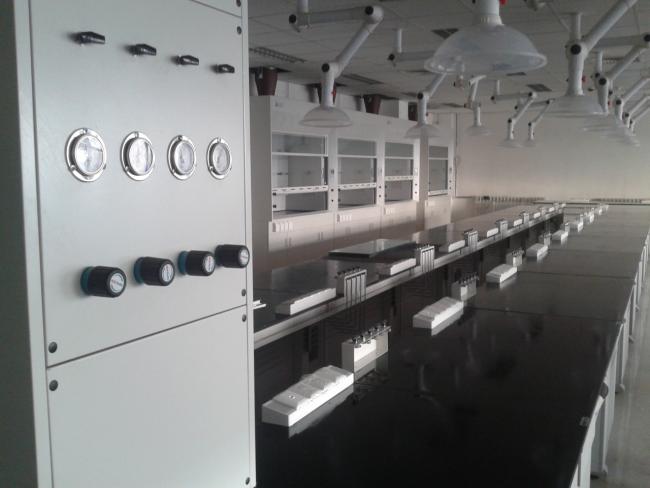

Gas supply installation project |
Gas supply installation project |
| The above is our company, the project, we are the gas Porter, we not only sell products, but also for customers to install services |
