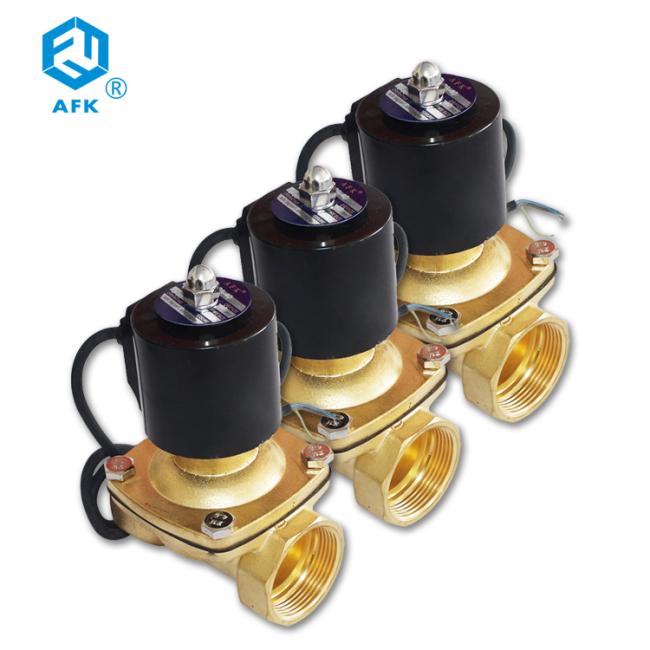

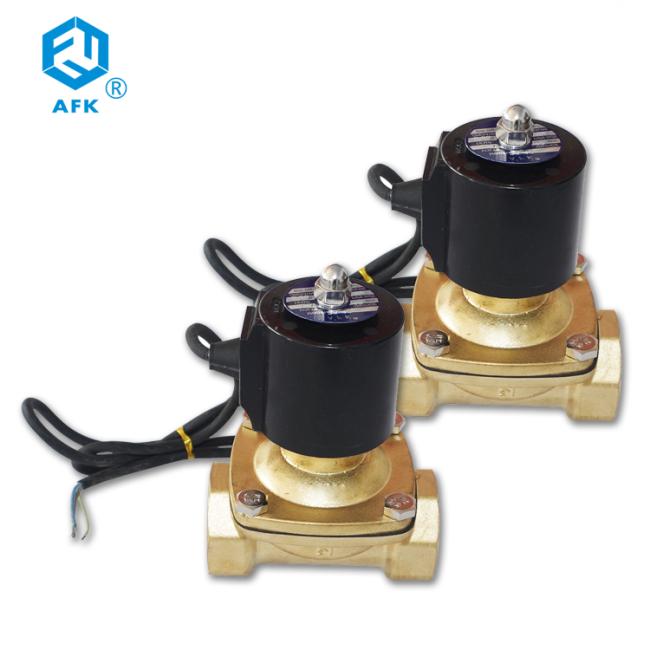

Brass IP68 Internal Thread Water Solenoid Valve 2 Inch AC220V

Price Negotiable

Price: Negotiable

MOQ: 1~10

Delivery Time: 1WEEK

Brand: AFK

Product Description

Features:

1. 2A series solenoid valve is the automatic control system of common switch element.

2. As the core of music fountain control equipment, especially suitable for running spring.

3. 2A series direct-acting solenoid valve with a media pressure working, adoting diaphragm structure with the opening and closing speed.

4. Stable performance, convenient application, high reliability, long service.

5. Can be used in river and various artificial water area for a long period, excellent performance in the domestic leading level.

Technical Parameters:

Ambient Temperature	-10℃-50℃
Body Material	brass/stainless steel
Media Temperature	0-60℃
Working Pressure	1Mpa
Media	Water
POwer Supply	AC220V 15VA, DC24V 15W,AC220V 25VA, DC24V 25W
Allow the Fluctuation	-10%~+10%
Insulation Grade	B class
Insulation class	IP68
Closing and opening speed	1 second
Applicable of life	100 thousand times
Install Way	media flow direction and the on the arrow consistent. The coil vertically upward. The working media clean and no particle impurities

Structure parameters

	A	B	c		Material(mm)
2A-15	62	55	102	G1/2“	Brass
2A-20	67	55	113	G3/4″
2A.25	86	73	117	G1“
2A.32	9.	77	130	G1 1/4“
2A-40	106	67	164	G1 1/2“
2A50	123	S3	176	G2“
2A-15B	69	57	107	G1/2“	stailless steel
2A-20B	73	57	115	G3/4 “
2A25B	98	77	125	G1“
2A-32B	115	87	153	G1J/4”
2A-40B	121	94	162	G1 1/2”
2A-50B	6S	123	187	G2“
2A-15BF	107	95	150		stailless steel Material Flange connection
2A-20BF	107	102	150
2A-25BF	138	10S	165
2A-32BF	149	131	200
2A-40BF	160	141	200
2A-50BF	Jfi6	160	240
