Male Hexagon AFK Stainless Steel Tube Adapter Forged Threaded
Price:
Negotiable
MOQ:
1~10
Delivery Time:
1WEEK
Brand:
AFK
Product Description

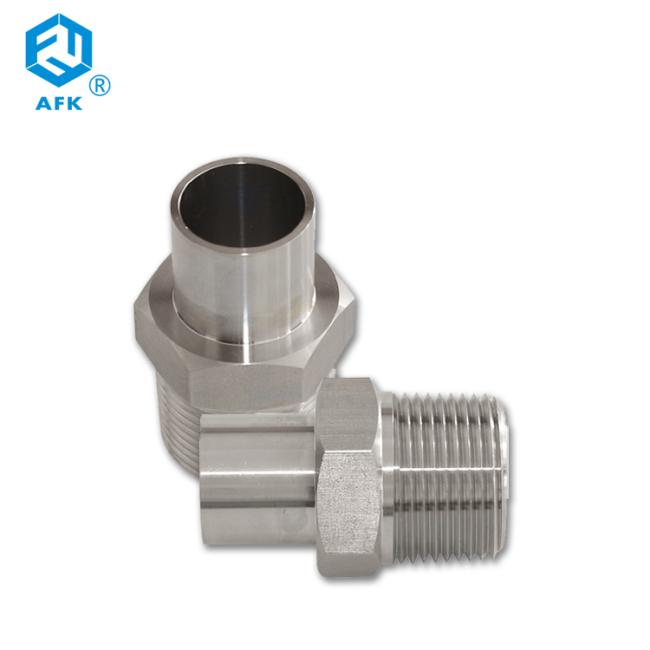

Product Display
Name: Tueb Turn Pipe Male Tube Adapter
Materia: Stainless Steel 316
Connect: Welding x NPT Male
Size: 6mm 8mm 10mm 12mm 1/4" 3/8" 1/2" 5/8" 3/4" 1"
Male Tube Adapter
(Metric)
|
T TUBE OD |
PT/NPT MALE PIPE AIZE |
CATALOG NUMBER |
A | B | E | F |
| 6 | 1/8 | TAM-6-1 | 32.8 | 10 | 4.6 | 12 |
| 6 | 1/4 | TAM-6-2 | 38.1 | 13 | 4.6 | 14 |
| 8 | 1/4 | TAM-8-2 | 39.1 | 13 | 6.4 | 14 |
| 10 | 1/4 | TAM-10-2 | 39.9 | 13 | 7.1 | 14 |
| 10 | 3/8 | TAM-10-3 | 40.6 | 14 | 7.7 | 17 |
| 12 | 1/4 | TAM-12-2 | 46.5 | 13 | 7.1 | 14 |
| 12 | 3/8 | TAM-12-3 | 51.8 | 14 | 9.1 | 17 |
| 12 | 1/2 | TAM-12-4 | 74.7 | 17 | 9.1 | 22 |
(Fractional)
| 1/4 | 1/8 | TAM-02-1 | 31.8 | 10 | 4.8 | 12 |
| 1/4 | 1/4 | TAM-02-2 | 37.1 | 13 | 4.8 | 14 |
| 1/4 | 3/8 | TAM-02-3 | 37.8 | 14 | 4.8 | 17 |
| 1/4 | 1/2 | TAM-02-4 | 43.4 | 17 | 4.8 | 22 |
| 3/8 | 1/8 | TAM-03-1 | 33.5 | 10 | 7.0 | 12 |
| 3/8 | 1/4 | TAM-03-2 | 38.9 | 13 | 7.0 | 14 |
| 3/8 | 3/8 | TAM-03-3 | 39.6 | 14 | 7.0 | 17 |
| 3/8 | 1/2 | TAM-03-4 | 45.2 | 17 | 7.0 | 22 |
| 1/2 | 1/4 | TAM-04-2 | 44.5 | 13 | 10.0 | 14 |
| 1/2 | 3/8 | TAM-04-3 | 45.2 | 14 | 10.0 | 17 |
| 1/2 | 1/2 | TAM-04-4 | 50.8 | 17 | 10.0 | 22 |
| 5/8 | 1/2 | TAM-05-4 | 52.3 | 17 | 12.7 | 22 |
| 3/4 | 1/2 | TAM-06-4 | 52.3 | 17 | 15.0 | 22 |
| 3/4 | 3/4 | TAM-06-6 | 52.3 | 19 | 15.0 | 27 |
| 1 | 3/4 | TAM-08-6 | 58.7 | 19 | 20.0 | 27 |
| 1 | 1 | TAM-08-8 | 66.0 | 22 | 20.0 | 35 |

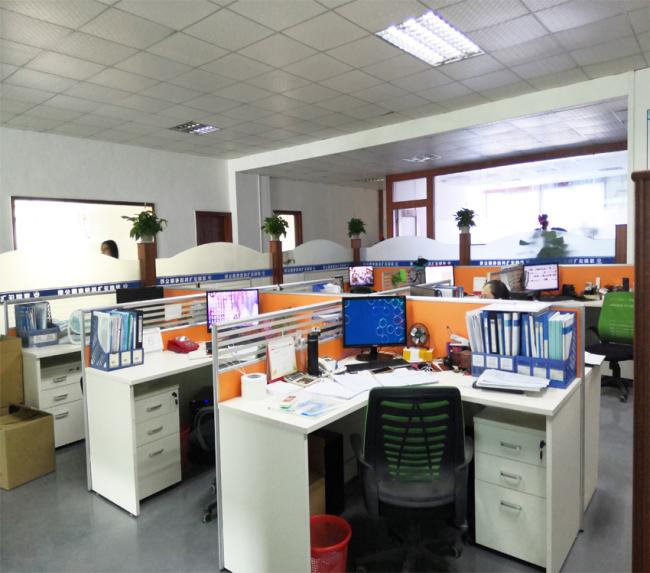

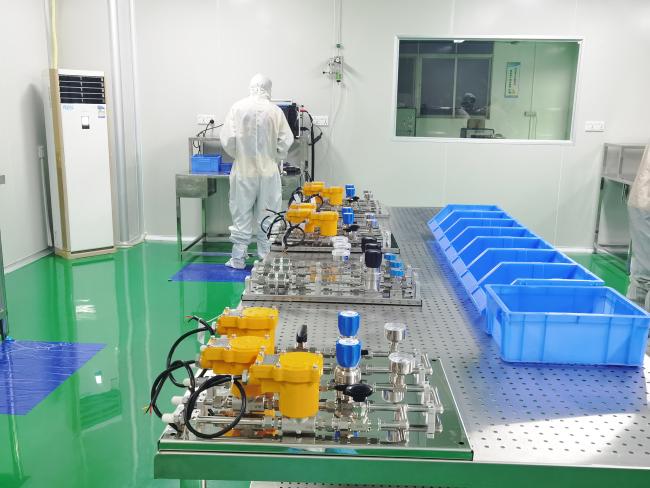

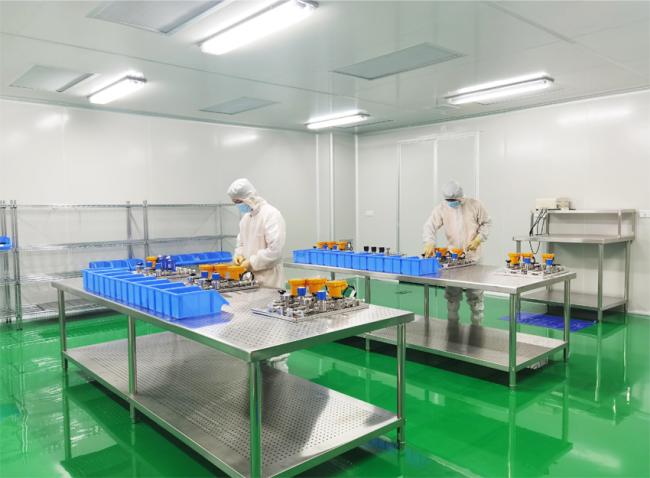

Our Company
 |
 |
 |
 |
