NPT Connector Union SS316 Screwed Tube Fittings 8mm 3000PSI
Price:
Negotiable
MOQ:
1~10
Delivery Time:
1WEEK
Brand:
AFK
Product Description
Product Introduction
|

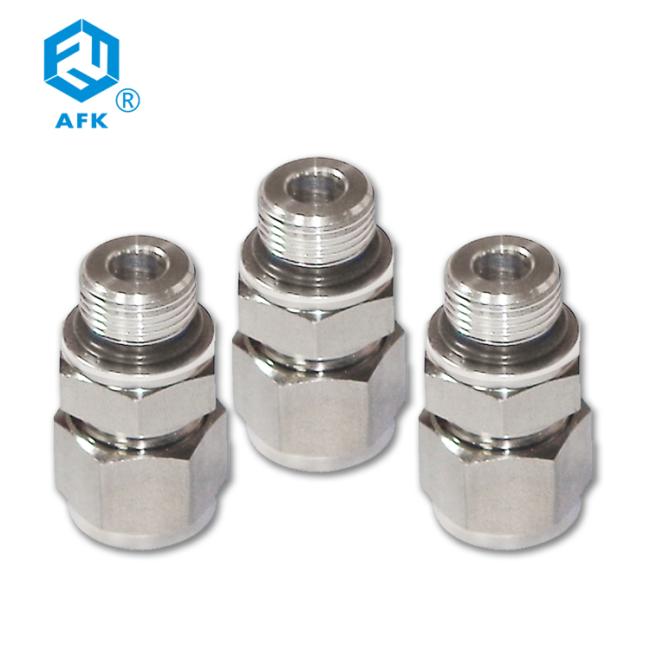

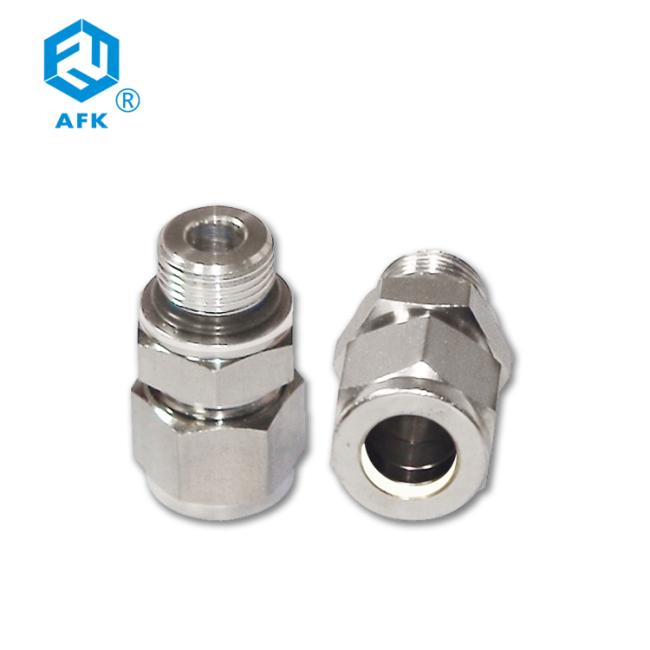

Product Name: MOP O-Seal Pipe Thread Connector Material:stainless steel 316, ss304 Working pressure :3000PSI End Connection :Tube O.D. X male (BSPP, NPT, BSPT), Tube O.D. X female (BSPP, NPT, BSPT) |
Connects Fractional Tube to Female NPT Thread
| Part No. |
Tube OD T
|
P (NPT)
|
Dimensions(mm) | |||||||||
|
E Min |
h | H | F | I | I1 | L | ||||||
| inch | mm | inch | mm | inch | mm | |||||||
| MOS-0202N | 1/8 | 3.17 | 1/8 | 2.3 | 3/4 | 19.05 | 7/16 | 11.11 | 12.7 | 26.2 | 7.1 | 32.8 |
| MOS-0402N | 1/4 | 6.35 | 1/8 | 4.8 | 3/4 | 19.05 | 9/16 | 14.28 | 15.2 | 27.7 | 7.1 | 35.1 |
| MOS-0404 | 1/4 | 6.35 | 1/4 | 4.8 | 15/16 | 23.81 | 9/16 | 14.28 | 15.2 | 31.0 | 9.7 | 38.4 |
| MOS-06-04 | 3/8 | 9.52 | 1/4 | 7.1 | 15/16 | 23.81 | 11/16 | 17.46 | 16.8 | 32.5 | 9.7 | 39.9 |
| MOS-06-06 | 3/8 | 9.52 | 3/8 | 7.1 | 1-1/8 | 28.57 | 11/16 | 17.46 | 16.8 | 34.0 | 10.4 | 41.4 |
| MOS-06-08 | 3/8 | 9.52 | 1/2 | 7.1 | 1-5/16 | 33.33 | 11/16 | 17.46 | 16.8 | 39.6 | 13.5 |
47.0 |
| MOS-08-08 | 1/2 | 12.70 | 1/2 | 10.4 | 1-5/16 | 33.33 | 7/8 | 22.22 | 22.9 | 39.6 | 13.5 | 49.8 |

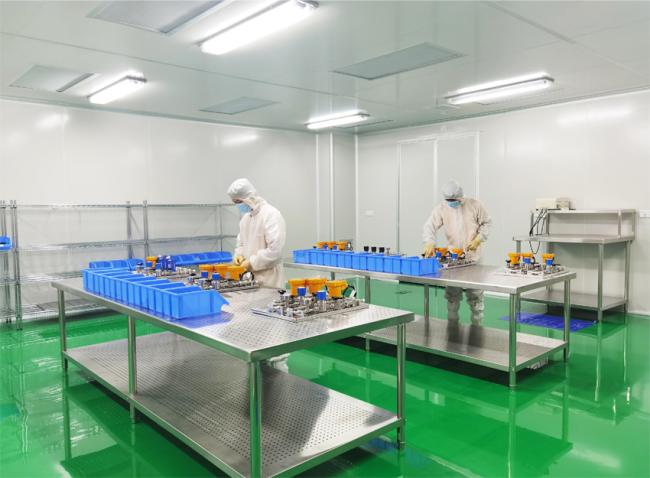

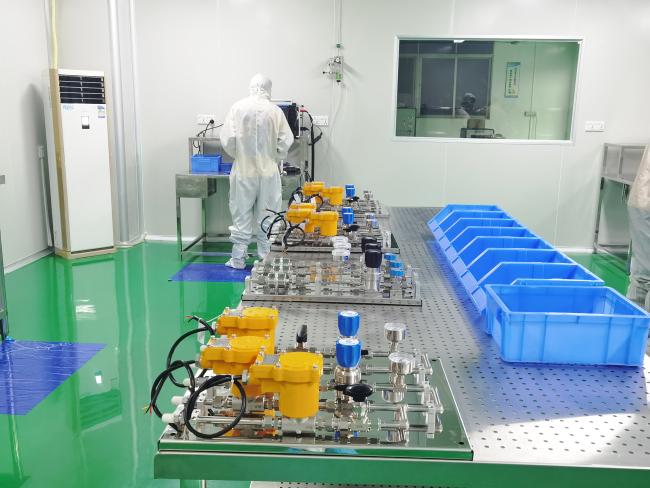

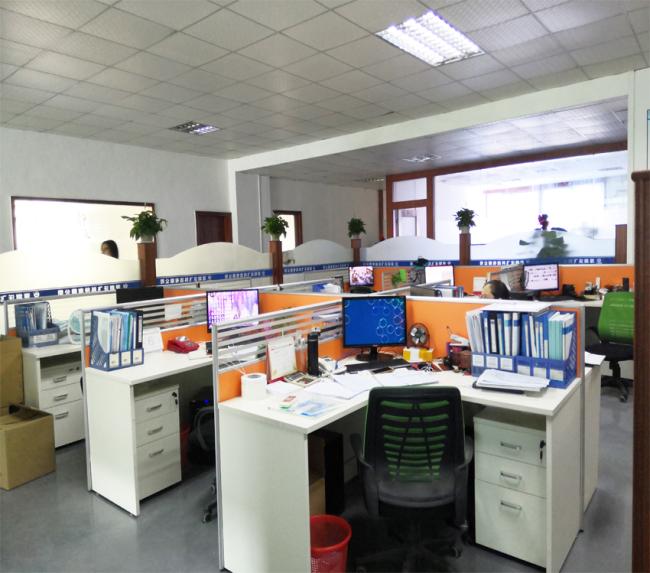

Our Company
 |
 |
 |
 |
