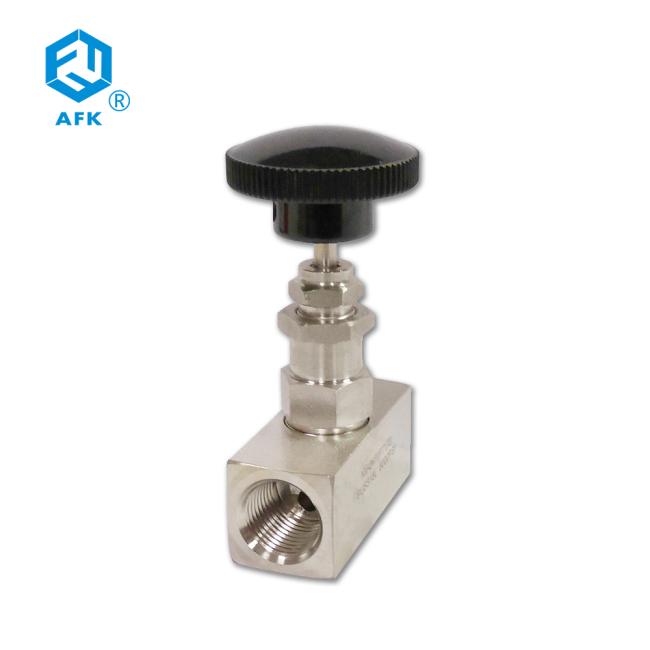

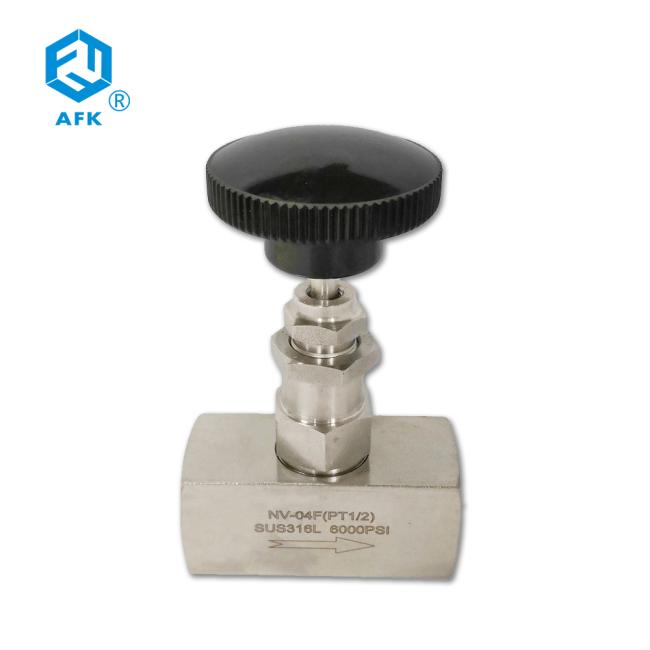

6000psi AFK 2 Way Manual Needle Valve 3/8in For Gas
Price:
Negotiable
MOQ:
1~10
Delivery Time:
1WEEK
Brand:
AFK
Product Description
Prodcut Description
Features
| One-piece forged body Easy external adjustments by packing nuts Live-loaded packing system Handle of afferent colors available for option Compact design Panel mount available as an option Leak-tight performance testing for every valve with Nitrogen/Air at the maximum working pressure Working pressure up to: NG Series--Stainless Steel ,Brass,Alloy400:3000 psi(207bar) NGH Series--Sainless Steel:6000psi(342 bar) Working temperature: PTFE:-65℉--450℉(-54℃--232℃) PEEK:-65℉--500℉(-54℃--260℃) |
| Type | Conn./Size | Orifice | Dimensions(mm) | |||||||
| Inlet/Outlet | mm | In. | A | B | C | D | E | F | ||
| FEMALE THREAD | Fractional | 1/8" | 4 | 0.16 | 46.0 | 23.0 | 72.7 | 36 | 24.2 | 11.5 |
| 1/4" | 4 | 0.16 | 46.0 | 23.0 | 72.7 | 36 | 24.2 | 11.5 | ||
| 3/8" | 6 | 0.24 | 52.0 | 26.0 | 86.5 | 50 | 28.4 | 13.0 | ||

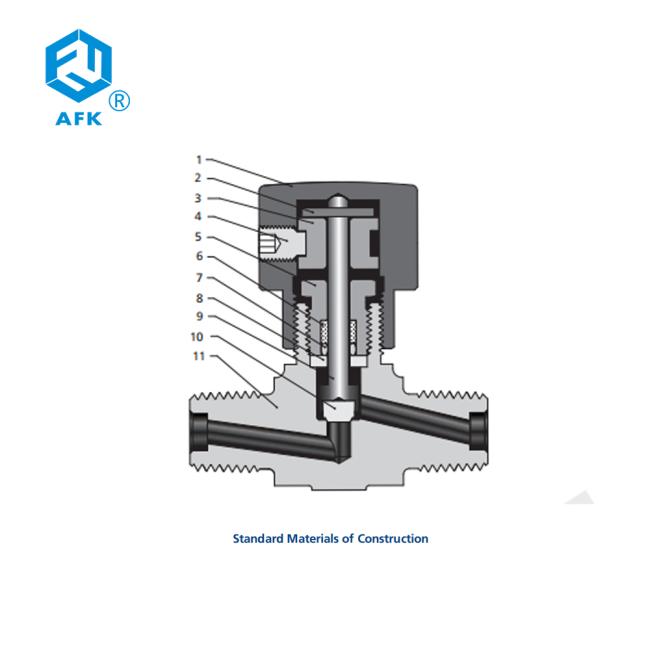

| Item | Component | Valve Body Material | ||||
| 316SS | 304SS | 321SS | Brass | Alloy 400 | ||
| 1 | Handle | Anodized aluminum | ||||
| 2 | Stop Pin | Stainless Steel | ||||
| 3 | Spool | Aluminum | ||||
| 4 | Set Screw | Stainless Steel | ||||
| 5 | Packing Bolt | 316SS/A276 | 304SS/A276 | 321SS/A276 |
Brass C36000/B16 |
Alloy 400/b164 |
| 6 | Packup Ring | PTFE/D1710 | ||||
| 7 | O-ring | Fluorocarbon FKM , Buna N or Ethylene Propylene | ||||
| 8 | Washer | 316SS/A276 | ||||
| 9 | Stem | 316SS/A276 | ||||
| 10 | Stem Tip | PCTFE OR PEEK | ||||
| 11 | Body | 316SS/A182 | 316SS/A182 | 316SS/A182 |
Brass C37700/B283 |
Alloy 400/B564 |
| Lubricant | Molybdenum disulfife-based | |||||

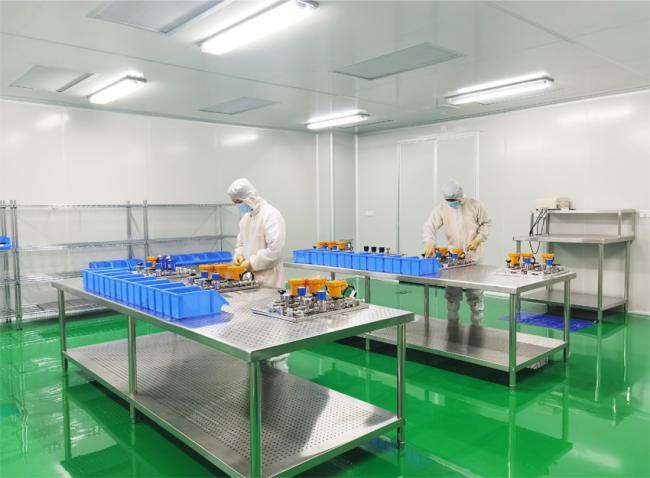

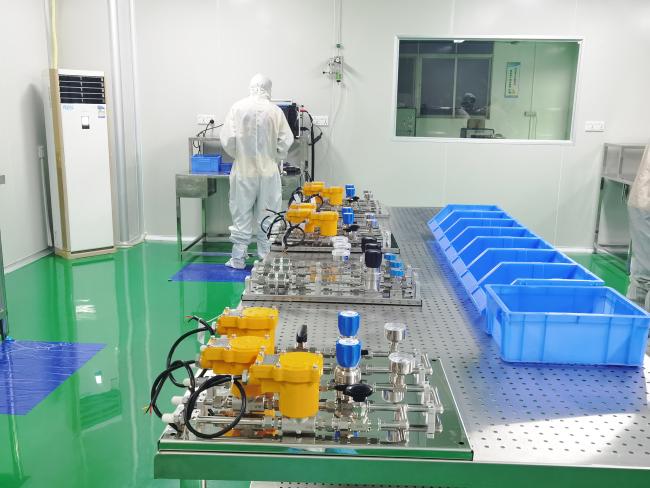

Our Company
 |
 |
 |
 |
