500psig Changeover Gas Panel Pressure Regulator NItrogen 200 Bar
Price:
Negotiable
MOQ:
1
Delivery Time:
1WEEK
Brand:
AFK
Product Description
Product Description
|

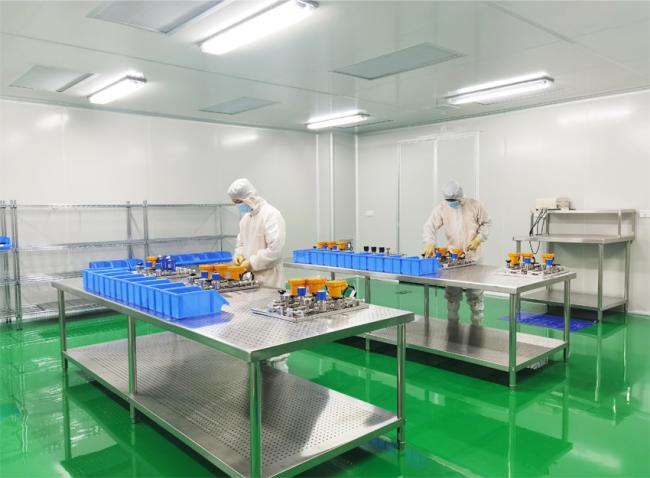

It is suitable for high pressure gas cylinders and pressure relief gas supply on both sides, through the automatic changeover to realize continuous gas supply, with the function of purging. The maximum input pressure of 20.7 Mpa (3000 psi), corrosion, clean workshop assembly test, suitable for laboratory, high purity gas such as gas analysis. |
| Materials of Construction | Features |
| Body: stainless steel Seat: PU, PTFE, PCTFE Inlet Connection: 1/4"tube ftting, 1/4"FSR, 1/2"FSR Outlet Connection: 1/4" tube fitting,1/4"FSR Body of Diaphragm Valve: stainless steel |
Equipped relief pressure valve Pressure regulato and pipe through the pressure test and leakage test 2"stainless steel pressure gauge, reading clearly The knob of diaphragm valves with on/off logo |
| Spec fications | |

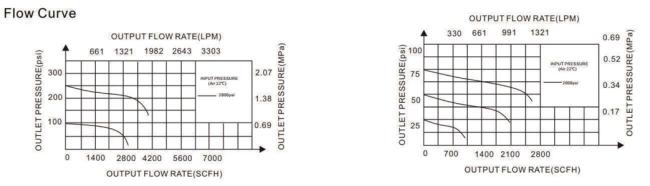

| Spec fications Max. Inlet Pressure:3000, 2200 psi Max. Outlet Pressure:25, 50, 100, 150, 250 psi Working Temperature: -40°C~ 74°C (-40°F ~165°F) Flow Rate: see flow Curve Chart Pressure Regulator Leakage Rate: 2 X 10-8 atm.cc/sec He Cv: 0.14 |
|
Ordering Information
| WL300 | 1 | 1 | 1 | S | H | 1 | 1 | -N2 |
| Series | Function Options | Outlet Connection |
Inlet Connection | Body Material |
Input Pressure |
Outlet Pressure |
Gauge | Gas Options |
|
WL300 Series Semi-automatic Changeover |
1Wih emptying, purging ! distribution function. | 1:1/4"NPT(F) 2:14" Tube ftting | 1:1/4"Welding | S:stainless steel |
H:3000psi | 1:25psi | Blank: None | |
| 2.Without Emptying, purging distribution function | 2:14" Tube ftting | 2:14"NPT(M) | M:2200psi | 2:50psi | 1:MPa | N2:nitrogen | ||
| 3.Emptying, purging distribution+pressure sensor | 3:3/8"NPT (F ) | 3:3/8"Welding | C:nickel plated brass | L.1000psi | 3.100psi | 2:Bar/psi | O2:oxygen | |
| 4.With pressure sensor | 4:3/8" Tube ftting | 4:3/8"NPT(M) | O: Other | 4.150psi | 3.psi/KPa | H2:hydrogen | ||
| 5.Others | 5:1/2INPT (F) | 5:1/2"Welding | 5:250psi | 4:Other | C2H2:acetylene | |||
| 6:1/2"Tube fiting | 6:1/2"NPT(M) | 6:Other | CH4.methane | |||||
| 7:Other, | 7:1/4"Tube ftting | Arargon | ||||||
| 8:3/8"Tube ftting | He:helium | |||||||
| 9:1/2"Tube fiting | Airair | |||||||
| 10:Other |

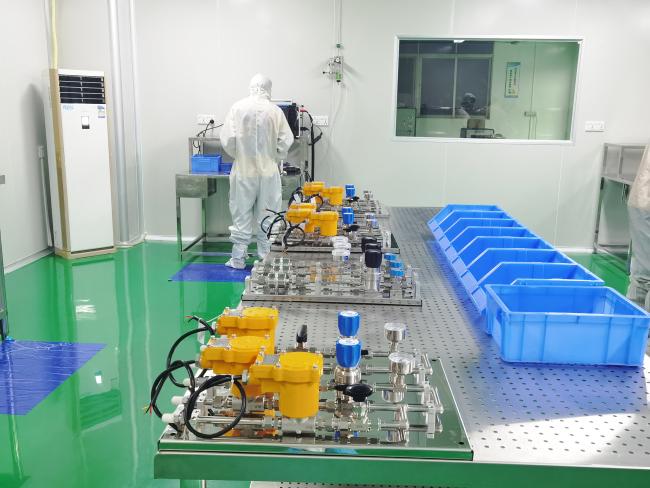

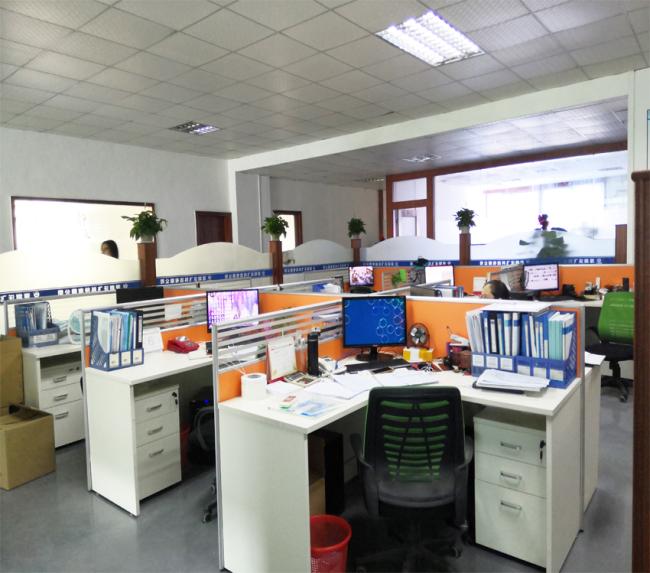

Our Company
 |
 |
 |
 |
