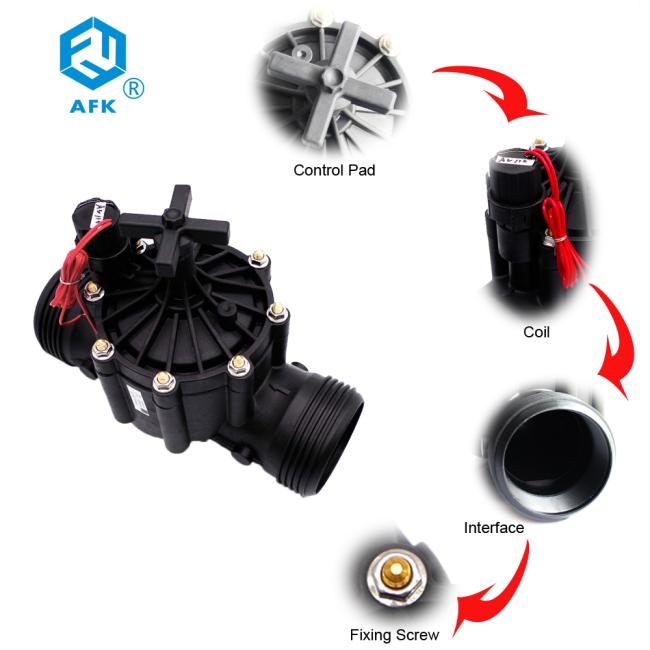

Nylon Plastic 12V Agriculture Water Solenoid Valve AFK 3 Inch 1400Kpa
Product descripation
| Description One |
Description Two |
|
Medium:Water Temperature: Suitable water≤42℃, surroundings≤52℃ |
Model: 300PH Pressure: 0.1~1.0Mpa Connect size: 3" Thread: G , Flange Orifice size: 80mm Coil: AC220, AC110V, AC24V, 50/60HZ, 10VA Self-holding type coil: DC6-20V, Pulse Width (20-500mSec) Working model(+red&-black valve open) (-red&-black valve closed) |
Description Three |
DESIGN FEATURES |
|
Material-body valve -nylon enclosed-NBR Static iron core-430F |
1. Irrigation solenoid valve 2. Fit for stadium, farm, industrial dust and water treatment equipment. 3. Normally closed. 4.Pipe size 3". 5. Service voltage : AC220, AC110V, AC24V 6.Thread connnector :G, flange 7.Material-body valve -nylon |
 |
Power | Current Amp | Coil impedance 20C | ||
| opening curent | Holding current | ||||
| DC9V | 3 6W | 560mA | 400mA | 240 | |
| DC12V | 3.6W | 420mA | 300mA | 410 | |
| DC24V | 3 6W | 252mA | 180mA | 1300 | |
 |
Power | Current Amp | Coil impedance 20C | ||
| opening curent | Holding current | ||||
| AC24V | 6.72W | 0.41A . | 0.28A | 300 | |
| AC110V | 3W | 0.072A | 0.049A | 8400 | |
| |AC220V | 3W | 0.037A | 0.025A | 2.73Q | |
 |
Voltage range : 9-20VDC Required capacitance : 4700u Coil Resistance ; 6Ω Coil Inductance : 12mH Puse Width: 20-500m Sec Working model: + red & black valve core lock position( valve opening)+ red & black release valve core lock position( valve closing) |
