40mm Orifice NBR Fluororubber Water Solenoid Valve Steel Diaphragm

Price Negotiable

Price: Negotiable

MOQ: 1

Delivery Time: 1WEEK

Brand: AFK

Product Description

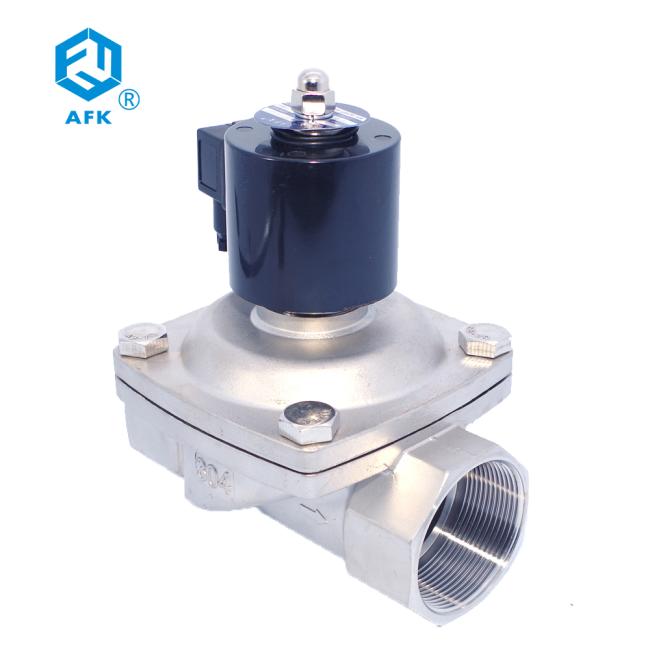

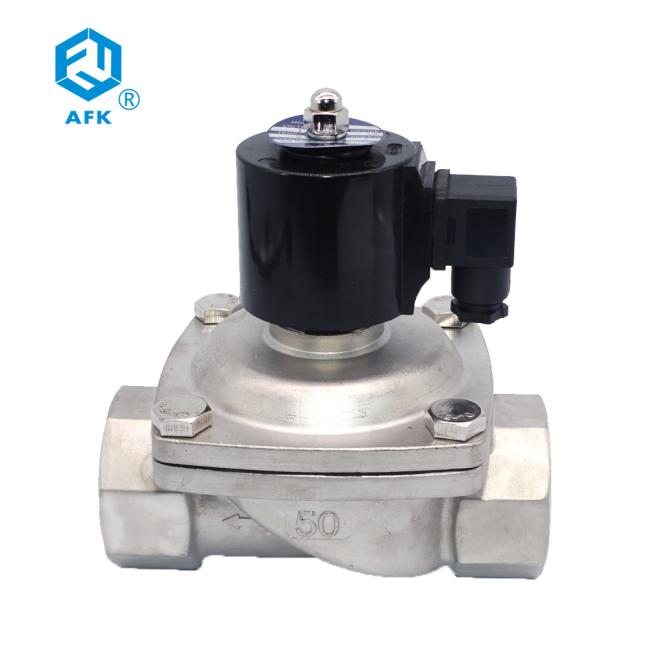

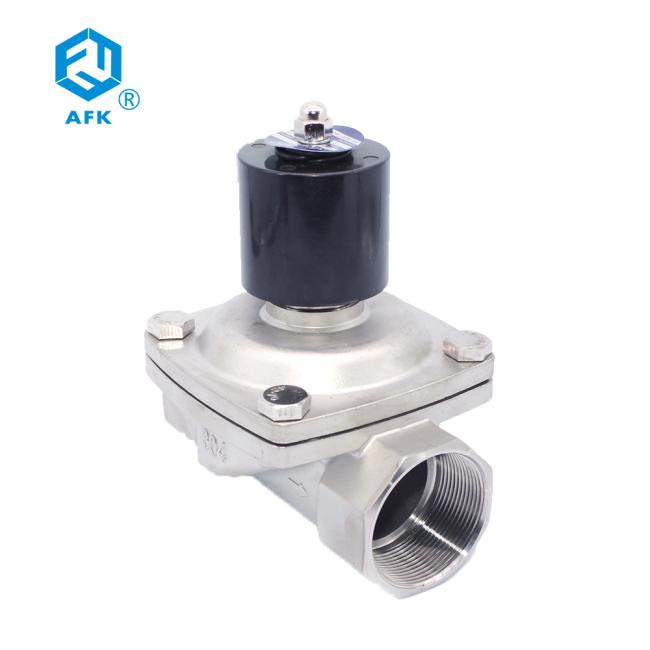

304 Stainless Steel 1-1/2 inch Normally Closed Water Solenoid Valve 220v

1) Model: 2W-40B
2) Pipe size: 1-1/2 inch
3) Orifice size : 40 mm
4) Connection: G , NPT
5) Medium: Air, water, oil
6)Working Pressure:
(water, air )0~10kgf/cm²(Oil) : 0~7 kgf/cm²
7)Body Material : Stainless steel
8)Seal:Below 80℃ use NBR,Below 120℃use EPDM,Below 150℃ use fluororubber

	DESIGN FEATURES
	1. Direct acting
	2. Fit for air, water, oil , the neutral gas liquid.
	3. Type: normally closed.
	4.Pipe size from 1/8' to 2' .
	5. Service voltage : AC380V, 220V,110V,24V DC24,12V
	6.Thread connnector : G, NPT
	7. Material: Stainless steel
	8.Large flow.

Model NO.	2W-025-06	2W-025-08	2W-040-10	2W-160-10	2W-160-15
Pipe size	1/8'	1/4'	3/8'		1/2'
Orifice size	2.5mm	4mm	4mm	16mm	16mm
CV value	0.23		0.6	4.8	4.8
Fluid	Air water oil , the neutral gasliquid
Service voltage	AC380V AC220V AC110V AC24V DC24V DC12V ( allowt 10% )
Operating	Direct acting				Type
Body Material	Stainless Steel				viscosity
Working pressure	( Water, air ): 0~10 kgf/cm2 ( oil ): 0~7 kgf/m°
Material of seal	Standard : below 80℃ fluid temperature use NBR , below 120℃ use EPDM, below 150℃ use fluororubber

Model NO.	2W-200-20	2W-250-25	2W-320-32	2W-400-40	2W-500-50
Pipe size	3/4'	1'	1 1/4''	1 1/2''	2''
Orifice size	20mm	25mm	32mm	40mm	50mm
CV value	7.6	12	24	29	48
Fluid	Air water oil, the neutral gasliquid
Servise voltage	AC380V AC220V AC110V AC24V DC24V DV12V ( allow ± 10%)
Operating	Type	Normally Closed
Body Material	viscosity	( Below )20CST
Working pressure	( water, air ) :0~10 kgf/cm² ( oil ) : 0~7 kgf/m²
Material of seal	Standard : below 80℃ fluid temperature use NBR, below 120℃ use EPDM, below 150℃ use fluororubber

Technical parameter

1) Model: 2W series
2) Pipe size: 1/8" to 2"
3) Orifice size : from 16mm to 50mm.

4) Medium: Air, water, oil
5)Working Pressure :
(water, air )0~10kgf/cm²
(Oil) : 0~7 kgf/cm²
6)Body Material : Stainless steel
7)Seal: NBR, EPDM, fluororubber
