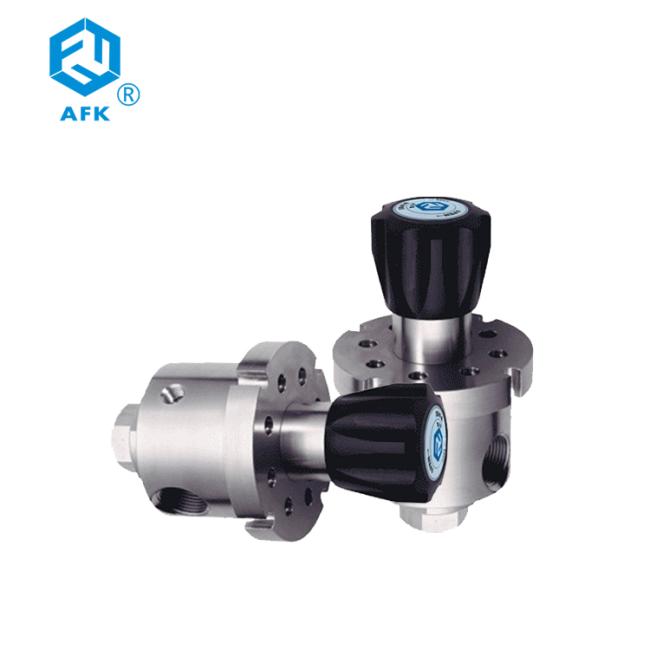

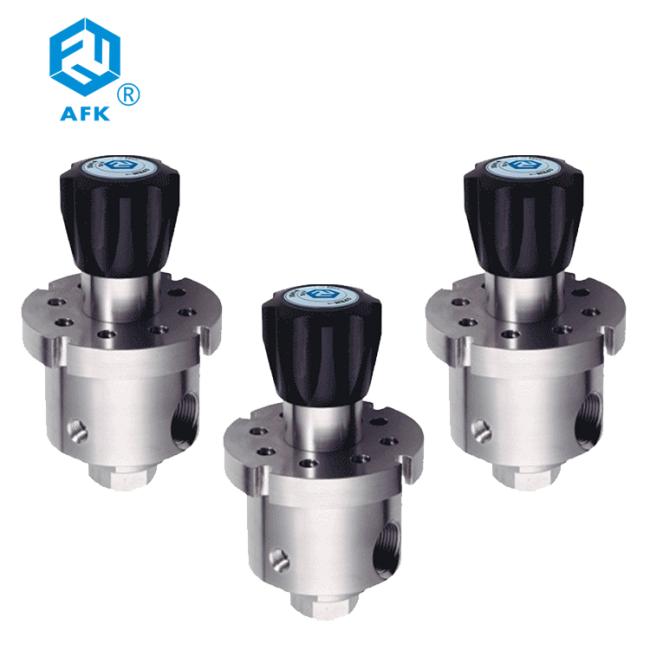

500psi NBR CE Stainless Steel Pressure Regulator For Laboratory R61

Price Negotiable

Price: Negotiable

MOQ: 1

Delivery Time: 1WEEK

Brand: AFK

Product Description

R61 Serie stainlees steel pressure reducer has a diaphragm pressure reducing construction stable output pressure.

It is suitable for mass flow output working conditions

Design Features Of Pressure Regulator

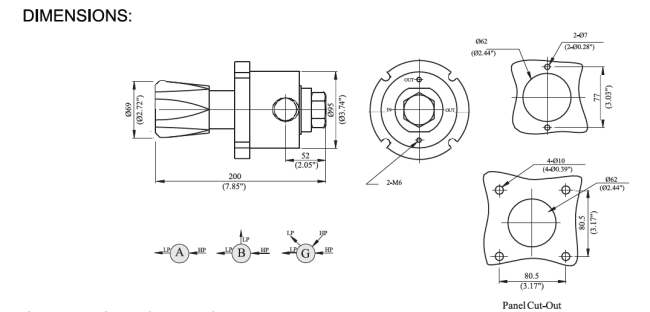

Single-stage pressure-reducing structure Diaphragm with Nylon and NBR two layers construction Body thread: inlet and outlet connection 1” NPT(F) Pressure gauge connection: 1/4" NPT(F) Panel mounting and wall mounting available

Specification

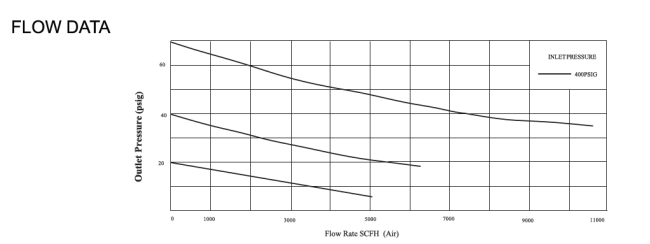

Maximum inlet pressure: 500psig Output pressure: 0~25, 0~50, 0~100,0~125, 0~250psig Safety testing pressure: 1.5 times of maximum inlet pressure Working temperature: -10~+250 deg F(-23~+121 Deg C) Leakage rate: bubble tight Cv value=5.1

Material

Body : 316L , Brass

Bonnet : 316L , Brass

Diaphragm : NBR(Nylon inside)

Seat : NBR

Spring : 316L

Stem : 316L

Typical applications

Gas bus-bar

Petrochemical industry

Testing equipment

R61	L	B	F	G	G	06	06
Item	Body Material	Body Hole	Inlet Pressure	Outlet Pressure	Pressure guage	Inlet size	Outlet size
R61	L:316	A	F:500psig	G:0~250psig	G:MPa guage	06:3/4"NPT(F)	06:3/4"NPT(F)
	B:Brass	B		H:0~150psig	P:Psig/bar guage	07:3/4"NPT(M)	07:3/4"NPT(M)
		G		I:0~100psig	W:No guage	08:1"NPT(F)	08:1"NPT(F)
				K:0~50psig		09:1"NPT(M)	09:1"NPT(M)
				L:0~25psig		Other type is available	Other types for options
