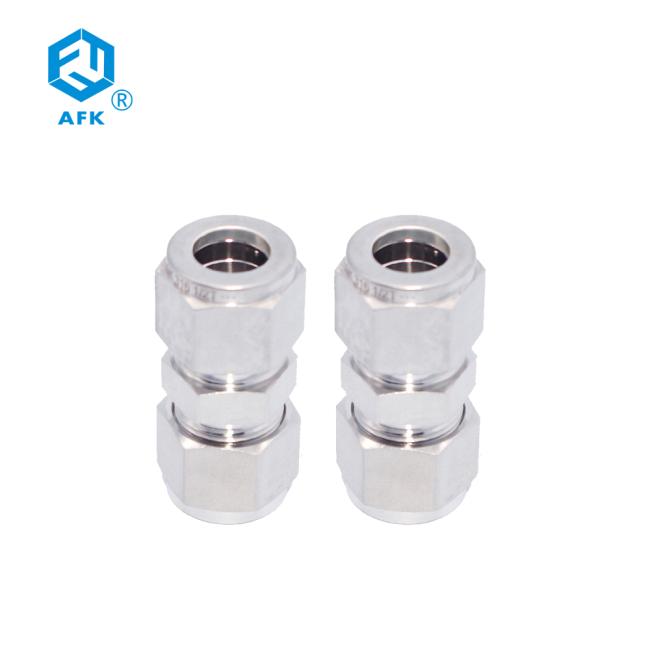

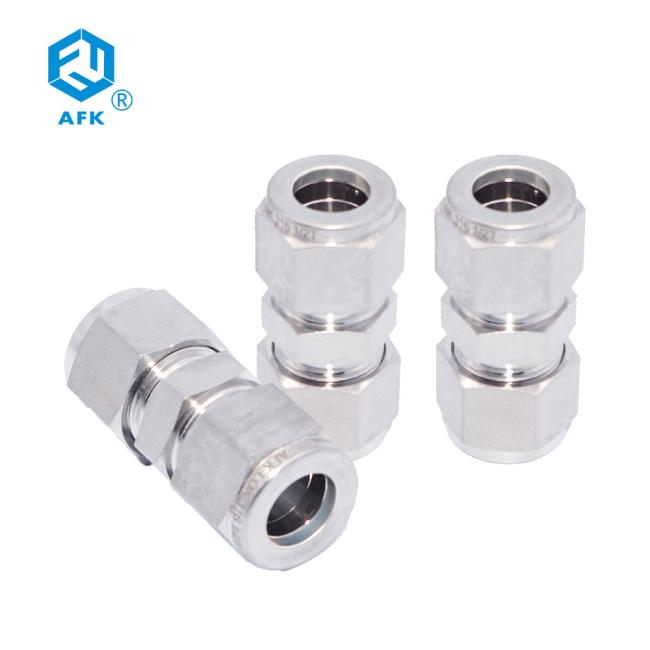

1/2" Ferrule Forged Hexagon Straight Pipe Fittings AFK Stainless Steel 3000PSI
Product Name: union
Model: U
Connection :OD, Double Ferrule
Head Code: Hexagon
Working Pressure: 3000PS
Connects Fractional(inch) Tube
| Part No. |
TubeOD T |
Dimensions (mm) | ||||||||
|
E Min. |
h | H | F | I | L | |||||
| Inch | mm | inch | mm | Inch | mm | |||||
| U-01 | 1/16 | 1.58 | 1.3 | 5/16 | 7.93 | 5/16 | 7.93 | 8.6 | 17.5 | 25.1 |
| U-02 | 1/8 | 3.17 | 2.3 | 7/16 | 11.11 | 7/16 | 11.11 | 12.7 | 22.4 | 35.6 |
| U-03 | 3/16 | 4.76 | 3.0 | 7/16 | 11.11 | 1/2 | 12.70 | 12.7 | 24.1 | 37.3 |
| U-04 | 1/4 | 6.35 | 4.8 | 1/2 | 12.70 | 9/16 | 14.28 | 15.2 | 26.2 | 40.9 |
| U-05 | 5/16 | 7.93 | 6.4 | 9/16 | 14.28 | 5/8 | 16.87 | 16.3 | 28.2 | 42.9 |
| U-06 | 3/8 | 9.52 | 7.1 | 5/8 | 15.87 | 11/16 | 17.46 | 16.8 | 30.2 | 45.0 |
| U-08 | 1/2 | 12.70 | 10.4 | 13/16 | 20.63 | 7/8 | 22.22 | 22.9 | 31.0 | 51.3 |
| U-10 | 5/8 | 15.87 | 12.7 | 15/16 | 23.81 | 1 | 25.40 | 24.4 | 31.8 | 52.1 |
| U-12 | 3/4 | 19.05 | 15.7 | 1-1/16 | 26.98 | 1-1/8 | 28.57 | 24.4 | 33,3 | 53.6 |
| U-14 | 7/8 | 22.22 | 18.3 | 1-3/16 | 30.16 | 1-1/4 | 31.75 | 25.9 | 35.1 | 55.4 |
| U-16 | 1 | 25.40 | 22.4 | 1-3/8 | 34.92 | 1-1/2 | 38.10 | 31.2 | 40.4 | 64.8 |
| U-20 | 1-1/4 | 31.75 | 27.7 | 1-3/4 | 44.45 | 1-7/8 | 47.63 | 41.1 | 48.0 | 92.2 |
| U-24 | 1-1/2 | 38.10 | 34.0 | 2-1/8 | 53.97 | 2-1/4 | 57.15 | 50.0 | 53.6 | 108.0 |
| U-32 | 2 | 50.80 | 46.0 | 234 | 69.85 | 3 | 76.20 | 67.6 | 74.7 | 149.4 |
Connects Metric Tube
| Part No. |
Tube OD T |
Dimensions (mm) | |||||
|
E Min. |
h | H | F | I | L | ||
| mm | inch | mm | |||||
| U-M02 | 2 | 1.7 | 11.11 | 11.11 | 12.9 | 22.4 | 35£ |
| U-M03 | 3 | 2.4 | 11.11 | 11.11 | 12.9 | 22.1 | 35.3 |
| U-M04 | 4 | 2.4 | 11.11 | 1270 | 13.7 | 24.1 | 37.3 |
| U-M06 | 6 | 4.8 | 12.70 | 14.28 | 15.3 | 26.2 | 41.0 |
| U-M08 | 8 | 6.4 | 14.28 | 15.87 | 162 | 282 | 43.2 |
| U-M10 | 10 | 7.9 | 17.46 | 19.05 | 172 | 31.0 | 46.2 |
| U-M12 | 12 | 9.5 | 20.63 | 22.22 | 22.8 | 31.0 | 51.2 |
| U-M14 | 14 | 11.1 | 23.81 | 26.40 | 24.4 | 31.8 | 52.0 |
| U-M15 | 15 | 11.9 | 23.81 | 25.40 | 24.4 | 31.8 | 52.0 |
| U-M16 | 16 | 12.7 | 23.81 | 25.40 | 24.4 | 31.8 | 52.0 |
| U-M18 | 18 | 15.1 | 26.98 | 30.16 | 24.4 | 33.3 | 53.5 |
| UW22 | 22 | 18.3 | 30.16 | 31.75 | 26.0 | 34.8 | 55.0 |
| U-M25 | 25 | 21.8 | 34.92 | 38.10 | 31.3 | 40.4 | 65.0 |
| U-M28 | 28 | 21.8 | 44«45 | 47.63 | 36£ | 43.4 | 85.0 |
| U-M30 | 30 | 26.2 | 44/15 | 50.80 | 39.6 | 49.5 | 92.7 |
| U-M32 | 32 | 28.6 | 4445 | 50.80 | 42.0 | 51.3 | 97.3 |
| U-M38 | 38 | 33.7 | 55.56 | 57.15 | 49.4 | 58.4 | 114.0 |
 |
 |
FAQ
Q1. What products can you provide?
Re: Compression fittings(connections), hydraulic fittings, tube fittings, ball valves, needle valves etc.
Q2. Can you make the products based on our requests, such as size, connection, thread, shape and so on?
Re: Yes, We have experienced techincal team and can design and produce the products according to your requirements.
Q3. What about the quality and price?
Re: Quality is very good. Price is not low but pretty reasonable at this quality level.
Q4. Can you provide samples to test? For free?
Re: Of course, you can take several to test firstly. Your side shall bear the cost due to its high value.
Q5. Can you operate OEM orders?
Re: Yes, OEM is supported though we also have our own brand named AFK.
Q6. What payment methods for chose?
Re: For small order, 100% Paypal, Western Union and T/T in advance. For bulk purchase, 50%T/T, Western Union, L/C as deposit, and 50% balance paid before shipment.
Q7. How about the lead time?
Re: Usually, delivery time is 5-7 working days for sample, 7-10 working days for mass production.
Q8. How will you ship the goods?
Re: For small amount, international express is used mostly such as DHL, FedEx, UPS, TNT. For large amount, by air or by sea. Besides, you also can have your own forwarder pick up the goods and arrange the shipment.
