Jointless Stainless Steel Pressure Regulator 3000Psi Double Gauge PCTFE
Price:
Negotiable
MOQ:
1
Delivery Time:
1WEEK
Brand:
AFK
Product Description
Material:
| Body | 316L.Brass | |
| Bonnet | 316L. Brass | |
| Diafragm | 316L | |
| Strainer | 316L(10 μm) | |
| Seat | PCTFE | |
| Spring | 316L | |
| Plunger valve core | 316L | |
| o-ring | viton | |
Design Feature:
Piston type pressure relief structure.
Body NPT:1/4''NPT(F)
Can set filters
Can use a panel or wall mounting
Typical Applications:
Labotary
Gas Chromatography
Gas laser
Gas bus-bar
petro-chemical industry
Test equipment

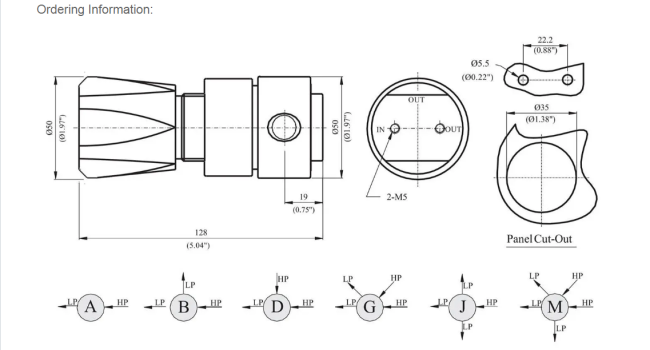

| RW41 | L | B | B | D | G | 00 | 02 | P |
| Item | Body Material | Body Hole | Inlet Pressure |
Outlet Pressure |
Pressure Guage |
Inlet size |
Outlet size |
Mark |
| RW41 | L:316 | A | B:6000 psi | D:0-3000psig | G:Mpa guage | 00:1/4 “NPT(F) | 00:1/4 “NPT(F) | P:Panel mounting |
| B:Brass | B | D:3000 psi | E:0-1500psig | P:Psig/Bar Guage | 00:1/4 “NPT(F) | 00:1/4 “NPT(F) | ||
| D | F:0-500psig | W:No guage | 10:1/8″ OD | 10:1/8″ OD | ||||
| G | G:0-250psig | 1:1/4″ OD | 11:1/4″ OD | |||||
| J | 12:3/8″ OD | 12:3/8″ OD | ||||||
| M | 15:6mm OD | 15:6mm OD | ||||||
| 16:8mm OD | 16:8mm OD | |||||||
| Other type is available | Other type is available |
