10000psig 1" AFK Stainless Steel Ball Valve Special Ferrule SS304 PTFE
Price:
Negotiable
MOQ:
1
Delivery Time:
1WEEK
Brand:
AFK
Product Description
Features of ball valve
On/off service ball valve with 2 way pattern
Diverter service ball valve with 3 way pattern
Body material in Stainless Steel SS316/316L
Max. allowed working pressure: 50kg, 3000psig, 6000psig and 10000psig
With Viton O-ring
100% factory tested
Seat Material Characteristics
PTFE
Common seat material used in many ball valves. Suitable for almost all applications.
| Type | Conn./Size | Orifice |

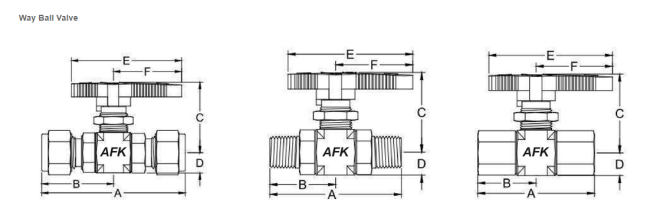

Dimensions (mm)
|
|||||||||
| Inlet/outlet | Mm | In. | A | B | C | D | E | F | Panel Hole Size | Max Panel Thickness | ||
|
AFK TUBE END
|
Fractional | 1/8" | 5.0 | 0.19 | 63.8 | 31.9 | 35.0 | 10.0 | 55 | 34 | 14.0 | 6.0 |
| 1/4" | 5.0 | 0.19 | 67.6 | 33.8 | 35.0 | 10.0 | 55 | 34 | 14.0 | 6.0 | ||
| 3/8" | 7.0 | 0.27 | 73.4 | 36.7 | 40.0 | 12.0 | 75 | 45 | 15.6 | 7.0 | ||
| 1/2" | 9.2 | 0.36 | 80.2 | 42.1 | 44.0 | 14.0 | 75 | 45 | 19.0 | 9.0 | ||
| 3/4" | 12.0 | 0.47 | 87.7 | 43.9 | 46.7 | 17.2 | 75 | 45 | 19.0 | 8.5 | ||
| Metric | 6mm | 5.0 | 0.19 | 67.0 | 33.5 | 35.0 | 10.0 | 55 | 34 | 14.0 | 6.0 | |
| 8mm | 5.0 | 0.19 | 69.6 | 34.8 | 35.0 | 10.0 | 55 | 34 | 14.0 | 6.0 | ||
| 10mm | 7.0 | 0.27 | 73.8 | 36.9 | 40.0 | 12.0 | 75 | 45 | 15.6 | 7.0 | ||
| 12mm | 9.2 | 0.36 | 79.8 | 39.9 | 44.0 | 14.0 | 75 | 45 | 19.0 | 9.0 | ||
| 14mm | 9.2 | 0.36 | 86.2 | 43.1 | 44.0 | 14.0 | 75 | 45 | 19.0 | 9.0 | ||
| 15mm | 9.2 | 0.36 | 86.5 | 43.2 | 44.0 | 14.0 | 75 | 45 | 19.0 | 9.0 | ||
| 16mm | 9.2 | 0.36 | 86.8 | 43.4 | 44.0 | 14.0 | 75 | 45 | 19.0 | 9.0 | ||
| 18mm | 12.0 | 0.47 | 87.8 | 43.9 | 46.7 | 17.2 | 75 | 45 | 19.0 | 8.5 | ||
| 20mm | 12.0 | 0.47 | 85.0 | 42.5 | 46.7 | 17.2 | 75 | 45 | 19.0 | 8.5 | ||
| 22mm | 12.0 | 0.47 | 85.6 | 42.8 | 46.7 | 17.2 | 75 | 45 | 19.0 | 8.5 | ||
| MALE THREAD | Fractional | 1/8" | 5.0 | 0.19 | 52.0 | 26.0 | 35.0 | 10.0 | 55 | 34 | 14.0 | 6.0 |
| 1/4" | 5.0 | 0.19 | 58.4 | 29.2 | 35.0 | 10.0 | 55 | 34 | 14.0 | 6.0 | ||
| 3/8" | 7.0 | 0.27 | 62.0 | 31.0 | 40.0 | 12.0 | 75 | 45 | 15.6 | 7.0 | ||
| 1/2" | 9.2 | 0.36 | 74.4 | 37.2 | 44.0 | 14.0 | 75 | 45 | 19.0 | 9.0 | ||
| 3/4" | 12.0 | 0.47 | 81.0 | 40.5 | 46.7 | 17.2 | 75 | 45 | 19.0 | 8.5 | ||
| MALE THREAD | Fractional | 1/8" | 5.0 | 0.19 | 45.0 | 22.5 | 35.0 | 10.0 | 55 | 34 | 14.0 | 6.0 |
| 1/4" | 5.0 | 0.19 | 52.0 | 26.0 | 35.0 | 10.0 | 55 | 34 | 14.0 | 6.0 | ||
| 3/8" | 7.0 | 0.27 | 57.0 | 28.0 | 40.0 | 12.0 | 75 | 45 | 15.8 | 7.0 | ||
| 1/2" | 10.0 | 0.39 | 64.0 | 32.0 | 42.3 | 43.5 | 75 | 45 | 15.8 | 6.0 | ||
| 3/4" | 12.0 | 0.47 | 73.0 | 36.5 | 46.7 | 17.2 | 75 | 45 | 19.0 | 8.5 | ||
