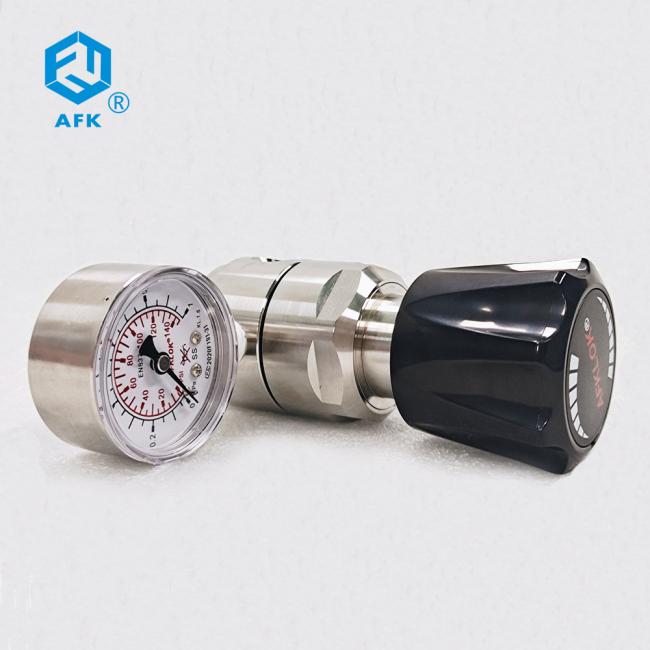

R11 Jointless Primary Stainless Steel Pressure Regulator PCTFE 316L 0.08CV

Price Negotiable
Price: Negotiable
MOQ: 1
Delivery Time: 1WEEK
Brand: AFK
Product Description
Design features
Single stage decompression structure
The matrix and diaphragm are hard sealed
Female thread: 1/4" NPT (F)
The internal structure is easy to purge
Built in filter screen
Panel type or wall type installation can be adopted
1
matrix
316L,Brass
2
Upper cover
316L,Brass
3
diaphragm
316L
4
filter screen
316L(μm)
5
valve seat
PCTFE,PTFE,Vespel
6
Spring
316L
7
Valve core ejector rod
316L



Specification
item
value
Warranty
1 years
Certification
CE
Customized support
OEM, ODM
Place of Origin
China

Guangdong
Brand Name
AFK
Model Number
R11
Product name
New R11 Single Gauge Two-Stage Stainless Steel Pressure Regulator
Material
Stainless Steel
Application
Laborary
Type
Two-stage
CV
0.08
Keyword
Stainless Steel Pressure Regulator
Service
Complete After-sales Service
Body material
SS 316L
MOQ
1pcs
Packing
1 Set/box
