Oxygen Nitrogen Pressure Regulator R11 SUS316 Inlet CGA580 Vespel Valve
Price:
Negotiable
MOQ:
1~10
Delivery Time:
15Day
Brand:
AFK
Product Description
R11 Series stainless steel pressure regulator is Single-stage diaphragm,vacuum structure stainless diaphragm output.It has piston pressure reducing structure,constant outlet pressure,mainly used for high input pressure,suitable for purified gas,standard gas,corrosive gas etc.
| Material Weight:0.9kg | |
| Body | 316L,Brass |
| Roof | 316L,Brass |
| Diaphragm | 316L |
| Filter mesh | 316(10μm) |
| Valve seat | PCTFE,PTFE,Vespel |
| Spring loaded | 316L |
| Valve disc regulation pole | 316L |

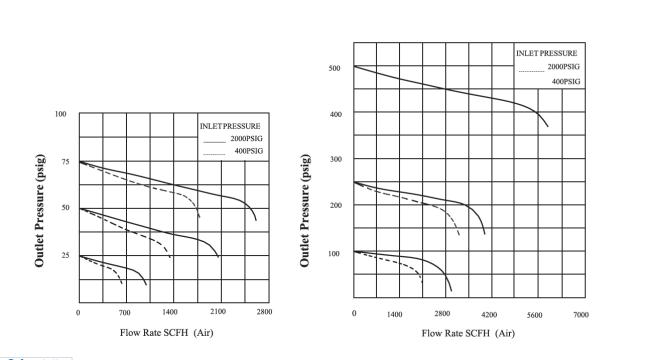

Flow Data
Selection Guide
| R11 | L | B | D | F | G | 00 | 00 | P |
| Item | Body Material | Body Hole | Inlet pressure | Outlet pressure | Pressure gauge | Inlet size | Out size | mark |
| R11 | L:316 | A | D:3000psi | F:0-500psi | G:MPa gauge | 00:1/4"NPT(F) | 00:1/4"NPT(F) | P:Panel mounting |
| B:Barss | B | E:2200psi | G:0-250psi | 00:1/4"NPT(M) | 00:1/4"NPT(M) | R:With relief valve | ||
| D | F:500psi | I:0-100psi | P:Psi bar gauge | 23:CGA330 | 10:1/8"OD | N:Neendle valve | ||
| G | K:0-50psi | 24:CGA350 | 11:1/4"OD | D:Diaphragm valve | ||||
| J | L:0-25psi | W:No gauge | 27:CGA580 | 12:3/8"OD | ||||
| M | 28:CGA660 | 15:16mm OD | ||||||
| 30:CGA590 | 16:8mm OD | |||||||
| 52:G5/8"-RH(F) | ||||||||
| 63:W21.8-14H(F) | ||||||||
| 64:W21.8-14LH(F) |
