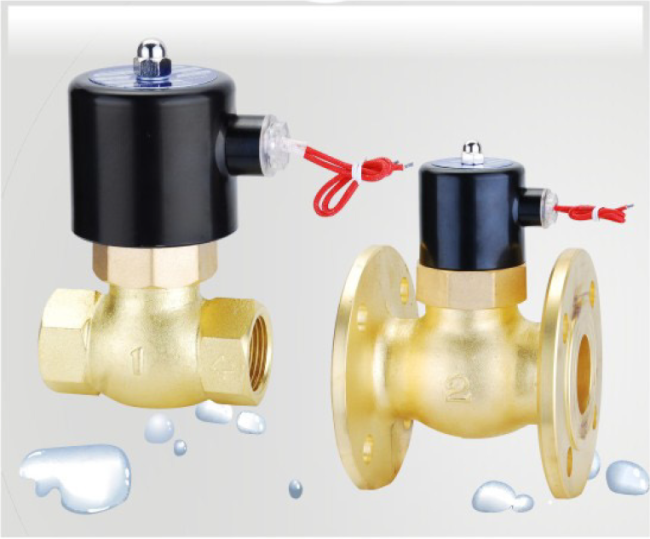

Polish Piston Steam Water Solenoid Valve 26W Brass DC12V Pilot
Safety of solenoid valve
|
1.Generally, the solenoid valve is not waterproof. When conditions do not permit, please select the waterproof type, which can be customized by the factory. 2.The maximum rated nominal pressure of the solenoid valve must exceed the maximum pressure in the pipeline, otherwise the service life will be shortened or other accidents will occur in production. 3.All stainless steel type shall be selected for corrosive liquid, and solenoid valves of other special materials shall be selected for strongly corrosive fluid. 4.Corresponding explosion-proof products must be selected for explosive environment. |
Characteristic
| The center structure is adopted to automatically compensate the seal, which greatly prolongs the service life of the valve. The balance design of piston clearance greatly enhances the reliability of the valve at higher temperatures. |
| 1 | Model | 2L-32 |
| 2 | Size | 1-1/4 inch |
| 3 | Thread | G |
| 4 | .Operation | Pilot type |
| 5 | Operating pressure range | 0.2-1.6Mpa |
| 6 | Insulation grade | B class |
| 7 | Power | 26W |
| 8 | Material | Brass |
| 9 | Medium | Liquid gas steam <20 cst |
| 10 | Response time | Open≤2 second ≤3 second |
| 11 | Voltage | AC240V/AC220V/AC120V/AC110V/AC24V/DC24V/DC12V |
Structural Specification Parameters
| Model | A | B | C | φD | φE | φF | φG | H | Pipe Size | Material |
| 2L-15 | 82 | / | / | 70 | / | / | / | 145 | G1/2" | Brass |
| 2L-20 | 82 | / | / | 70 | / | / | / | 147 | G3/4" | |
| 2L-25 | 91 | / | / | 70 | / | / | / | 158 | G1" | |
| 2L-32 | 112 | / | / | 73 | / | / | / | 178 | G1-1/4" | |
| 2L-40 | 112 | / | / | 71 | / | / | / | 175 | G1-1/2" | |
| 2L-50 | 118 | / | / | 91 | / | / | / | 190 | G2" | |
| 2L-25F | 118 | 12 | 2 | 115 | 70 | 4-18 | 65 | 195 | G1" | |
| 2L-32F | 138 | 14 | 2 | 133 | 100 | 4-18 | 78 | 215 | G1-1/4" | |
| 2L-40F | 139 | 14 | 2 | 150 | 110 | 4-18 | 89 | 225 | G1-1/2" | |
| 2L-50F | 148 | 14 | 2 | 163 | 125 | 4-18 | 98 | 235 | G2" |
