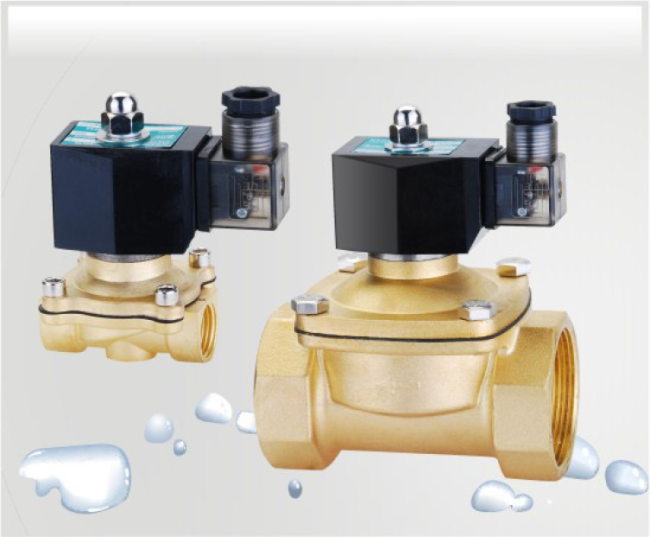

Normally Closed Gas Solenoid Valve 2T Series Brass 1/2" Port AC110V
Price:
Negotiable
MOQ:
1~10
Delivery Time:
15Day
Brand:
AFK
Product Description
Characteristic
| One-time open valve connection the opening structure, without pressure, seal with high performance, achieve leakage. |
Product use
| On the gas natural gas combustion automatic control media in the pipeline can also control of other fluid in low voltage system. |
Installation Method of Solenoid Valve
|
The medium flow direction shall be consistent with the arrow on the valve, installed horizontally, and the coil shall be upward. φ Explosion proof coil can be equipped for specifications below 25mm. |

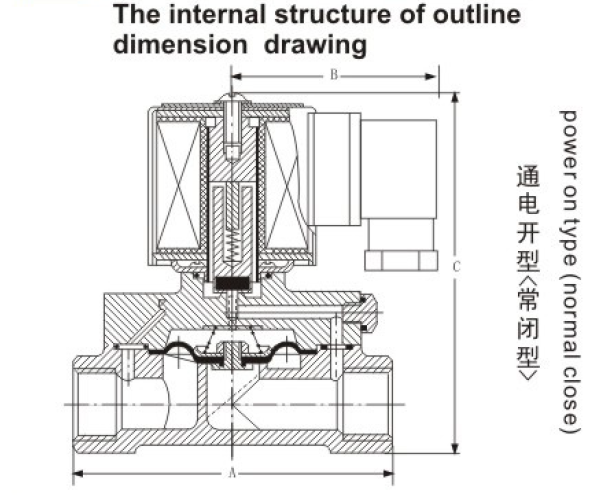

Structural Specification Parameters
| Model | A | B | C | Port Size | Material |
| 2T-15 | 62 | 55 | 102 | G1/2" | Brass |
| 2T-20 | 67 | 55 | 113 | G3/4" | |
| 2T-25 | 86 | 73 | 117 | G1" | |
| 2T-32 | 90 | 77 | 130 | G1-1/4" | |
| 2T-40 | 106 | 67 | 164 | G1-1/2" | |
| 2T-50 | 123 | 93 | 176 | G2" | |
| 2T-15B | 69 | 57 | 107 | G1/2" | Stainless Steel |
| 2T-20B | 73 | 57 | 115 | G3/4" | |
| 2T-25B | 98 | 77 | 125 | G1" | |
| 2T-32B | 115 | 87 | 153 | G1-1/4" | |
| 2T-40B | 121 | 94 | 162 | G1-1/2" | |
| 2T-50B | 168 | 123 | 187 | G2" | |
| 2T-15BF | 107 | 95 | 150 | DN15 | Stainless Steel Material Flange Connection |
| 2T-20BF | 107 | 102 | 150 | DN20 | |
| 2T-25BF | 138 | 108 | 165 | DN25 | |
| 2T-32BF | 149 | 131 | 200 | DN32 | |
| 2T-40BF | 160 | 141 | 200 | DN40 | |
| 2T-50BF | 189 | 160 | 240 | DN50 |
