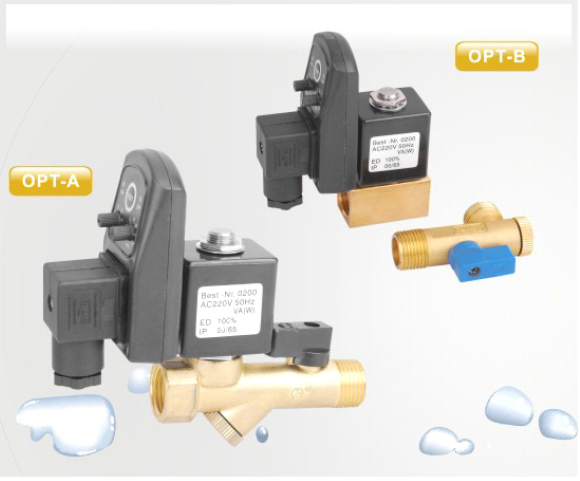

Medium Pressure Water Solenoid Valve OPT-B AC240v 1/2 Inch Drain
Scope of application
It is widely used in compressed air system components such as air compressor, cooler, separator, dryer and air storage tank. The discharge time and interval can be adjusted as needed.
|
Timer OPT Timer interval (off):0.5-45 minutes Emission interval (on):0.5-10 second Manual test button:switch Power supply:24-240v AC/DC 50/60Hz(voltage 380VAC special can order) The current consumption of the large 4mA The ambient temperature :-40℃-+60℃ Protection class:IP65 The shell material:Flame retardant ABS plastic The electrical connection DIN43650A Indicator light LED indicator to indicate the power on to off Design standard VDE 01 10C |
Valve OPT
Voltage range +/-10% Install site arbitrarily Type two position two way direct acting solenoid valve In/out interface size: 1/2" The maximum working pressure 16 bar The minimum/maximum ambient temperature 2℃-55℃ The maximum temperature 90℃ Body valve forging brass 5.0 mm orifice size Insulation level Heat group H class IP65 Voltage:24-230v AC/DC 50/60Hz (voltage380v ac special can order) |
