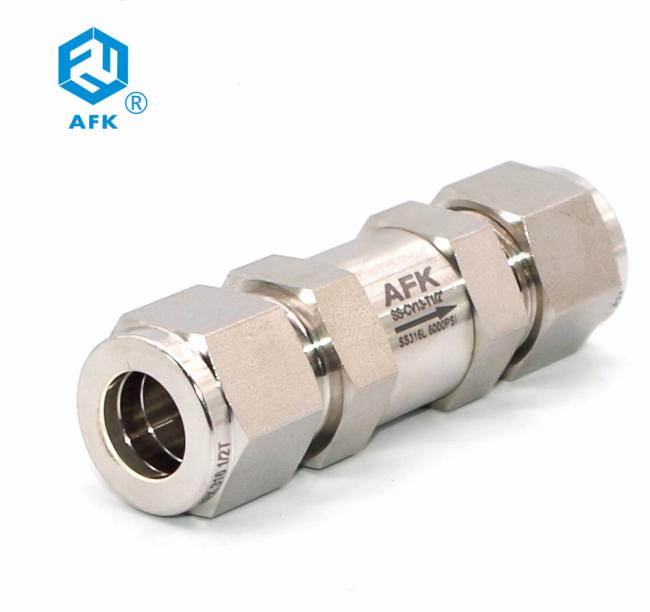

AKF Air Compressor Check Valve Stainless Steel 6000psi BSPT NPT For Gas
Price:
Negotiable
MOQ:
1~10
Delivery Time:
15Day
Brand:
AFK
Product Description
Characteristic of Stainless Steel Check Valve 6000psi
| 1 |
End connections avail be with AFK tube end.BSPT or NPT female & male thread for option |
| 2 | Variable fixed cracking pressre springs,range from 1 to 25psig ±5% |
| 3 | O-ring ensures leak proof shut off |
| 4 | Back stopped poppet minimizes spring stress |
Features of Air Compressor Check Valve
| 1 | Inline check valve stops reversed flow in orde to protect instrumentation |
| 2 | Body material in stainless steel SS316/316L cold drawn bar |
| 3 | Max.allowed working pressure 3000psi (206bar) |
| 4 | With viton O-ring |
| 5 | 100% factory tested |

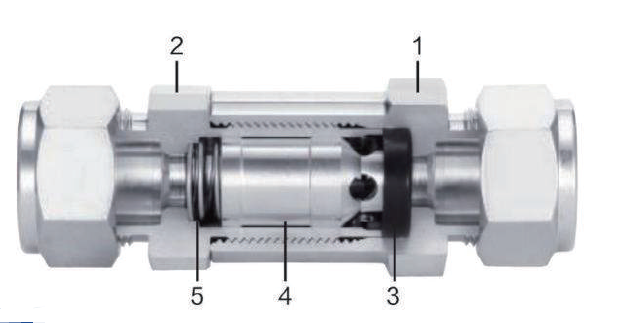

Material of Construction
| item | part description | Qty | material |
| 1 | inlet body | 1 | SS316/316L |
| 2 | outlet body | 1 | SS316/316L |
| 3 | seal ring | 1 | Fluororubber |
| 4 | poppet | 1 | SS316/316L |
| 5 | spring | 1 | SS304 |
| nominal cracking pressure | nominal cracking pressure |
| 1 | 401 |
| 10 | 7-15 |
| 25 | 20-30 |
Ordering Information
| C- | CV- | S6- | 04 | A- | 1# | |
| Classification | Prouduct Name | Material | Size(Fractional) | Size(Metric) | Connection Type | Cracking Pressure |
| Valve | check valve | S6:SS316 | 02:1/8" | 6:6mm | A:AFK tube end | 1#:1PSIG |
| S6L:SS316L | 04:1/4" | 8:8mm | MR:male BSPT thread | 10#:10PSIG | ||
| 06:3/8" | 10:10mm | FR:female BSPT thread | 25#:25PSIG | |||
| 08:1/2" | 12:12mm | MN:male NPT thread | ||||
| 12:3/4" | FN:female NPT thread | |||||
| 16:1" | ||||||
