316 Stainless Steel Gas Pressure Regulator Single Stage Diaphragm Silver Color

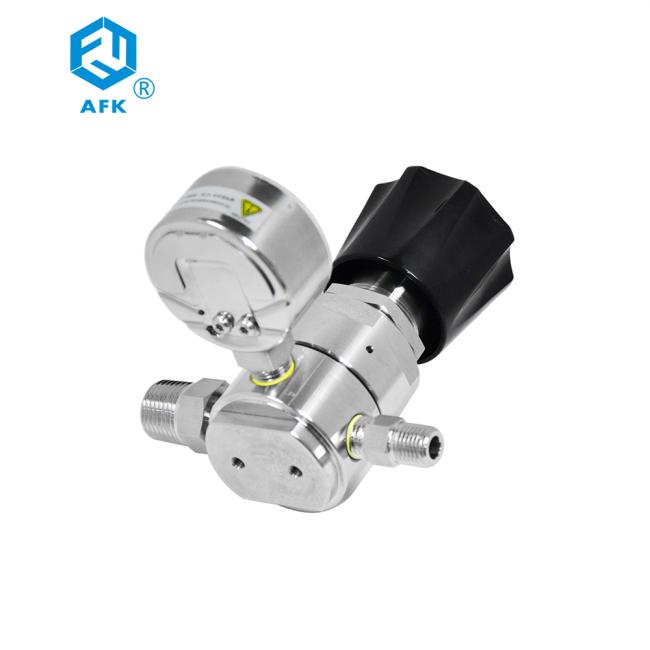

AFK R11 Stainless Steel 316 Single-stage Diaphragm N2O Gas Pressure Regulator
Description of Stainless Steel N2O Gas Pressure Regulator
R11 stainless steel single-stage pressure reducer 0-160psi, inlet and outlet connected external tooth joint.It has piston pressure reducing structure, constant outlet pressure,mainly used for high input pressure,suitable for purified gas, standard gas, corrosive gas etc.
| Technical Data of pressure regulator | ||
| 1 | Max inlet pressure | 500, 3000 psi |
| 2 | Outlet pressure | 0~25, 0~50, 0~100, 0~250, 0~500 psi |
| 3 | Proof pressure | 1.5 times of maximum rated pressure |
| 4 | Working temperature | -40°F-+165°F(-40°C-+74°C) |
| 5 | Leakage rate | 2*10-8 atm cc/sec He |
| 6 | Cv | 0.08 |
Ordering Information--300 bar regulator
|
R11 |
L |
B |
B |
D |
G |
00 |
02 |
P |
|
Item |
Body Material |
Body Hole |
Inlet Pressure |
Outlet |
Pressure Guage |
Inlet |
Outlet |
Mark |
|
R11 |
L:316 |
A |
D:3000 psi |
F:0-500psig |
G:Mpa guage |
00:1/4″NPT(F) |
00:1/4″NPT(F) |
P:Panel mounting |
|
|
B:Brass |
B |
E:2200 psi |
G:0-250psig |
P:Psig/Bar Guage |
01:1/4″NPT(M) |
01:1/4″NPT(M) |
R:With relief valve |
|
|
|
D |
F:500 psi |
K:0-50pisg |
W:No guage |
23:CGGA330 |
10:1/8″ OD |
N:Needle calve |
|
|
|
G |
|
L:0-25psig |
|
24:CGGA350 |
11:1/4″ OD |
D:Diaphregm valve |
|
|
|
J |
|
|
|
27:CGGA580 |
12:3/8″ OD |
|
|
|
|
M |
|
|
|
28:CGGA660 |
15:6mm OD |
|
|
|
|
|
|
|
|
30:CGGA590 |
16:8mm OD |
|
|
|
|
|
|
|
|
52:G5/8″-RH(F) |
|
|
|
|
|
|
|
|
|
63:W21.8-14H(F) |
|
|
|
|
|
|
|
|
|
64:W21.8-14LH(F) |
Main Features of 6000PSI pressure regulator
| 1 | Single -stage reduce Structure |
| 2 | Use hard-seal between body and diaphragm |
| 3 | Body Thread : 1/4" NPT ( F ) |
| 4 | Easy to sweep inside body |
| 5 | Filter mesh inside |
| 6 | Panel mountable or wall mounted |
Typical applications of Stainless Steel Regulator
| 1 | Laboratory |
| 2 | Gas Chromatograph |
| 3 | Gas Laser |
| 4 | Gas bus |
| 5 | Oil and chemical industry |
| 6 | Tested instrumentation |
