High Pressure 3500psi Double Gauge Regulator SS 316 Stainless Steel Pressure Reducers
R12 Double Gauge Stainless Steel 316 High Pressure Nitrogen Oxygen Argon Ammonia Gas afk Pressure Regulator 3500psi

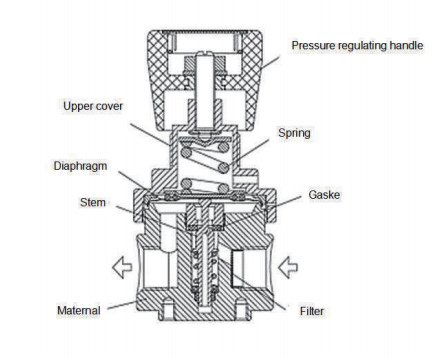

R12 Series stainless steel pressure reducers , single-stage diaphragm construction , stainless steel diaphragm pressure transmission , stable output pressure , applied to medium flow gas system.
Design Features
| 1 | single-stage pressure-reducing structure |
| 2 | metal-to-metal diaphragm seal |
| 3 | body thread:1/2 " NPT(F) |
| 4 | pressure gauge , safety valce interdace 1/4" NPT(F) |
| 5 | filter element installed internally |
| 6 | panel mounting and wall mounting available |
 |
Material | ||
| 1 | bady | 316L,brass | |
| 2 | bonnet | 316L,brass | |
| 3 | diaphragm | 316L | |
| 4 | strainer | 316L(μm) | |
| 5 | seat | PCTFE,PTFE | |
| 6 | spring | 316L | |
| 7 | valve stem | 316L | |
Ordering information
| R12 | L | B | D | F | G | 02 | 00 | P |
| Item |
Body Materia |
Body Hole |
Inlet pressure |
Outlet pressure |
Pressure gauge |
Inlet size |
Outlet size |
mark |
| R12 | L:316 | A | D:3000psi | G:0~250psig | G:MPa gauge | 02:3/8”NPT(F) | 02:3/8”NPT(F) | P:Panel mointing |
| B:Brass | B | F:500psi | H::0~125psig | 03:3/8”NPT(M) | 03:3/8”NPT(M) | R:With relief valve | ||
| D | I::0~100psig | P:Psig/bar gauge | 04:1/2”NPT(F) | 04:1/2”NPT(F) | ||||
| G | K::0~50psig | 05:1/2”NPT(M) | 05:1/2”NPT(M) | |||||
| J | L::0~25psig | W:No gauge | 12:3/8”OD | 12:3/8”OD | ||||
| M | 13:1/2”OD | 13:1/2”OD | ||||||
| Other type is available | Other type is available |
FRQ
Q: Are you trading company or manufacturer?
A: We are original manufacturer. We can do OEM/ODM business.Our company mainly produces Pressure Regulator.
Q: How long is your delivery time?
A: Group buying delivery time: 30-60 days; General delivery time: 20 days.
Q: What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery.
Q: What is the warranty ?
A: The free warranty is one year from the day of Commissioning qualified.If there is any fault for our products within the free warranty period, we will repair it and change the fault assembly for free.
