200 Bar Gas Cylinder Regulator Fittings Stainless Steel PRV With 63mm Manometer
AFK Pressure Regulator with 63mm Manometer 200 Bar Pressure Gauge Stainless Steel Argon Gas Cylinder Regulator Industria
WL400 is suitable for secondary pipeline, suitable for controlling gas flow. Max. inlet pressure 20.7Mpa (300PSI), resistance corrosive, clean workshop test, it is suitable for Laboratory, gas anysis etc high purity gas.
Spec Fications
| 1 | Max Inlet Pressure | 3000,2200psi |
| 2 | Max Outlet Pressure | 25,50,100,150,250psi |
| 3 | Working Temperature | -40℃~74℃(-40℉~165℉) |
| 4 | Flow Rate | see flow curve chart |
| 5 | pressure regulator leakage rate | 2x10-8atm.cc/sec He |
| 6 | Cv | 0.14 |
| Main Features | |

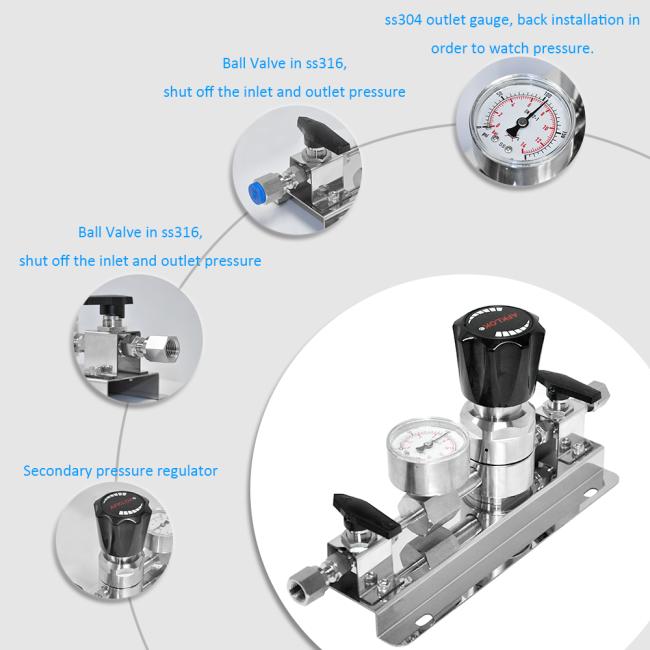

| 1 | Equipped R11 pressure regulator and high pressure ball valve. |
| 2 | Pipe through the pressure test and leakage test. |

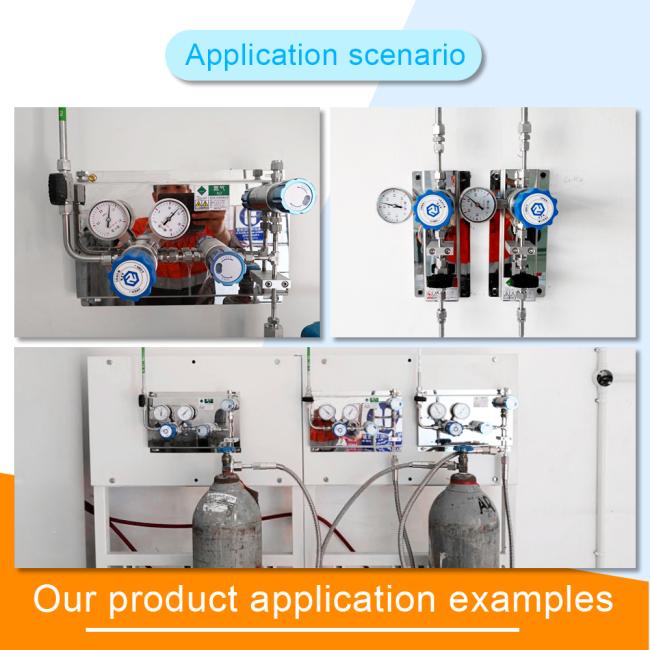

| 3 | Wall installation,easy to use and safe. |
| 4 | 2″ stainless steel pressure gauge, reading clearly |
Materials of Construction
| 1 | Body | stainlees steel |
| 2 | Seat | PU,PTFE,PCTFE |
| 3 | Inlet Connection | 1/4"tube fitting,1/4FSR,1/2:FSR |
| 4 | Outlet Connection | 1/4"tube,1/4"FSR |
| 5 | Body of Diaphragm Valve | stainless steel |
| Selection Table | |||||||
| WL4 | 2 | 1 | 5 | H | S | 1 | N2 |
| Series | Inlet connection | Outlet connection | Body | Inlet pressure | outlet pressure | Gauge | N2 |
| WL4 | 1:6mm barb fitting | 1: 1/4" welding | s: ss316 | H:1000PSI | 1:25PSI | 1:Mpa | O2 |
| 2:1/4"O.D. | 2: 3/8"welding | C:nickel plated brass | M:500psi | 2:50PSI | 2:bar/PSI | H2 | |
| 3:8mm barb fitting | 5.1/2" welding | L:300PSI | 3:100PSI | 3:PSI/kpa | C2H2 | ||
| 4:3/8"O.D. | 7: 1/4"O.D. | 4:150PSI | CH4 | ||||
| 5:10mm barb fitting | 8:3/8"O.D. | 5:250PSI | AR | ||||
| 6:1/2"O.D. | 9: 1/2"O.D. | HE | |||||
| Air | |||||||
FAQ
Q: Are you trading company or manufacturer?
A: We are original manufacturer. We can do OEM/ODM business.Our company mainly produces Pressure Regulator.
Q: How long is your delivery time?
A: Group buying delivery time: 30-60 days; General delivery time: 20 days.
Q: What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery.
Q: What is the warranty ?
A: The free warranty is one year from the day of Commissioning qualified.If there is any fault for our products within the free warranty period, we will repair it and change the fault assembly for free.
