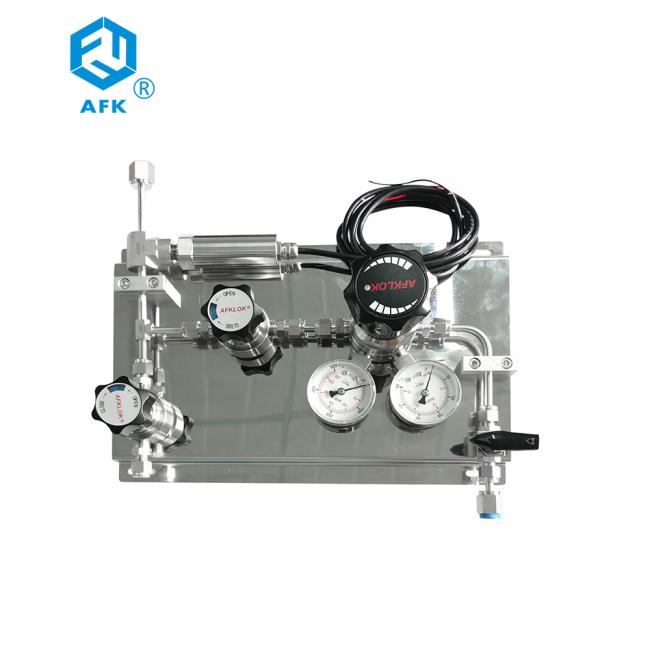

Stainless Steel 316 Gas Cylinder Regulator High Pressure For Nitrogen Hydrogen Argon
AFK Single Stage Gas Supply High Pressure Nitrogen/Hydrogen/Argon Gas Stainless Steel Gas Cylinder Regulator Industrial

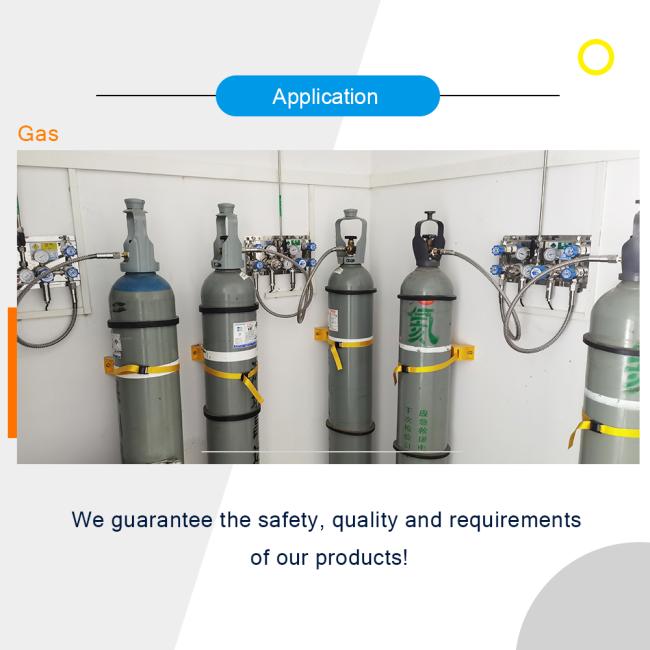

It is used in the double-sided high-pressure gas cylinder to reduce the pressure supply. It can be continuously switched on both sides to achieve continuous gas supply and purge function. The maximum input pressure can reach 20.7Mpa(3000psi), corrosion resistance, clean shop assembly test, gas analysis Such as high purity gas.
| Product Description | ||
| 1 | Maximum Inlet Pressure | 500,3000psig |

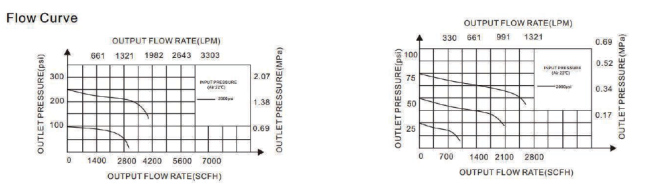

| 2 | Outlet Pressure | 0~25, 0~50, 0~50,0~250,0~500psig |
| 3 | Operating Temperature | -40°F to 165°F / -40°c to 74°c |
| 4 | Leakage Rate Against Atmosphere | 2*10-8atm cc/sec he |
| 5 | Cv value | 0.14 |
Materials of Construction
| 1 | Body | stainlees steel |
| 2 | Seat | PU,PTFE,PCTFE |
| 3 | Inlet Connection | 1/4"tube fitting,1/4FSR,1/2:FSR |
| 4 | Outlet Connection | 1/4"tube fitting,1/4"FSR |
| 5 | Body of Diaphragm Valve | stainless steel |
Features of Single Stage Gas Supply High Pressure Gas Cylinder Regulator
| 1 | Pressure regulator for special gas |
| 2 | Equipped relief pressure valve |
| 3 | Pressure regulator and pipe through the pressure test and leakage test |
| 4 | 2" stainless steel pressure gauge,reading clearly |
| 5 | The knob of diaphragm valves with on/off logo |
Ordering Information
| WL1 | 1 | 1 | 1 | S | H | 1 | 1 | -N2 |
| Series | Function Options | Outlet Connection | Inlet Connection | Body Material | Input Pressure | Output Pressure | Gauge | Gas Options |
| WL1 Series single side gas supply high pressure regulator system | 1.with emptying,purging distribution function | 1.1/4"NPT(F) | 1.1/4"Welding | S:stainless steel | H:3000psi | 1:25psi | 1.MPa | blank:none |
| 2.without emptying,purging distribution function | 2.1/4"tube fitting | 2.1/4"NPT(M) | C:nickel plated brass | M:2200psi | 2:50psi | 2.Bar/psi | N2:nitrogen | |
| 3.emptying,purging distribution+pressure sensor | 3.3/8"NPT(F) | 3.3/8"Welding | L:1000psi | 3:100psi | 3.psi/KPa | O2:oxygen | ||
| 4.with pressure sensor | 4.3/8"tube fitting | 4.3/8"NPT(M) | O:other | 4:150psi | 4.other | H2:hydrogen | ||
| 5.Others | 5.1/2"NPT(F) | 5.1/2"Welding | 5::250psi | C2H2:acetylene | ||||
| 6.1/2"tube fitting | 6.1/2"NPT(M) | 6:other | CH4:methane | |||||
| 7.Other | 7.1/4"tube fitting | Ar:argon | ||||||
| 8.3/8"tube fitting | He:helium | |||||||
| 9.1/2"tube fitting | Air:air | |||||||
| 10.Other |
FAQ
Q. Are you manufacturer?
A. Yes, we are manufacturer.
Q.What is lead time?
A.3-5days. 7-10 days for 100pcs
Q. How do I order?
A.You can order it from Alibaba directly or send us a inquiry. We will reply you within 24 hours
Q. Do you have any certificates?
A. We have CE certificate.
Q. What materials do you have?
A.aluminium alloy and chrome plated brass are available. The picture shown is chrome plated brass. If you need other material, pls contact us.
Q. How do I confirm inlet connnection for cylidner?
A. Pls check cylinder type and confirm it. Normally, it is CGA5/8 male for Chinese cylinder. Other cylidner adapter are also available e.g CGA540, CGA870 etc.
Q. How many types for connecting cylinder?
A.Down way and side way. (you can choose it)
