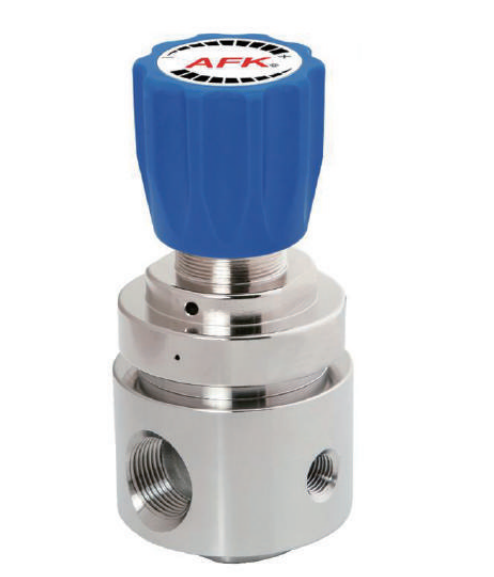

AFK 1000psi Nitrogen High Pressure Regulator 316L Stainless Steel Dual Gauge
AFK Stainless Steel Dual Gauge Nitrogen High Pressure Regulator 1000psi
Product Technical Parameters
1) Single -stage pressure-reducing Structure.
2) Metal-to-metal diaphragm seal.
3) Body Thread : input & output connection 3/4" NPT ( F )
4) Gauge and safety valve connection: 1/4" NPT ( F )
5) Filter element installed internally
6) Panel mountable or wall mounting available
7)Easy to clean internal structure
Material List
1) Max. Inlet Pressure: 500, 1500 psi
2) Outlet Pressure: 0~15, 0~25, 0~75, 0~125 Psi
3) Proof Pressure: 1.5 times of maximum rated pressure
4) Working Temperature: -40°F-+165°F(-40°C-+74°C)
5) Leakage Rate: 2*10-8 atm cc/sec He
6) CV: 1.8
7) Body Thread: 1/4" NPT ( F )

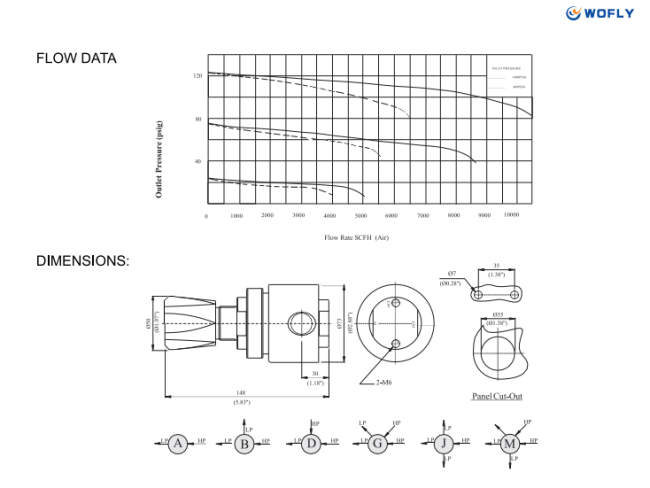

Flow chart
Ordering and Selection Guide
| R13 | L | B | E | H | G | 04 | 04 | P |
| Item |
Body Materia |
Body hole |
Inlet pressure |
Outlet pressure | Pressure gauge | Inlet size | Outlet size | Options |
| R13 | L:316 | A | E:1500psi | H:0~125psig | G:MPa gauge | 04:1/2”NPT(F) | 04:1/2”NPT(F) | P:Panel mounting |
| B:Brass | B | F:500psi | J:0~75psig | P:Psig/bar gauge | 05:1/2”NPT(M) | 05:1/2”NPT(M) | R:With relief valve | |
| D | L:0~25psig | W:No gauge | 06:3/4”NPT(F) | 06:3/4”NPT(F) | ||||
| G | M:0~15psig | 13:1/2”OD | 13:1/2”OD | |||||
| J | 14:3/4”OD | 14:3/4”OD | ||||||
| M | Other type is available | Other type is available |

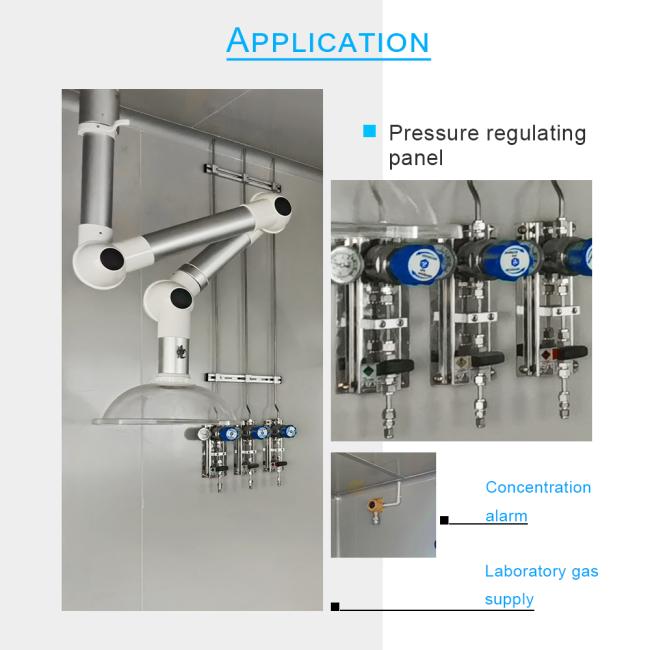

Application Area
FAQ
Q: Are you trading company or manufacturer?
A: We are original manufacturer. We can do OEM/ODM business.Our company mainly produces Pressure Regulator.
Q: How long is your delivery time?
A: Group buying delivery time: 30-60 days; General delivery time: 20 days.
Q: What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery.
Q: What is the warranty ?
A: The free warranty is one year from the day of Commissioning qualified.If there is any fault for our products within the free warranty period, we will repair it and change the fault assembly for free.
Q: How can I get your catalogue and price list?
A: Please let us know your email or contact us from website directly for our catalogue and price list;
Q: Can I negotiate the prices?
A: Yes, we may consider discounts for multiple container load of mixed goods.
Q: How much will the shipping charges be?
A: It depends on the size of your shipment and the method of shipping.
We will offer the charge to you as you requested.
