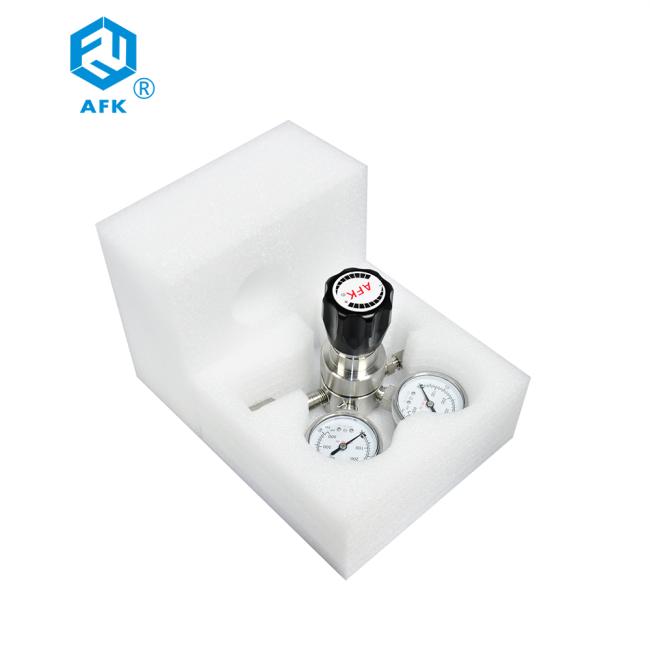

R11 Stainless Steel Double Gauge 600psi Nitrogen Pressure Regulator For High Purity Gas
R11 Series stainless steel pressure regulator is Single stage diaphragm, vacuum structure Stainless diaphragmoutput. It has piston pressure reducing structure, constant outlet pressure,mainly used for high input pressure,suitable for purified gas, standard gas, corrosive gas etc.
1. The gas stored in the cylinder is depressurized by the pressure reducer to reach the required working pressure.
2. The high and low pressure gauges of the pressure reducer indicate the high pressure in the bottle and the working pressure after decompression.
3. The pressure of the gas in the pressure stabilizing cylinder decreases gradually with the consumption of the gas, while the working pressure of the gas is required to be relatively stable in gas welding and gas cutting. The stainless steel pressure reducer can ensure the stable output of gas working pressure, so that the working pressure delivered from the low-pressure chamber will not change with the change of high-pressure gas pressure in the cylinder.
DESIGN FEATURES
| Material List | ||
| 1 | Body | SS316L, brass, nickel plated brass ( Weigh :0.9kg) |
| 2 | Cover | SS316L, brass, nickel plated brass |
| 3 | Diaphragm | SS316L |
| 4 | Strainer | SS316L(10um) |
| 5 | Valve Seat | PCTFE,PTFE,Vespel |
| 6 | Spring | SS316L |
| 7 | Plunger Valve Core | SS316L |
| Technical Data | ||
| 1 | Maximun Input Pressure | 500,3000 psig |
| 2 | Output Pressure Range | 0~25, 0~50, 0~100, 0~250, 0~500 psig |
| 3 | Safety Testing Pressure | 1.5 times of maximum input pressure |
| 4 | Working Temperature | -40°F~ +165°F (-40°C~ +74°C ) |
| 5 | Leakage Rate | 2×10-8 atm cc/sec He |
| 6 | CV Value | 0.08 |
| R11 | L | B | D | F | G | 00 | 00 | P |
| Item |
Body Materia |
Body Hole |
Inlet pressure |
Outlet pressure |
Pressure gauge | Inlet size | Outlet size | mark |
| R11 | L:316 | A | D:3000 psi | F:0-500 psi | G:MPa gauge | 00:1/4 " NPT (F) | 00: 1/4 " NPT(F) | P:Panel mounting |
| B:Brass | B | E:2200 psi | G:0-250 psi | 01:1/4 " NPT (M) | 01: 1/4 " NPT(M) | N:Needle valve | ||
| D | F:500 psi | l:0-100 psi | P:Psig/bar gauge | 23: CGA330 | 10:1/8 " OD | N:Needle valve | ||
| G | K:0-50 psi | 24: CGA350 | 11:1/4 " OD | D:Diaphragm valve | ||||
| J | L:0-25 psi | W:No gauge | 28: CGA660 | 12:3/8 " OD | ||||
| M | 28: CGA660 | 15:6mm OD | ||||||
| 30: CGA590 | 16:8mm OD | |||||||
| 52: G5/8 "-RH(F) | ||||||||
| 63: W21.8-14H(F) | ||||||||
| 64: W21.8-14LH(F) |
FAQ
1. who are we?
We are based in Guangdong, China, start from 2011,sell to Southeast Asia(20.00%),Africa(20.00%),Eastern Asia(10.00%),Mid East(10.00%),Domestic Market(5.00%),South Asia(5.00%),Northern Europe(5.00%),Central America(5.00%),Western Europe(5.00%),South America(5.00%),Eastern Europe(5.00%),North America(5.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
pressure regulator,Tube fittings,solenoid valve,Needle valve,check valve
4. why should you buy from us not from other suppliers?
We have a couple of years with professional engineers and dedicated technicians.can provide security products for you
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,Western Union;
Language Spoken:English,Chinese
