High Flow Stainless Steel Pressure Regulator For Oxyen Acetlene Propane Nitrogen Co2
High Flow Stainless Steel Pressure Regulator For Oxyen Acetlene Propane Nitrogen Co2
Features
1. Single stage diaphragm structure
2. Corrugated diaphragm design has excellent sensitivity and service life
3. It can be used for corrosive and toxic gases
4. Install a 20 micron filter element at the inlet
5. Oxygen environment application options are available
The following pictures are for reference only. For details, you need to contact the customer service personnel to select the appropriate connector and place an order. The direct order of this product does not include the connector, but only the valve body and two tables.
SPECIFICATION
1.Max inlet pressure : 500,3000 psig
2.Outlet pressure : 0~25, 0~50, 0~100,0~250,0~500 psig
3.Proof pressure:1.5 times of maximum rated pressure
4.Working tem:-40°F ~+446°F (-40*C~+230°C)
5.Leakage rate:2*10-8 atm cc/sec He
6.Cv :0.08
MATERIAL
1.Body:316L, Brass
2.Roof:316L, Brass
3.Diaphragm:316L
4.Filter mesh:316L(10μ m)
5.Valve seat:PCTFE,PTFE,Vespel
6.Spring loaded:316L
7.Valve disc regulation pole:316L

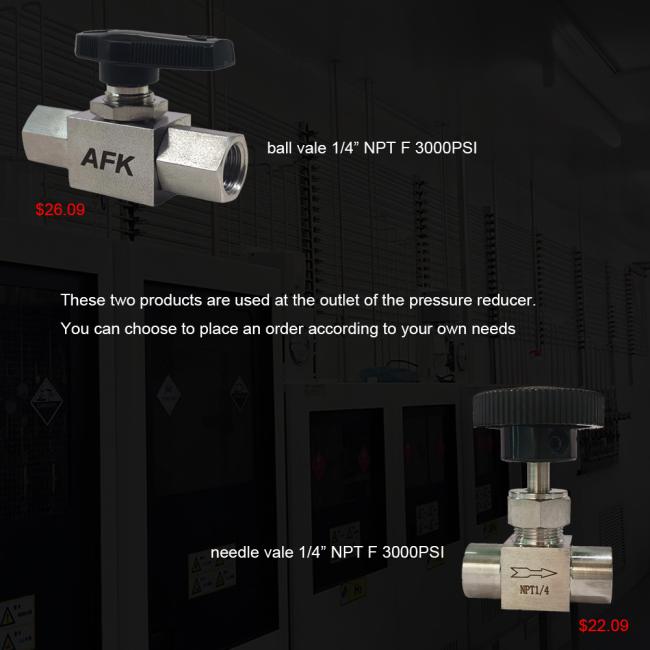

The high-pressure and low-pressure gauges choose a larger pressure gauge according to the actual pressure. The air inlet and outlet connectors can also be selected according to their own needs, and the ball valve and needle valve can also be selected as the air outlet end
ORDERING INFORMATION
| R11 | L | B | D | F | G | 00 | 00 | P |
| Item | Body Materia | Body Hole | Inlet pressure | Outlet pressure | Pressure gauge | Inlet size | Outlet size | mark |
| R11 | L:316 | A | D:3000 psi | F:0-500 psi | G:MPa gauge | 00:1/4 " NPT (F) | 00: 1/4 " NPT(F) | P:Panel mounting |
| B:Brass | B | E:2200 psi | G:0-250 psi | 01:1/4 " NPT (M) | 01: 1/4 " NPT(M) | N:Needle valve | ||
| D | F:500 psi | l:0-100 psi | P:Psig/bar gauge | 23: CGA330 | 10:1/8 " OD | N:Needle valve | ||
| G | K:0-50 psi | 24: CGA350 | 11:1/4 " OD | D:Diaphragm valve | ||||
| J | L:0-25 psi | W:No gauge | 28: CGA660 | 12:3/8 " OD | ||||
| M | 28: CGA660 | 15:6mm OD | ||||||
| 30: CGA590 | 16:8mm OD | |||||||
| 52: G5/8 "-RH(F) | ||||||||
| 63: W21.8-14H(F) | ||||||||
| 64: W21.8-14LH(F) |
FAQ
1. who are we?
We are based in Guangdong, China, start from 2011,sell to Southeast Asia(20.00%),Africa(20.00%),Eastern Asia(10.00%),Mid East(10.00%),Domestic Market(5.00%),South Asia(5.00%),Northern Europe(5.00%),Central America(5.00%),Western Europe(5.00%),South America(5.00%),Eastern Europe(5.00%),North America(5.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
pressure regulator,Tube fittings,solenoid valve,Needle valve,check valve
4. why should you buy from us not from other suppliers?
We have a couple of years with professional engineers and dedicated technicians.can provide security products for you
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,Western Union;
Language Spoken:English,Chinese
