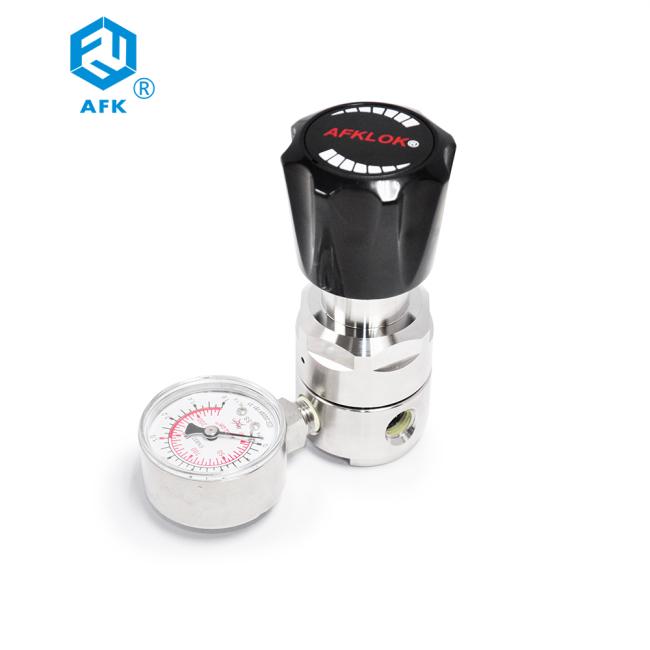

Adjustable Gas Stainless Steel Pressure Regulator Low Pressure 1.6MPa For Helium Nitrogen
The single gauge pressure of R11 pressure regulator of this picture product is 1.6Mpa, which is equivalent to the pressure of 200psi, and the actual gas pressure shall not exceed 200psi, that is, 1.6Mpa
Features
1. Single stage diaphragm structure
2. The corrugated diaphragm design has excellent sensitivity and life
3. It can be used for corrosive and toxic gases
4. A 20 micron filter element can be installed at the inlet
5. Provide oxygen environment application options
Technical Data
1. Maximum inlet pressure: 600psi or 3500psi
2. Outlet pressure range: 0 ~ 30,0 ~ 60,0 ~ 100,0 ~ 150,0 ~ 250,0 ~ 500
3. Material of internal components:
Valve seat: PCTFE
Diaphragm: Hastelloy
Filter element: 316L
4. Working temperature: - 40 ℃ ~ + 74 ℃ (- 40 ℉ ~ + 165 ℉)
5. Leakage rate (helium)
Internal: ≤ 1x10-7 mbar L / S
External: ≤ 1x10-9 mbar L / S
6. Flow coefficient (CV):
3500psi inlet pressure: CV = 0.09
600psi inlet pressure: CV = 0.2
7. Parent port:
Inlet: 1 / 4 "NPT
Outlet: 1 / 4 "NPT
Pressure gauge port: 1 / 4 "NPT
ORDERING INFORMATION
| R11 | L | B | D | F | G | 00 | 00 | P |
| Item |
Body Materia |
Body Hole |
Inlet pressure |
Outlet pressure |
Pressure gauge | Inlet size | Outlet size | mark |
| R11 | L:316 | A | D:3000 psi | F:0-500 psi | G:MPa gauge | 00:1/4 " NPT (F) | 00: 1/4 " NPT(F) | P:Panel mounting |
| B:Brass | B | E:2200 psi | G:0-250 psi | 01:1/4 " NPT (M) | 01: 1/4 " NPT(M) | N:Needle valve | ||
| D | F:500 psi | l:0-100 psi | P:Psig/bar gauge | 23: CGA330 | 10:1/8 " OD | N:Needle valve | ||
| G | K:0-50 psi | 24: CGA350 | 11:1/4 " OD | D:Diaphragm valve | ||||
| J | L:0-25 psi | W:No gauge | 28: CGA660 | 12:3/8 " OD | ||||
| M | 28: CGA660 | 15:6mm OD | ||||||
| 30: CGA590 | 16:8mm OD | |||||||
| 52: G5/8 "-RH(F) | ||||||||
| 63: W21.8-14H(F) | ||||||||
| 64: W21.8-14LH(F) |
FAQ
Q. Are you manufacturer?
A. Yes, we are manufacturer.
Q.What is lead time?
A.3-5days. 7-10 days for 100pcs
Q. Do you have any certificates?
A. We have CE certificate.
Q. What materials do you have?
A. aluminium alloy and chrome plated brass are available. The picture shown is chrome plated brass. If you need other material, pls contact us.
Q. What is maximum inlet pressure?
A.3000psi (about 206bar)
Q. How do I confirm inlet connnection for cylidner?
A. Pls check cylinder type and confirm it. Normally, it is CGA5/8 male for Chinese cylinder. Other cylidner adapter are also
available e.g CGA540, CGA870 etc.
Q. How many types for connecting cylinder?
A. Down way and side way. (you can choose it)
Q. What is product warranty?
A: The free warranty is one year from the day of Commissioning qualified.If there is any fault for our products within the free warranty period, we will repair it and change the fault assembly for free.
