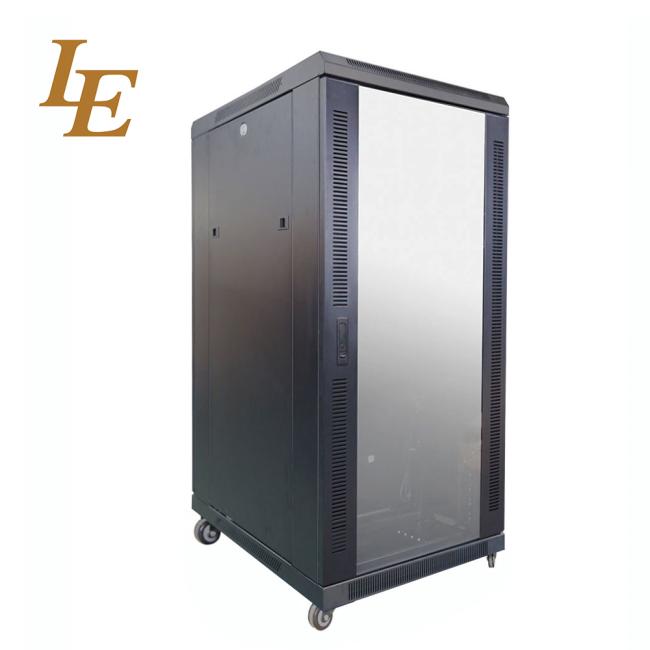

SPCC Cold Rolled Steel 600x800mm 27u Network Equipment Cabinet
office server rack
| S/N | LE-NA |
| Standard | Comply with ANS/EIA RS-310-D |
| IEC297-2, DIN41491, PART1 | |
| PART7, ETSI Standard | |
| Material | SPCC quality cold rolled steel |
| Mounting profile: thickness: 2.0mm, others 1.2mm | |
| Tempered glass thickness: 5mm | |
| Loading capacity | 800kg(on the adjustable feet) |
| Degree of protection | IP20 |
| Surface Finish | Degreasing, pickling, phosphating, powder coated |
| Product specification | 18-47U |
| Width: 600mm,800mm | |
| Depth: 600mm, 800mm, 1000mm, 1200mm |

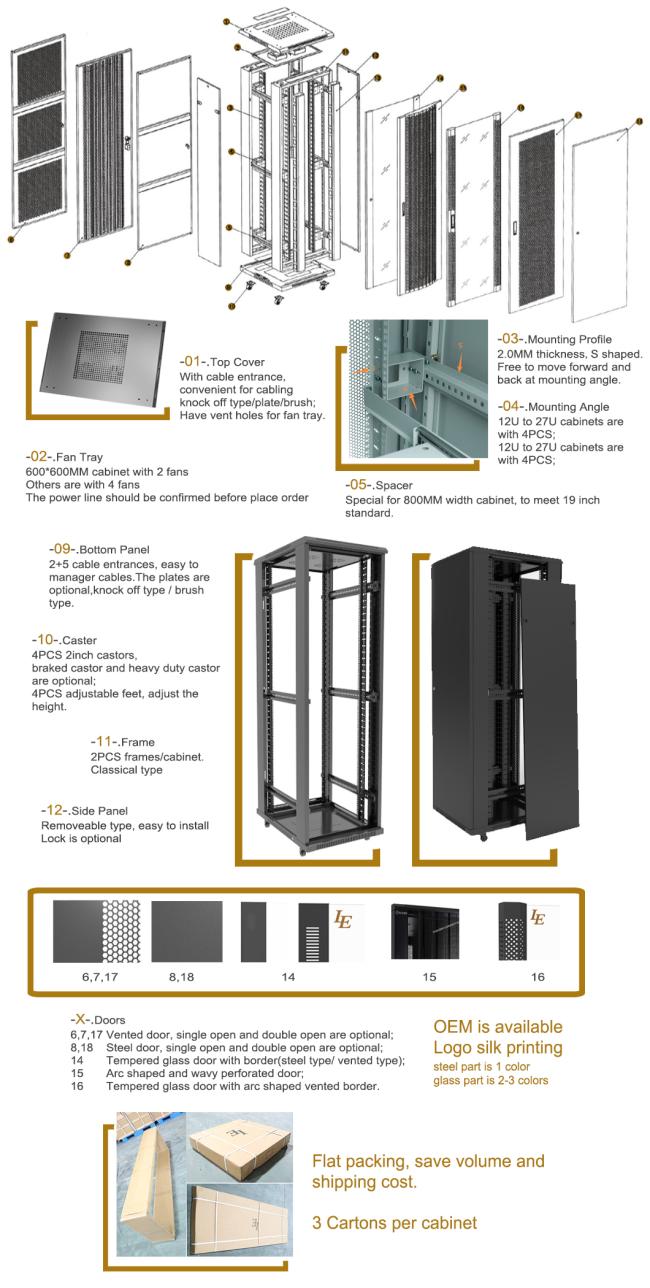

General Description:
1. Vented front and rear door with excellent ventilation rate above 70%;
2. Removable side panels with lock optional;
3. Adjustable cable entry on the top and bottom cover;
4. Welded steel frame for front and back part, flat packing is available;
5. S-shaped mounting profile, free to move forward and back;
6. Various optional accessories for common using;
office server rack

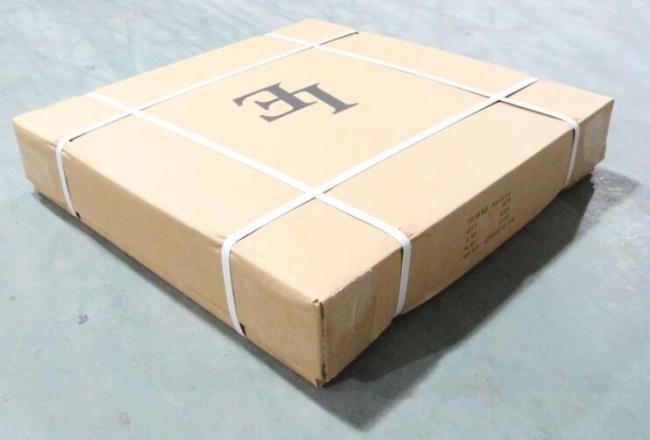

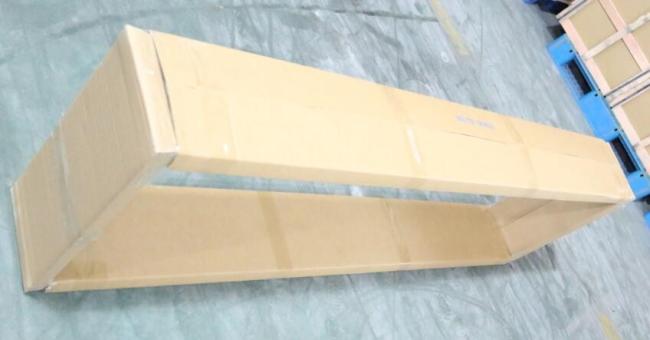

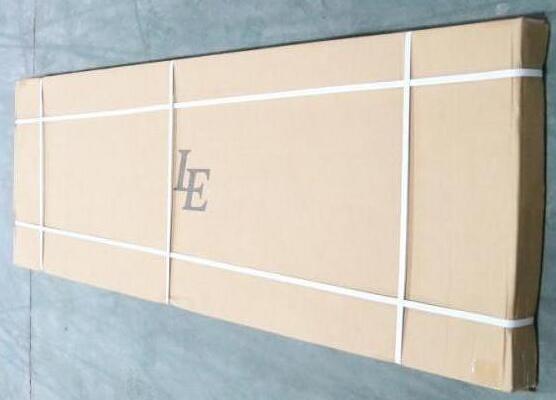

FLAT PACKING IN 3 PACKAGES AS FOLLOWS:
 |
BOX including :
top cover(1pcs), bottom panel(1pc), 2 fans/4 fans at top, Mounting angle(6pcs),panel for bottom cable entrance(5pcs), four adjustable Feets, screws and nuts(25sets)/ side panel locks with keys/ front door lock and key,rear door lock and key,4 castors |
 |
Box including:
frames (2pcs),mounting profile(4pcs)
|
 |
Box including:
front glass door(1pcs), |
1.Q:Are you a factory or trading company?
A: We are a Factory, Distributor and Trading Company.
2.Q:Where is your factory located? How can I visit there?
A:Our factory and office is located in Ningbo City, China.
You can fly to Ningbo airport or Shanghai airport, from home or abroad,
Warmly welcome to visit us!
3.Q: Can you do OEM?
A: Yes, we can do OEM products. It's no problem.
4.Q:How can I get some samples?
A:We are honored to offer you samples.
5.Q:How does your factory do regarding quality control?
A:Quality is priority.We always attach great importance to quality
controlling for to the very end. Our factory has gained
CE,ROHS,SGS authentication.
