The IPC704 244-704-000-042 is a high-performance signal conditioner designed to convert charge signals from piezoelectric transducers into standard, interference-resistant current or voltage signals.

This signal conditioner eliminates the need for expensive low-noise cables by providing stable and reliable signal support for industrial environments. It reduces costs and improves efficiency, enabling businesses to achieve high returns at low cost.

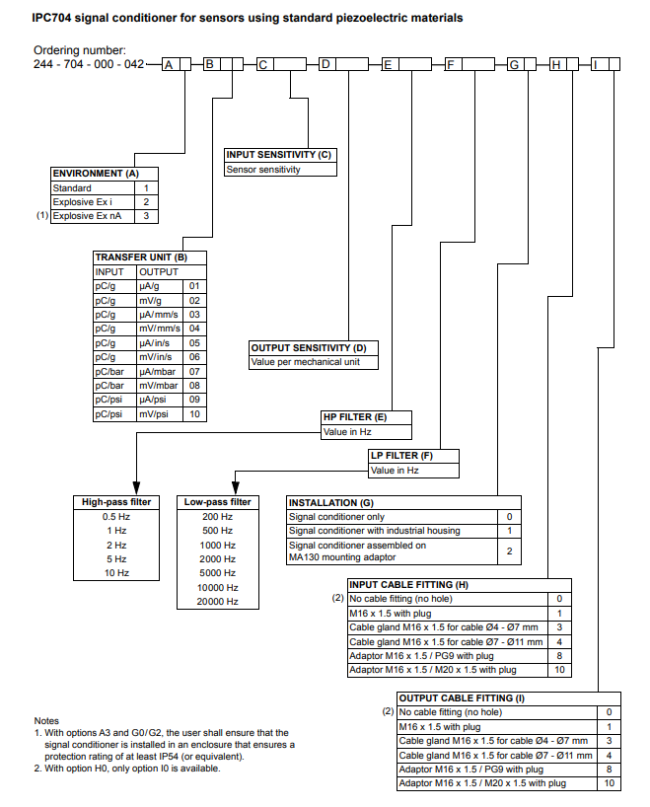

Ordering number: IPC704 244-704-000-042 A_-B__-C_-D_-E_-F_-G_-H_-I_

• A [Environment / Explosion-proof]: 1 = Standard; 2 = Ex i; 3 = Ex nA (Zone 2 only)
• B [Conversion units]: 01-02 Acceleration; 03-06 Velocity; 07-10 Pressure
• C [Input Sensitivity]: Matches sensor pC/g, pC/psi, pC/bar
• D [Output Sensitivity]: mV/mechanical unit or µA/mechanical unit
• E [High-Pass HP]: 0.5/1/2/5/10 Hz
• F [Low-Pass LP]: 200-20000 Hz
• G [Mounting Type]: 0 = Standard housing; 1 = IP66 industrial housing; 2 = DIN rail
• H [Input Cable Connector]: M16×1.5 series, bore diameter matches cable outer diameter
• I [Output Cable Connector]: Same series as H; H0 can only be paired with I0

In a vibration monitoring project for gas turbine compressor units at a natural gas compression station, the IPC704 244-704-000-042 was used to convert charge signals from piezoelectric accelerometers into standard current signals. This enabled stable transmission over 600 meters within an explosion-proof zone, allowing precise monitoring of bearing and rotor failures to ensure safe and continuous operation.
