MC4 Solar PV Connectors Panel Mount with Female and Male Plug for New Energy Solutions

Price Negotiable

Price: Negotiable

MOQ: 100 PCS

Delivery Time: 5-8 days for the samples, 15-25 days for bulk

Brand: RITIAN

Product Description

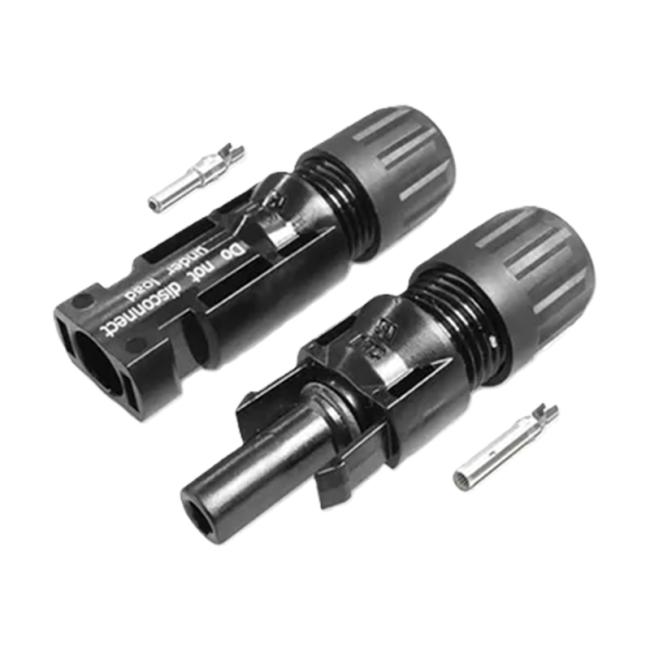

MC4 Solar PV Connectors Panel Mount with Female and Male Plug for New Energy Solutions

MC4 Connector definition

MC4 solar pv connectors are an essential component of photovoltaic systems, primarily used to connect solar panels to one another, as well as to inverters or combiner boxes.

Main Advantage

Plug and Play: Simple installation; quick assembly without the need for complex tools.
Weatherproof: Exceptionally designed for outdoor use with a lifespan of over 20 years.
Security: Features a self-locking latch design to prevent accidental disconnection due to force or vibration, thereby eliminating the risk of arcing.

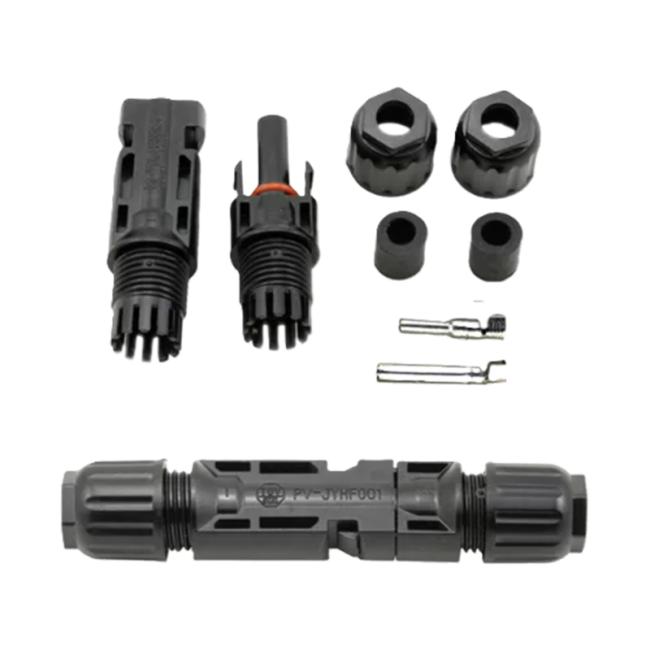

Note: If you need to assemble these components onto cables, be sure to use professional MC4 crimping pliers to ensure reliable contact under high current conditions.

Technical Specification

Parameter	Specification
Product Model	PV-RT014
Wire Size Range	5mm² (approx. 10-12AWG)
Current Rating	30A
Voltage Rating	$12V - 24V$ (System up to $1000V/1500V$ )
Contact Material	Copper, Tin plated
Insulation Material	PPO / PC
Waterproof Resistant	IP68
Safety Class	Class II
Temperature Range	$-40°C$ to $+90°C$
Locking System	Snap-in

Application Scenarios

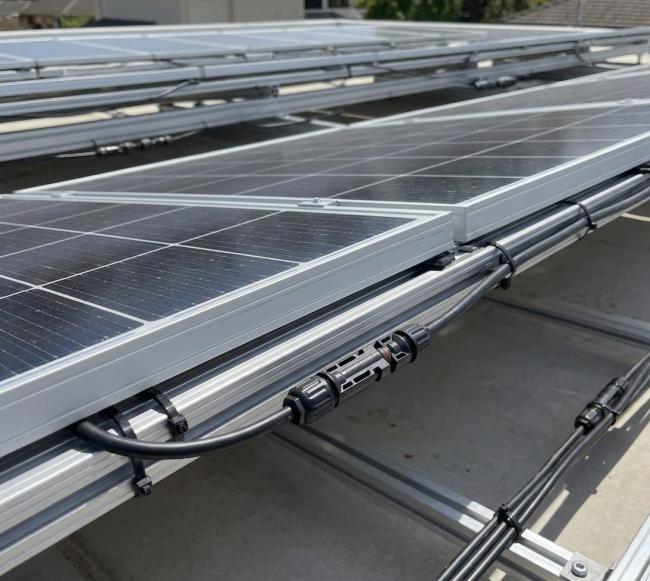

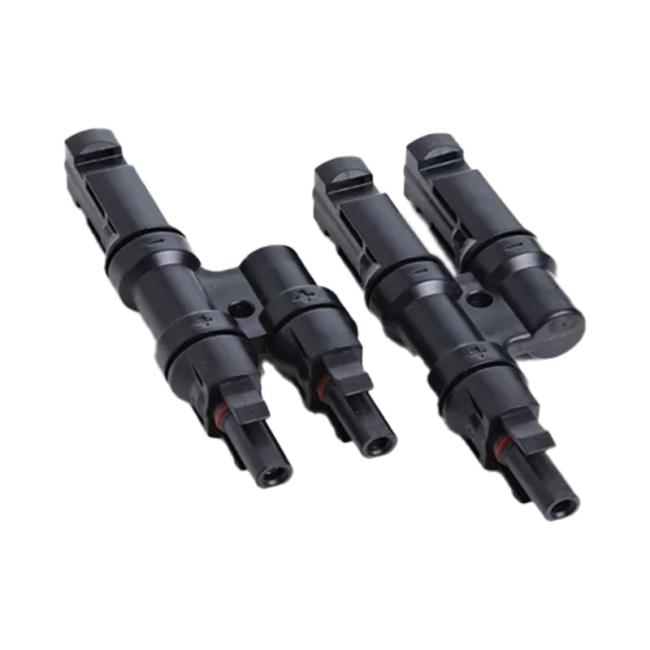

Solar Array Wiring: Designed to connect multiple solar panels in series (to increase voltage) or in parallel (to increase current), forming a complete solar power array.

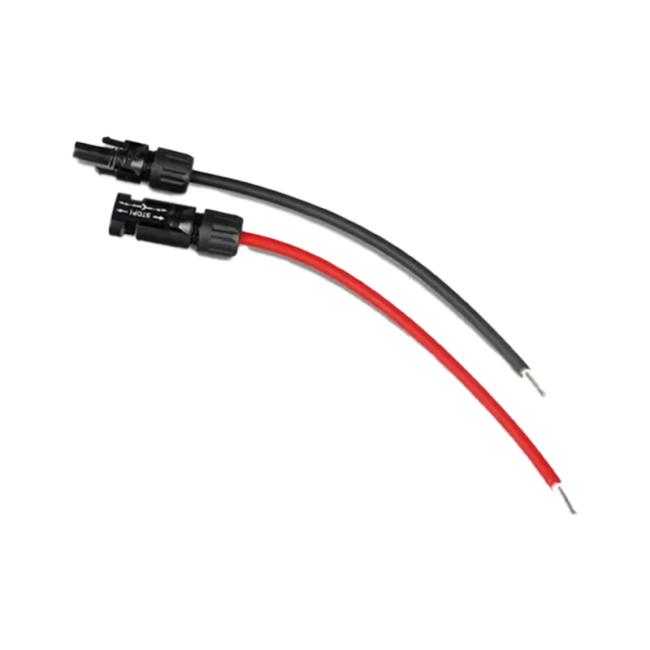

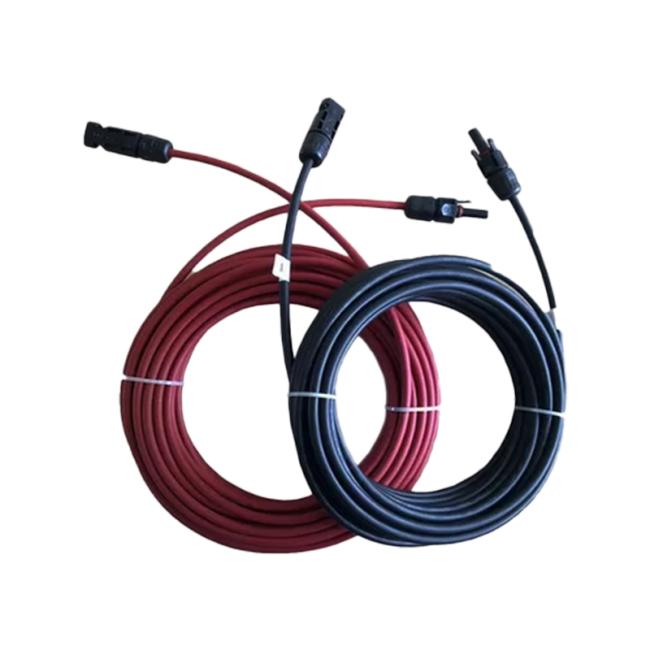

Energy Storage Systems: As refer to the specification chart above, cable is commonly used to connect solar panels to portable power stations (outdoor power sources), battery banks, or controllers.
Inverter Connection: Transfers DC power from the solar array to the DC input of the inverter, where it is converted to AC power for household use or grid connection.
RV & Marine Solar: Because of their corrosion-resistant and waterproof properties, these cables are widely used for installing solar panels on RV roofs and boat decks.

FQA:

Low MOQ: It can meet your business very well.
Great after-services: We treat you as our friends.
Packaging: Package will do after several discussions with you.

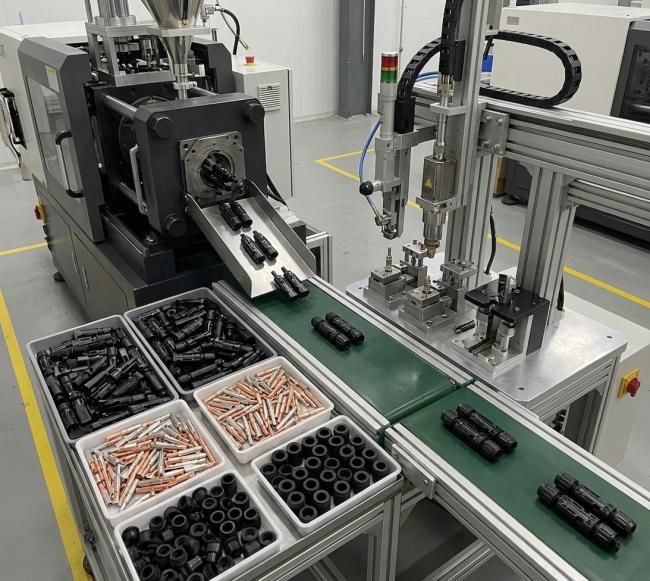

Competitve price: The products are directly from our factory. So it saves a lot secondary cost.
Good quality: The MP only will start after you confirm the samples and the MP products will do 100% inspection before shipping.
OEM accepted: Please send us your design and other important information. OEM are always welcome.
