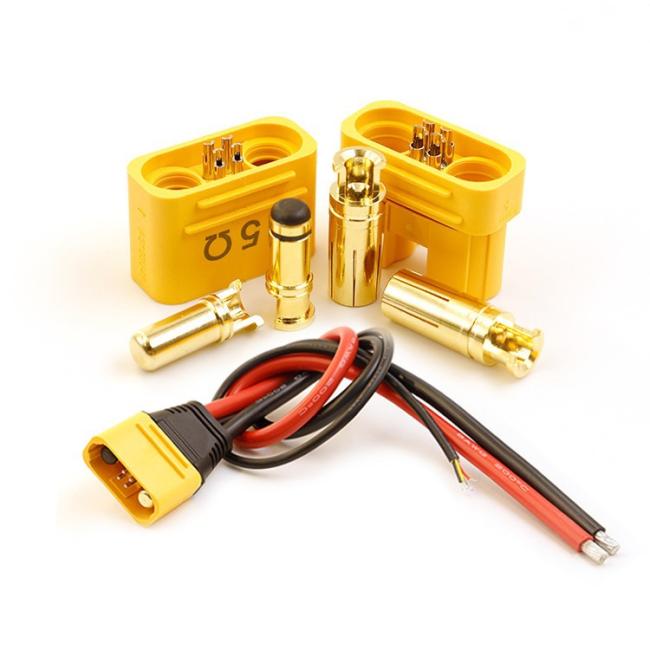

Product Definition

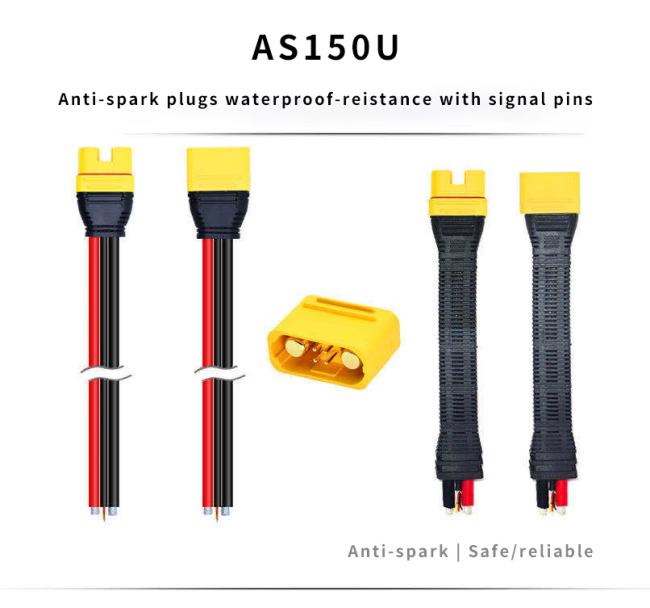

The AS150U Anti-Spark Battery Connector is a high-current power connector engineered for safe and reliable connections in battery-powered systems. Its built-in anti-spark technology prevents electrical arcing and sparks during connection and disconnection under load, protecting electronics and extending service life.
Keywords/tags
#AS150U connector
#Anti-spark battery connector
#AS150UPB-M
#70A power connector
#Gold plated connector
#Drone battery connector
#UAV power connector
#High current battery plug
#RC battery connector
#Electric motorcycle connector
#Anti-spark power plug
#8AWG connector
Key Features & Benefits
- Anti-spark technology – Safely connects/disconnects under load without arcing or damage
- High current capacity – 70A continuous / 140A peak with minimal heat buildup

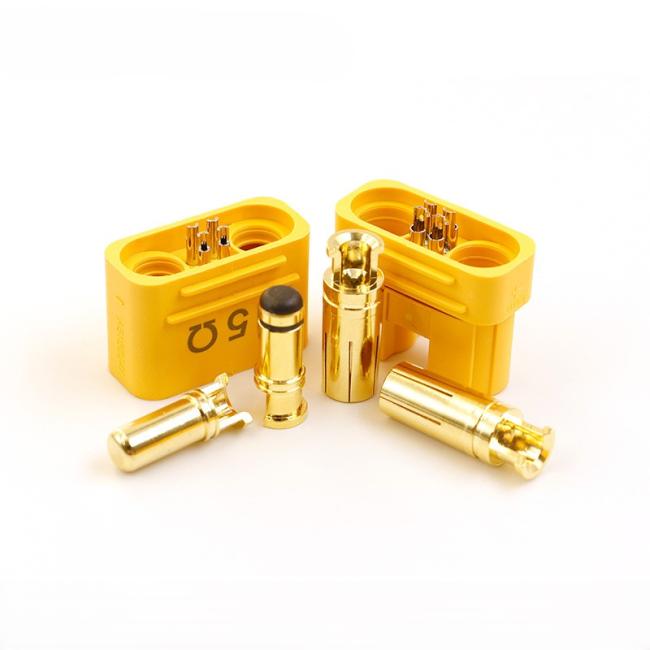

- Superior conductivity – Gold-plated brass contacts ensure ultra-low 0.40mΩ resistance and corrosion resistance
- Robust & safe – UL94 V0 flame-retardant PA66 housing and 1000+ mating cycles
- Wide temperature range – Reliable performance from -20°C to 120°C
- Easy installation – Supports 8AWG cables with simple welding and 3-5kg insertion force
- Professional grade – Ideal for high-reliability power systems in drones, e-mobility, and industrial applications

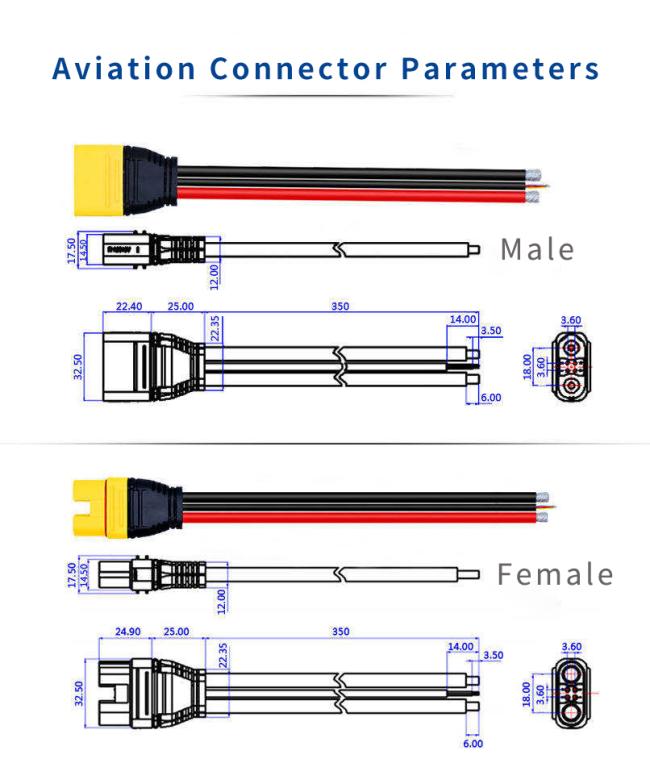

AS150UPB-M Parameters
| Parameter | Specification |

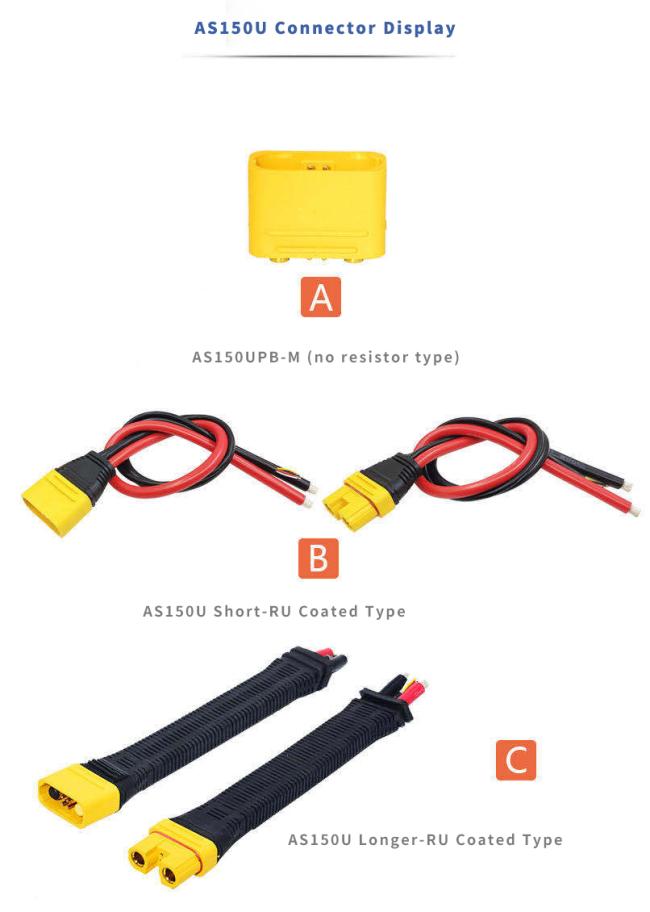

| Product Model | AS150UPB-M |
| Color | Yellow |
| Metal Material | Brass Gold Plated |
| Plastic Material | PA66 |
| Flame Retardant Level | UL94 V0 |
| Recommended Use | Battery |
| Contact Resistance | 0.40mΩ |
| Rated Voltage | < DC50V |
| Rated Current | 70A |
| Instantaneous Current | 140A |
| Mating Cycles | 1000 times |
| Cable Specification | 8AWG / 24AWG |
| Insertion Force | 3-5kg |
| Temperature Rise | 70A < 70°C (1 hour) |
| Operating Temperature | -20°C to 120°C |
| Certification | / |
| Weld Metal | Main copper 3.3 mm, signal pin 2.5 mm |
Scenario Applications
- High-power drone / UAV battery systems (main power link)
- Electric motorcycles and e-scooters (battery pack connections)
- RC hobby vehicles, cars, and boats
- Portable power stations and solar energy storage
- Industrial battery packs and backup power systems
- Any high-current DC application requiring safe hot-plugging
